5/16" H7TLNC by Couplamatic | Twin Line Non-Conductive | Thermoplastic Hydraulic Hose | Polyester Braid | SAE 100R7 | 5/16" ID | 250ft
Package Quantity: 250 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R7 — Twin Line, Non-Conductive

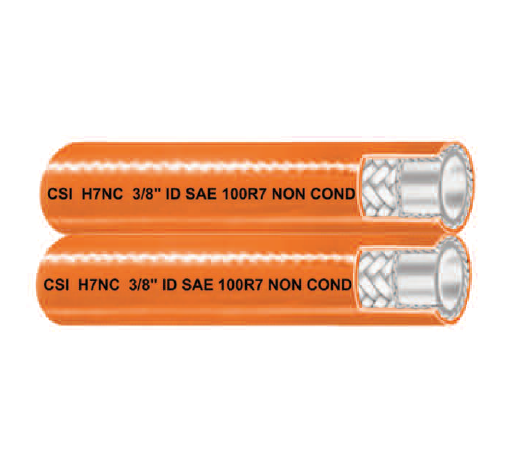

H7TLNC Twin Line Non-Conductive Thermoplastic Hydraulic Hose
Bonded twin line SAE 100R7 hose with an orange non-conductive polyurethane cover — paired supply and return for utility booms and aerial equipment.
1
What is this hose used for?
- Medium Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R7
Cover
Orange Non-Conductive Polyurethane, Non-Perforated
Tube
Nylon
Reinforcement
Polyester Braid
Temperature
-40°F to +212°F (-40°C to +100°C)
Size Range
1/4" to 1/2"
3
What are the main product features?
- Non-conductive cover — orange polyurethane, non-perforated, for work near energized conductors.
- Bonded twin line — supply and return stay paired and tangle-free.
- Nylon tube, polyester braid — medium pressure hydraulic service.
- High visibility orange — the standard identification color for non-conductive hose.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Coil Footage |
|---|---|---|---|---|---|---|---|
| 1/4" H7TLNC | 1/4" | 0.508" | 2,750 lbs. | 11,000 lbs. | 1.5" | 12 lbs. | 250ft |
| 5/16" H7TLNC | 5/16" | 0.585" | 2,500 lbs. | 10,000 lbs. | 1.75" | 16.6 lbs. | 250ft |
| 3/8" H7TLNC | 3/8" | 0.650" | 2,250 lbs. | 9,000 lbs. | 2" | 21 lbs. | 250ft |
| 1/2" H7TLNC | 1/2" | 0.815" | 2,000 lbs. | 8,000 lbs. | 3" | 34 lbs. | 250ft |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
2500
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Compatible Series:
