4SH80-32x32 by Couplamatic | Grip Crimp 4SH Series Coupling Flange | 2" Hose ID x 2" Extra Heavy Duty Flange Size | Straight | Trivalent Zinc Plating | for use on Caterpillar® Equipment
Couplamatic

4SH80-32x32 by Couplamatic | Grip Crimp 4SH Series Coupling Flange | 2" Hose ID x 2" Extra Heavy Duty Flange Size | Straight | Trivalent Zinc Plating | for use on Caterpillar® Equipment

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

4SH Series — Extreme Pressure No-Skive

4SH80 Grip Crimp 4SH Series Coupling — Straight, for Caterpillar Equipment

4SH80 is the Straight, for Caterpillar Equipment configuration of the Grip Crimp 4SH Series, terminating 1-1/4" through 2" 4SH extreme pressure spiral hose and CS-Flex 5 reduced bend radius hose.

1

What are the main product features?
  • The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • NO SKIVE REQUIRED — terminates 4SH spiral hose with the cover left intact.
  • Extreme pressure service — matched to 4SH hose in 1-1/4" through 2".
  • Also fits CS-Flex 5 — the 1-1/4" and 1-1/2" high pressure reduced bend radius hose.
2

Which sizes are available?

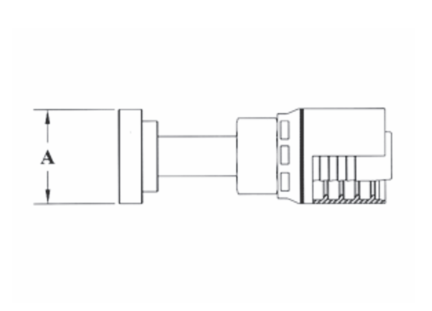

Part Number Hose ID Flange Size A-DiaInches
4SH80-20x20 1-1/4" 1-1/4" 2.12"
4SH80-24x24 1-1/2" 1-1/2" 2.50"
4SH80-32x32 2" 2" 3.12"
