4SH Series — Extreme Pressure No-Skive
4SH26 Grip Crimp 4SH Series Coupling — JIC 37°, Female Swivel, 90° Elbow
4SH26 is the JIC 37°, Female Swivel, 90° Elbow configuration of the Grip Crimp 4SH Series, terminating 1-1/4" through 2" 4SH extreme pressure spiral hose and CS-Flex 5 reduced bend radius hose.
1
What are the main product features?
- The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
- Check crimp O.D. carefully
- Trivalent Zinc Plating
- NO SKIVE REQUIRED — terminates 4SH spiral hose with the cover left intact.
- Extreme pressure service — matched to 4SH hose in 1-1/4" through 2".
- Also fits CS-Flex 5 — the 1-1/4" and 1-1/2" high pressure reduced bend radius hose.
2
Which sizes are available?

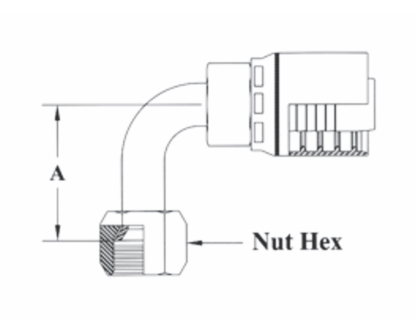

| Part Number | Hose ID | Tube Size | Thread Size | A-DropInches | Nut Hex | Cross Reference Part Numbers |
|---|---|---|---|---|---|---|
| Parker 73 | ||||||
| 4SH26-20x20 | 1-1/4" | 1-1/4" | 1-5/8x12 | 3.40" | 2" | 13973-20-20 |
Additional Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
