4SH25-20x20 by Couplamatic | Grip Crimp 4SH Series Coupling | 1-1/4" Hose ID x 1-5/8x12 Thread Size JIC 37° Female Swivel | 45° Elbow | Trivalent Zinc Plating

4SH25-20x20 by Couplamatic | Grip Crimp 4SH Series Coupling | 1-1/4" Hose ID x 1-5/8x12 Thread Size JIC 37° Female Swivel | 45° Elbow | Trivalent Zinc Plating

Sale price$78.49
Buy more, save moreDiscounts applied in cart/checkout.
4SH Series — Extreme Pressure No-Skive

4SH25 Grip Crimp 4SH Series Coupling — JIC 37°, Female Swivel, 45° Elbow

4SH25 is the JIC 37°, Female Swivel, 45° Elbow configuration of the Grip Crimp 4SH Series, terminating 1-1/4" through 2" 4SH extreme pressure spiral hose and CS-Flex 5 reduced bend radius hose.

1

What are the main product features?
  • The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • NO SKIVE REQUIRED — terminates 4SH spiral hose with the cover left intact.
  • Extreme pressure service — matched to 4SH hose in 1-1/4" through 2".
  • Also fits CS-Flex 5 — the 1-1/4" and 1-1/2" high pressure reduced bend radius hose.
2

Which sizes are available?

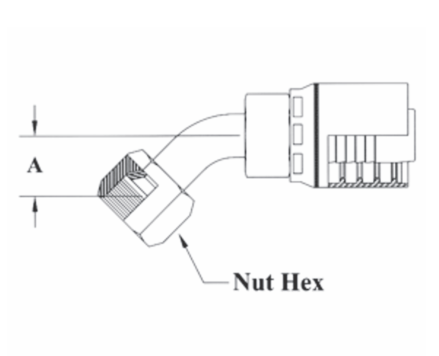

Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex
4SH25-20x20 1-1/4" 1-1/4" 1-5/8x12 1.69" 2"

Additional Product Data:

Series:
  • 4SH Series
Shape:

45 Degree

Ends Configuration:
  • 1-1/4in Female JIC
  • 1-1/4in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
