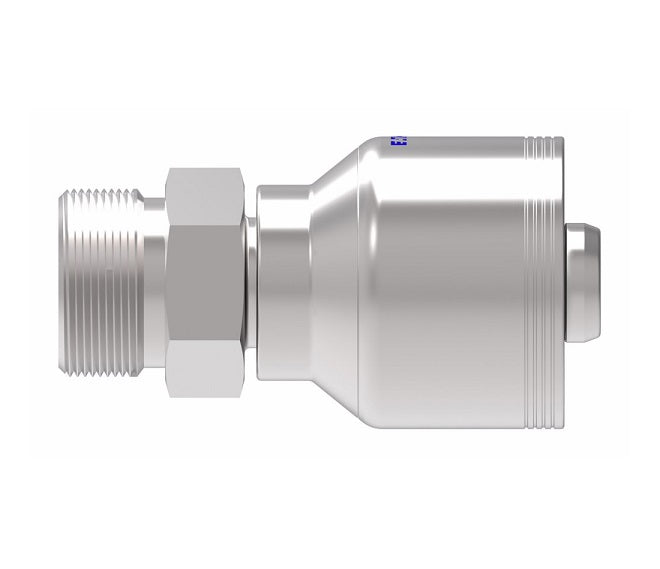

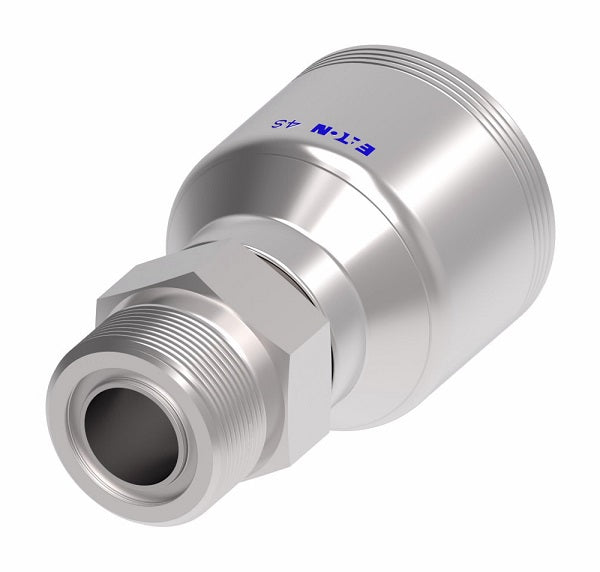

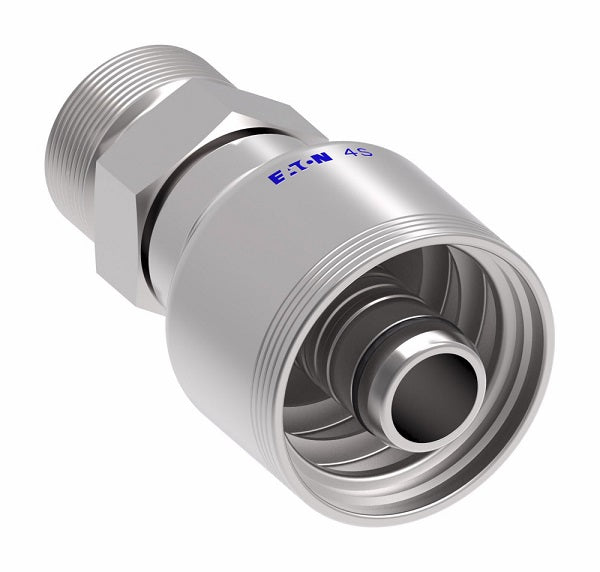

4SA8MR8 Aeroquip by Danfoss | 4 Wire 4S Male ORS (MR) Crimp Fitting | -08 Male O-Ring Face Seal x -08 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Thread | A | D | EØ | Hex 1 |
|
| Dash Size | DN | Dash Size | ||||||
| 4SA6MR6 | -06 | - | -06 | 11/16-16 | 2.05" | 1.16" | 0.26" | 3/4" |
| 4SA8MR6 | -08 | - | -06 | 13/16-16 | 1.79" | 0.95" | 0.26" | 7/8" |
| 4SA8MR8 | -08 | - | -08 | 13/16-16 | 2.54" | 1.34" | 0.38" | 7/8" |
| 4SA12MR12 | -12 | 19 | -12 | 1-3/16-12 | 3.18" | 1.75" | 0.56" | 1-1/4" |
| 4SA16MR12 | -16 | 19 | -12 | 1-7/16-12 | 3.08" | 1.65" | 0.56" | 1-1/2" |
| 4SA16MR16 | -16 | 25 | -16 | 1-7/16-12 | 3.45" | 1.89" | 0.76" | 1-1/2" |
| 4SA20MR16 | -20 | 25 | -16 | 1-11/16-12 | 3.19" | 1.63" | 0.76" | 1-3/4" |
| 4SA20MR20 | -20 | 31 | -20 | 1-11/16-12 | 4.22" | 2.05" | 0.99" | 1-3/4" |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
