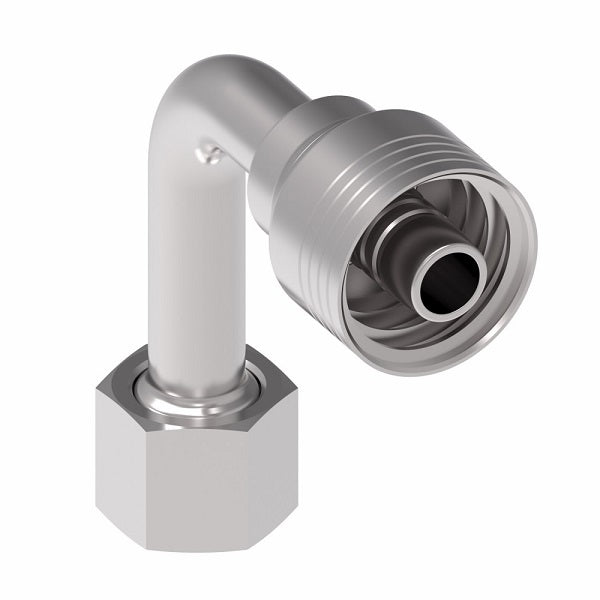

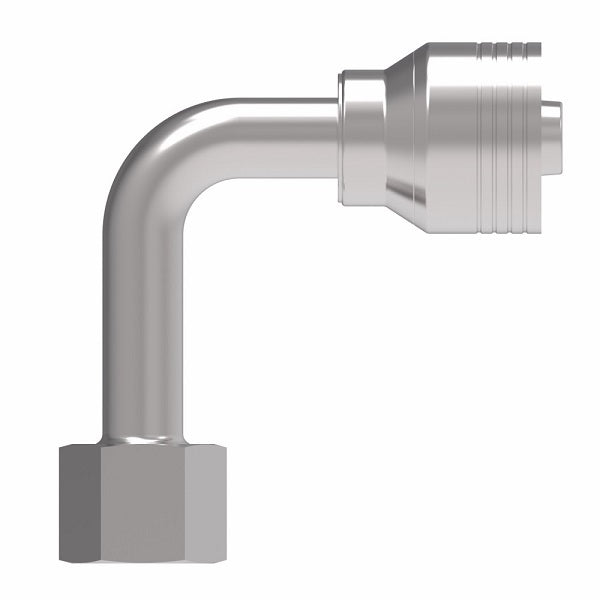

4SA6FRC6 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -06 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Thread | A | D | EØ | H | Hex 1 |
|
| Dash Size | DN | Dash Size | |||||||
| 4SA6FRC6 | -06 | - | -06 | 11/16-16 | 2.27" | 1.34" | 0.24" | 2.13" | 13/16" |
| 4SA8FRC6 | -08 | - | -06 | 13/16-16 | 2.55" | 1.71" | 0.26" | 2.55" | 15/16" |
| 4SA8FRC8 | -08 | - | -08 | 13/16-16 | 2.87" | 1.67" | 0.33" | 2.51" | 15/16" |
| 4SA10FRC8 | -10 | - | -08 | 1-14 | 2.98" | 1.91" | 0.38" | 2.76" | 1-1/8" |
| 4SA10FRC10 | -10 | - | -10 | 1-14 | 3.08" | 1.91" | 0.44" | 2.76" | 1-1/8" |
| 4SA10FRC12 | -10 | 19 | -12 | 1-14 | 3.60" | 2.18" | 0.56" | 2.76" | 1-1/8" |
| 4SA12FRC12 | -12 | 19 | -12 | 1-3/16-12 | 4.11" | 2.68" | 0.56" | 3.78" | 1-3/8" |
| 4SA16FRC12 | -16 | 19 | -12 | 1-7/16-12 | 4.61" | 3.19" | 0.56" | 4.49" | 1-5/8" |
| 4SA16FRC16 | -16 | 25 | -16 | 1-7/16-12 | 4.44" | 2.87" | 0.76" | 4.49" | 1-5/8" |
| 4SA20FRC20 | -20 | 31 | -20 | 1-11/16-12 | 6.02" | 3.85" | 0.99" | 5.08" | 1-7/8" |
| 4SA24FRC20 | -24 | 31 | -20 | 2-12 | 6.02" | 3.85" | 0.99" | 5.55" | 2-1/4" |
| 4SA24FRC24 | -24 | 38 | -24 | 2-12 | 6.02" | 3.85" | 0.99" | 5.55" | 2-1/4" |
Additional Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
