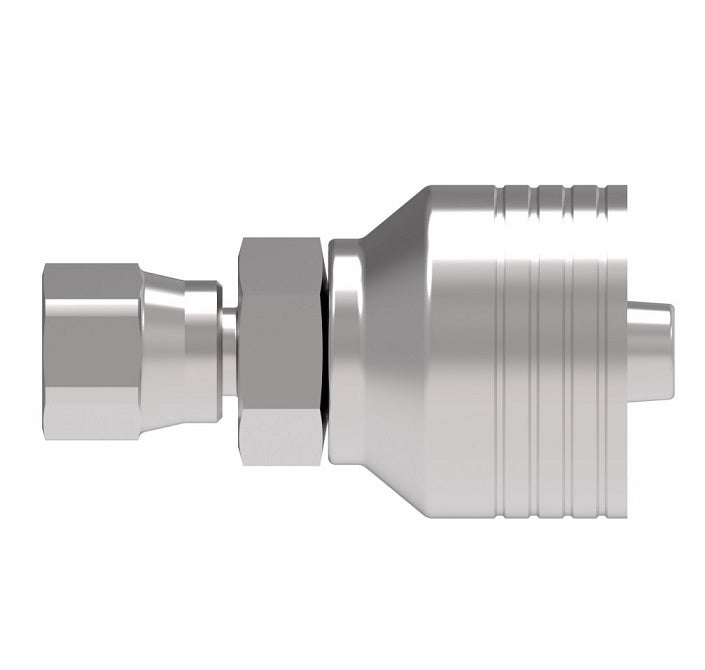

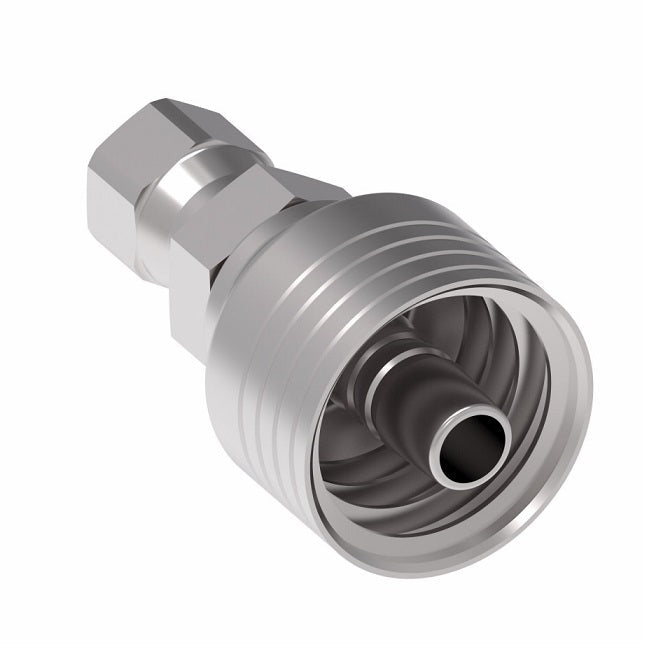

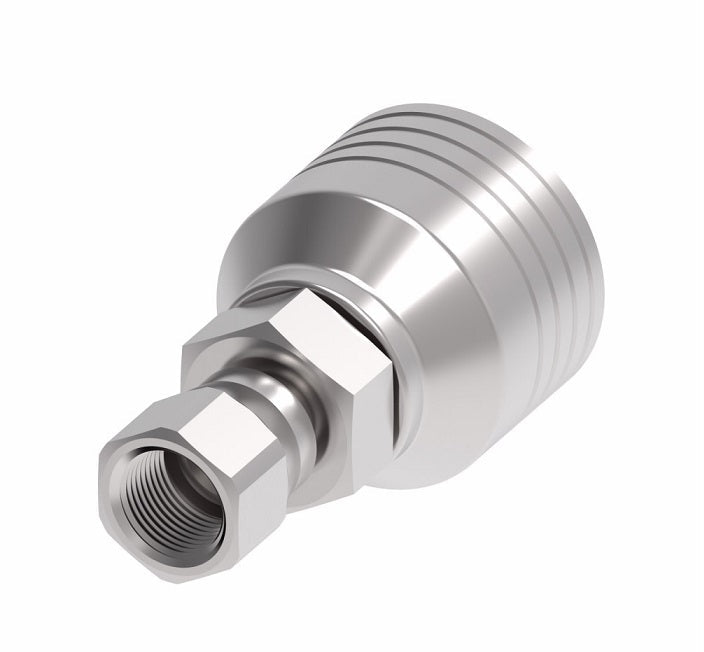

4SA6FJ8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel (FJ) Crimp Fitting | -06 Female JIC 37° Swivel x -08 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
| Note: | |||
|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Stainless Steel Part Number |
Terminal End | Hose Size | Thread | A | D | EØ | Hex 1 |
Hex 2 |
|
| Dash Size | DN | Dash Size | ||||||||
| 4SA4FJ6 | - | -04 | - | -06 | 7/16-20 | 2.19" | 1.19" | 0.17" | 9/16" | 11/16" |
| 4SA6FJ6 | - | -06 | - | -06 | 9/16-18 | 2.28" | 1.28" | 0.26" | 1-1/16" | 11/16" |
| 4SA8FJ6 | - | -08 | - | -06 | 3/4-16 | 2.31" | 1.31" | 0.26" | 7/8" | 11/16" |
| 4SA6FJ8 | - | -06 | - | -08 | 9/16-18 | 2.36" | 1.36" | 0.33" | 11/16" | 13/16" |
| 4SA8FJ8 | - | -08 | - | -08 | 3/4-16 | 2.63" | 1.46" | 0.38" | 7/8" | 13/16" |
| 4SA10FJ8 | - | -10 | - | -08 | 7/8-14 | 2.64" | 1.47" | 0.38" | 1" | 7/8" |
| 4SA12FJ8 | - | -12 | - | -08 | 1-1/16-12 | 2.73" | 1.56" | 0.38" | 1-1/4" | 1" |
| 4SA10FJ10 | - | -10 | - | -10 | 7/8-14 | 2.77" | 1.62" | 0.50" | 1" | 15/16" |
| 4SA12FJ10 | - | -12 | - | -10 | 1-1/16-12 | 2.72" | 1.57" | 0.50" | 1-1/4" | 1" |
| 4SA10FJ12 | - | -10 | 19 | -12 | 7/8-14 | 2.95" | 1.53" | 0.48" | 1-3/16" | 1" |
| 4SA12FJ12 | - | -12 | 19 | -12 | 1-1/16-12 | 3.23" | 1.80" | 0.56" | 1-3/16" | 1-1/4" |
| 4SA14FJ12 | - | -14 | 19 | -12 | 1-3/16-12 | 3.05" | 1.63" | 0.56" | 1-3/16" | 1-3/8" |
| 4SA16FJ12 | - | -16 | 19 | -12 | 1-5/16-12 | 3.16" | 1.73" | 0.56" | 1-3/16" | 1-1/2" |
| 4SA12FJ16 | - | -12 | 25 | -16 | 1-1/16-12 | 3.10" | 1.54" | 0.61" | 1-5/8" | 1-1/4" |
| 4SA16FJ16 | 4SA16FJ16C | -16 | 25 | -16 | 1-5/16-12 | 3.51" | 1.94" | 0.76" | 1-5/8" | 1-1/2" |
| 4SA20FJ16 | - | -20 | 25 | -16 | 1-5/8-12 | 3.38" | 1.81" | 0.76" | 1-5/8" | 2" |
| 4SA16FJ20 | - | -16 | 31 | -20 | 1-5/16-12 | 3.90" | 1.72" | 0.99" | 1-13/16" | 1-1/2" |
| 4SA20FJ20 | - | -20 | 31 | -20 | 1-5/8-12 | 4.00" | 1.82" | 0.99" | 1-13/16" | 2" |
| 4SA24FJ20 | - | -24 | 31 | -20 | 1-7/8-12 | 4.20" | 2.03 " | 0.99" | 1-13/16" | 2-1/4" |
| 4SA24FJ24 | - | -24 | 38 | -24 | 1-7/8-12 | 5.31" | 2.24" | 1.22" | 2-1/4" | 2-1/4" |
| 4SA32FJ32 | - | -32 | 51 | -32 | 2-1/2-12 | 5.75" | 2.68" | 1.66" | - | 2-7/8" |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
