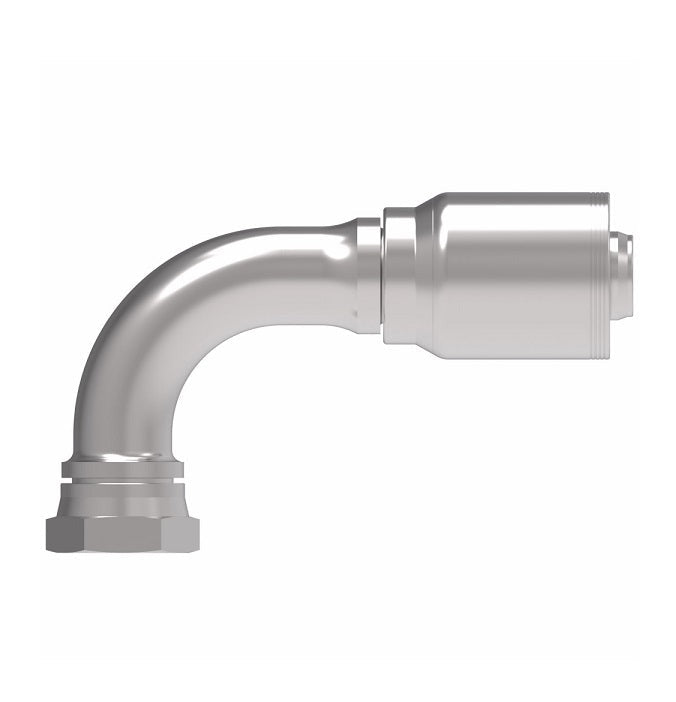

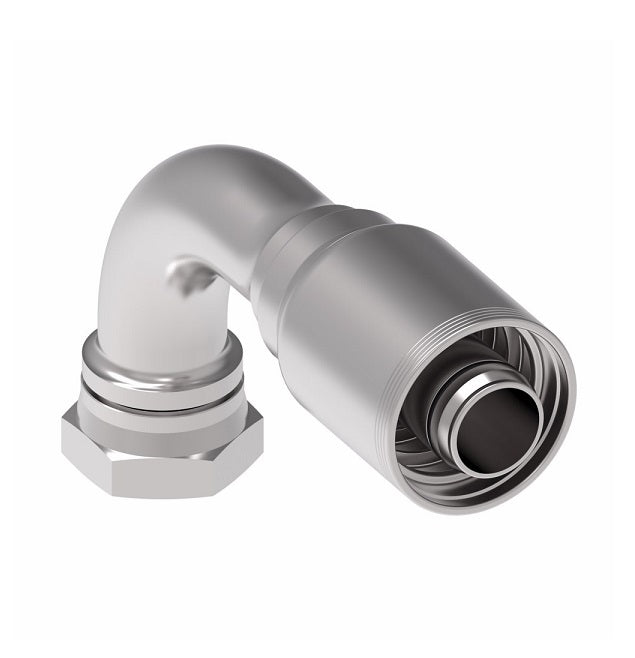

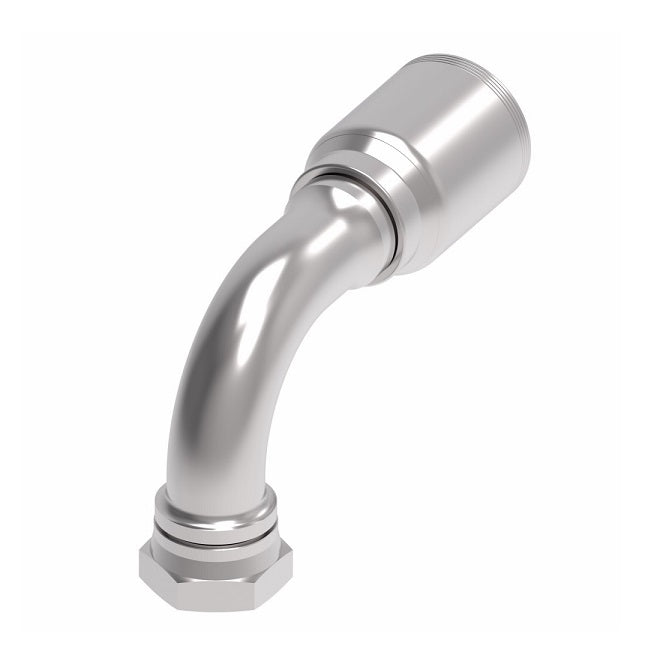

4SA24FRB24 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel
4SA24FRB24 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel
4SA24FRB24 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel

4SA24FRB24 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel

Sale price$263.00

Aeroquip® by Danfoss
4 Wire 4S Female ORS Swivel Crimp Fitting (FRB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $247.22
20–59 $223.55
60+ $197.25
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1-1/2in Female O-Ring Face Seal
  • 1-1/2in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
4SA6FRB6 -06 - -06 11/16-16 2.34" 1.34" 0.26" 0.90" 13/16"
4SA6FRB6.038 -06 - -06 11/16-16 - - - - -
4SA8FRB6 -08 - -06 13/16-16 2.62" 1.62" 0.26" 1.15" 15/16"
4SA6FRB8 -06 - -08 11/16-16 2.56" 1.39" 0.26" 0.90" 13/16"
4SA8FRB8 -08 - -08 13/16-16 2.84" 1.67" 0.36" 1.15" 15/16"
4SA10FRB8 -10 - -08 1-14 3.07" 1.91" 0.38" 1.27" 1-1/8"
4SA12FRB8 -12 - -08 1-3/16-12 3.45" 2.28" 0.38" 1.88" 1-3/8"
4SA10FRB10 -10 - -10 1-14 3.07" 1.91" 0.45" 1.27" 1-1/8"
4SA10FRB10.047 -10 - -10 1-14 - - - - -
4SA12FRB10 -12 - -10 1-3/16-12 3.44" 2.29" 0.50" 1.88" 1-3/8"
4SA10FRB12 -10 19 -12 1-14 3.60" 2.18" 0.56" 1.27" 1-1/8"
4SA12FRB12 -12 19 -12 1-3/16-12 4.11" 2.68" 0.56" 2.28" 1-3/8"
4SA12FRB12.048 -12 - -12 - - - - - -
4SA16FRB12 -16 19 -12 1-7/16-12 4.61" 3.19" 0.56" 2.80" 1-5/8"
4SA12FRB16 -12 25 -16 1-3/16-12 4.23" 2.67" 0.76" 2.28" 1-3/8"
4SA16FRB16 -16 25 -16 1-7/16-12 4.44" 2.87" 0.76" 2.80" 1-5/8"
4SA16FRB16.056 -16 - -16 - - - - - -
4SA20FRB16 -20 25 -16 1-11/16-12 5.37" 3.81" 0.76" 3.07" 1-7/8"
4SA20FRB20 -20 31 -20 1-11/16-12 6.03" 3.85" 0.99" 3.07" 1-7/8"
4SA24FRB20 -24 31 -20 2-12 6.02" 3.85" 0.99" 3.39" 2-1/4"
4SA24FRB24 -24 38 -24 2-12 8.22" 5.15" 1.22" 4.09" 2-1/4"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
