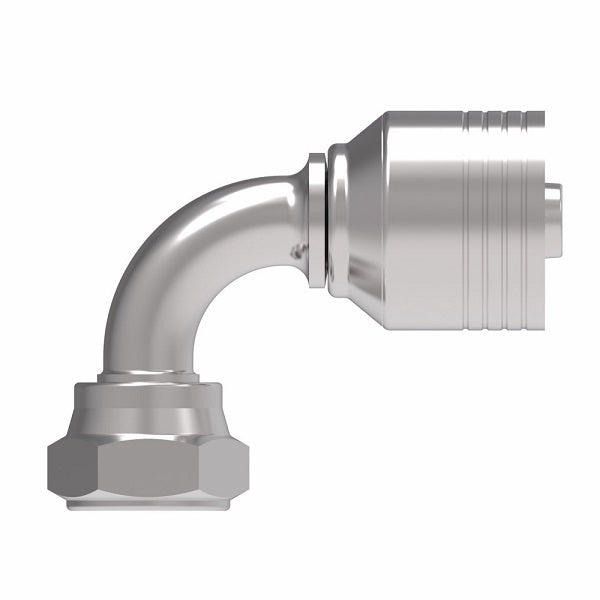

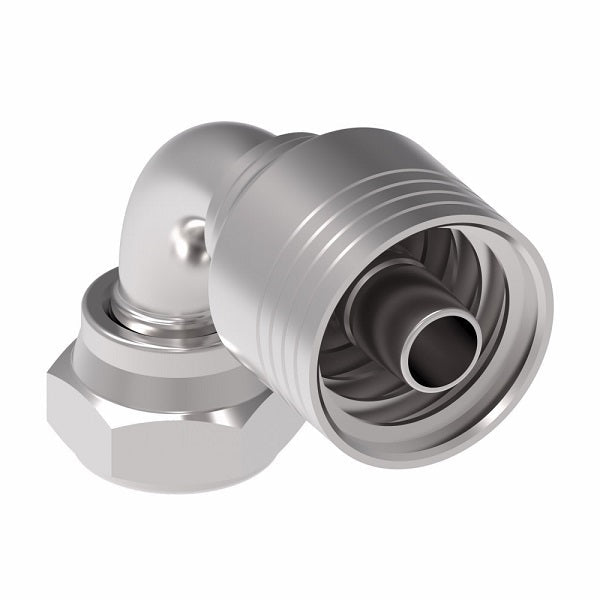

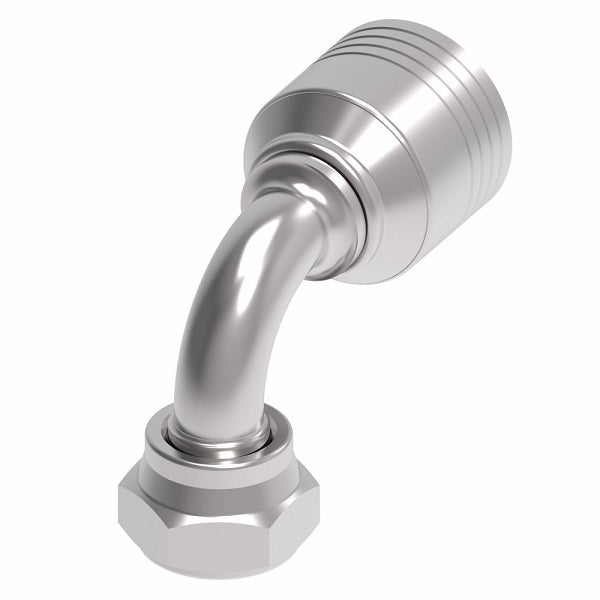

4S8BFB8 Aeroquip by Danfoss | 4 Wire 4S JIS/BSPP Female Swivel 90° Elbow (BFB) Crimp Fitting | -08 Female BSPP Swivel x -08 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
| Note: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Thread | A | D | EØ | H | Hex 1 |
|
| Dash Size | DN | Dash Size | |||||||
| 4S8BFB8 | -08 | - | -08 | G 1/2" | 2.52" | 1.35" | 0.38" | 1.48" | 1.06" |
| 4S12BFB12 | -12 | 19 | -12 | G 3/4" | 4.17" | 2.74" | 0.56" | 2.24" | 32mm |
| 4S16BFB12 | -16 | 19 | -12 | G 1" | 4.17" | 2.74" | 0.56" | 2.68" | 41mm |
| 4S16BFB16 | -16 | 25 | -16 | G 1" | 4.94" | 3.38" | 0.76" | 2.68" | 41mm |
| 4S20BFB16 | -20 | 25 | -16 | G 1-1/4" | 4.94" | 3.38" | 0.76" | 3.11" | 50mm |
| 4S20BFB20 | -20 | 31 | -20 | G 1-1/4" | 5.71" | 3.74" | 0.99" | 3.11" | 50mm |
| 4S24BFB24 | -24 | 38 | -24 | G 1-1/2" | 8.07" | 5.00" | 1.22" | 3.88" | 55mm |
| 4S32BFA32 | -32 | 51 | -32 | G 2" | 9.67" | 6.60" | 1.66" | 4.93" | 70mm |
Additional Product Data:
Shape:
90 Degree
Material(s):
Special Properties:
Compatible Series:
