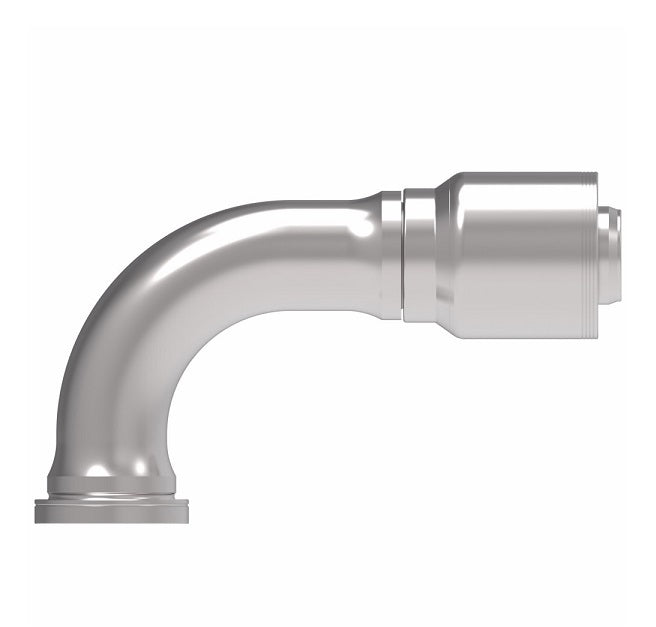

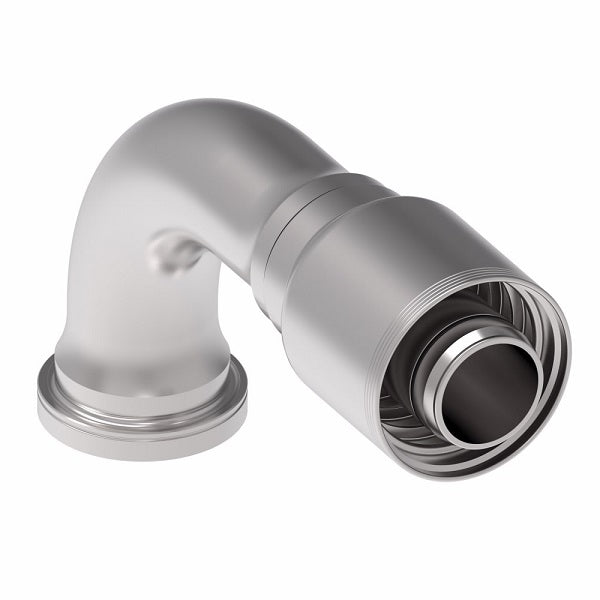

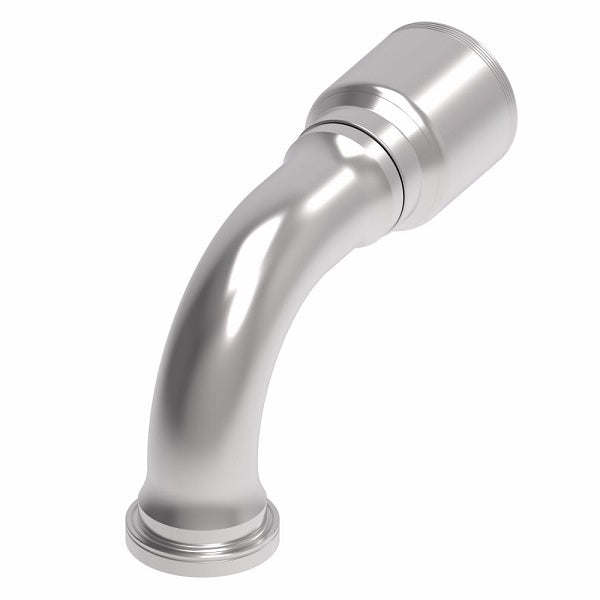

4S32FHB32 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 90° Elbow (FHB) Crimp Fitting | -32 Code 62 Flange x -32 Hose Barb | Steel
Aeroquip® by Danfoss
4 Wire 4S SAE Code 62 Flange Crimp Fitting (FHB) - 90° Elbow
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $292.64 |
| 15–29 | $264.62 |
| 30+ | $233.49 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | H | |
| Dash Size | DN | Dash Size | ||||||
| 4S8FHB8 | -08 | - | -08 | 1.25" | 2.74" | 1.67" | 0.36" | 1.63" |
| 4S12FHB12 | -12 | 19 | -12 | 1.63" | 4.27" | 2.85" | 0.56" | 2.32" |
| 4S16FHB12 | -16 | 19 | -12 | 1.88" | 4.84" | 3.41" | 0.56" | 2.80" |
| 4S16FHB16 | -16 | 25 | -16 | 1.88" | 4.94" | 3.39" | 0.76" | 2.80" |
| 4S16FHB16.061 | -16 | - | -16 | - | - | - | - | - |
| 4S16FHB16.120 | -16 | 25 | -16 | 1.88" | 4.96" | 3.39" | 0.76" | 4.72" |
| 4S20FHB16 | -20 | 25 | -16 | 2.13" | 5.72" | 4.15" | 0.76" | 3.50" |
| 4S16FHB20 | -16 | 31 | -20 | 1.88" | 5.79" | 3.62" | 0.99" | 2.80" |
| 4S20FHB20 | -20 | 31 | -20 | 2.13" | 6.36" | 4.19" | 0.99" | 3.50" |
| 4S20FHB20.120 | -20 | 31 | -20 | 2.13" | 6.36" | 4.19" | 0.99" | 4.72" |
| 4S24FHB20 | -24 | 31 | -20 | 2.50" | 7.01" | 4.84" | 0.99" | 4.09" |
| 4S24FHB24 | -24 | 38 | -24 | 2.50" | 8.22" | 5.15" | 1.22" | 4.09" |
| 4S32FHB24 | -32 | 38 | -24 | 3.13" | 9.74" | 6.67" | 1.22" | 5.43" |
| 4S32FHB32 | -32 | 51 | -32 | 3.13" | 9.85" | 6.78" | 1.66" | 5.43" |
