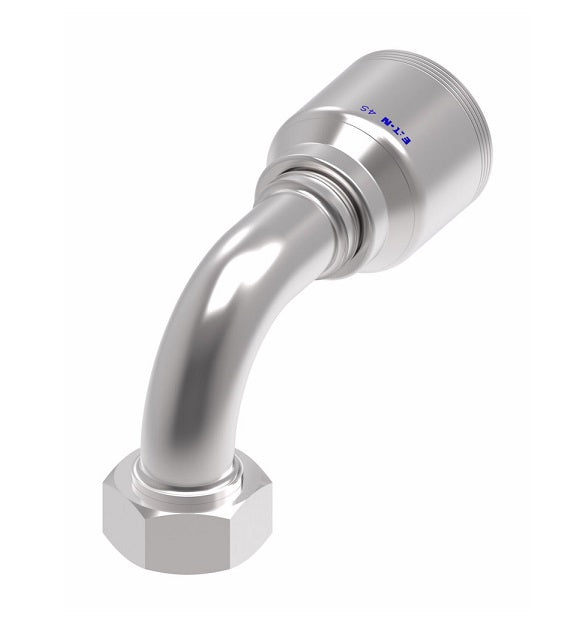

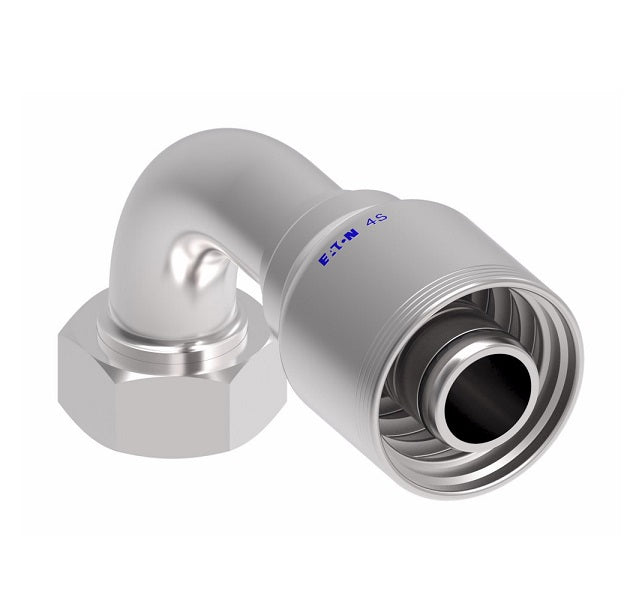

4S32DLB20 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat 90° Elbow Swivel DKO (Light) (DLB) Crimp Fitting | L36 Female DKO/DIN 24° Seat x -20 Hose Barb | Steel
4S32DLB20 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat 90° Elbow Swivel DKO (Light) (DLB) Crimp Fitting | L36 Female DKO/DIN 24° Seat x -20 Hose Barb | Steel
4S32DLB20 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat 90° Elbow Swivel DKO (Light) (DLB) Crimp Fitting | L36 Female DKO/DIN 24° Seat x -20 Hose Barb | Steel

4S32DLB20 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat 90° Elbow Swivel DKO (Light) (DLB) Crimp Fitting | L36 Female DKO/DIN 24° Seat x -20 Hose Barb | Steel

Sale price$182.70
Buy more, save moreDiscounts applied in cart/checkout.
Technical Info:
Steel
Part Number 		Tube OD Hose Size Thread A D E&Oslash H Hex 1
DN Dash Size
4S20DLB12 22 19 -12 M30X2 4.18" 2.75" 0.56" 2.00" 36mm
4S32DLB20 36 31 -20 M45X2 6.07" 3.90" 0.99" 3.11" 50mm

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • L36 Female DIN
  • 1-1/4in Hose Barb
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
