4S32CTG32 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 60° Elbow (CTG) Crimp Fitting | -32 CAT Flange x -32 Hose Barb | Steel
4S32CTG32 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 60° Elbow (CTG) Crimp Fitting | -32 CAT Flange x -32 Hose Barb | Steel
4S32CTG32 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 60° Elbow (CTG) Crimp Fitting | -32 CAT Flange x -32 Hose Barb | Steel

4S32CTG32 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 60° Elbow (CTG) Crimp Fitting | -32 CAT Flange x -32 Hose Barb | Steel

Sale price$380.55

Aeroquip® by Danfoss

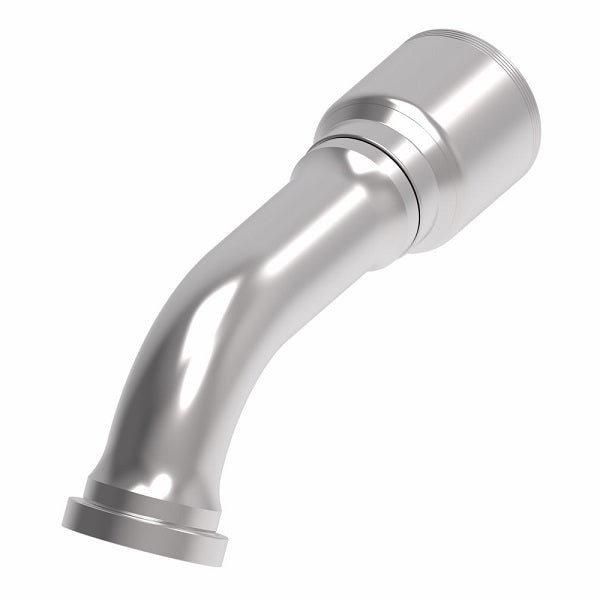

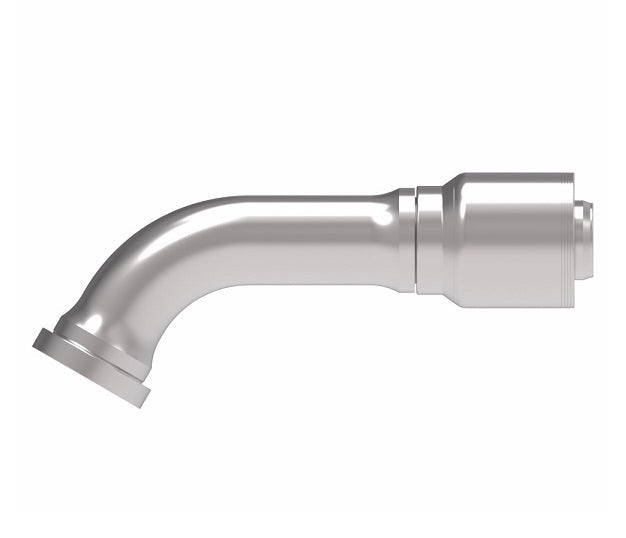

4 Wire 4S CAT Flange Crimp Fitting (CTG) - 60° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–14 $357.72
15–29 $323.47
30+ $285.41
Discounts applied in cart/checkout.

Product Data:

Shape:

60 Degree

Ends Configuration:
  • 2in CAT Flange
  • 2in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
4S12CTG12 -12 19 -12 1.63" 5.38" 3.96" 0.56" 1.67"
4S16CTG16 -16 25 -16 1.87" 6.25" 4.69" 0.76" 1.92"
4S20CTG16 -20 25 -16 2.13" 7.29" 5.73" 0.76" 2.33"
4S24CTG24 -24 38 -24 2.50" 10.01" 6.94" 1.22" 2.62"
4S32CTG32 -32 51 -32 3.13" 12.20" 9.13" 1.66" 3.44"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
