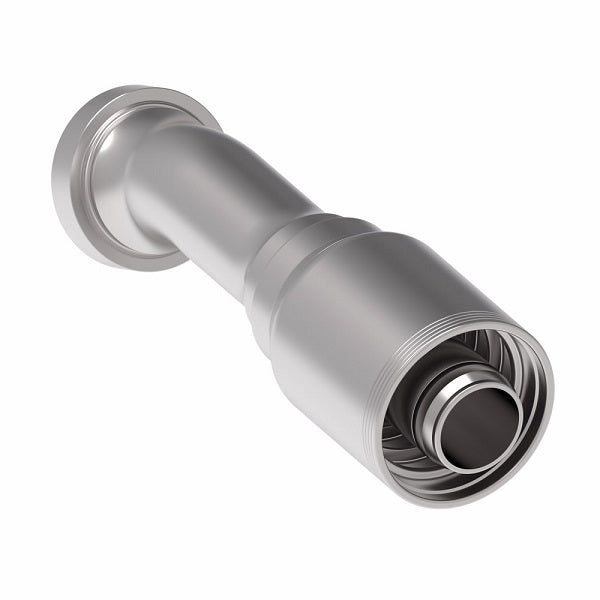

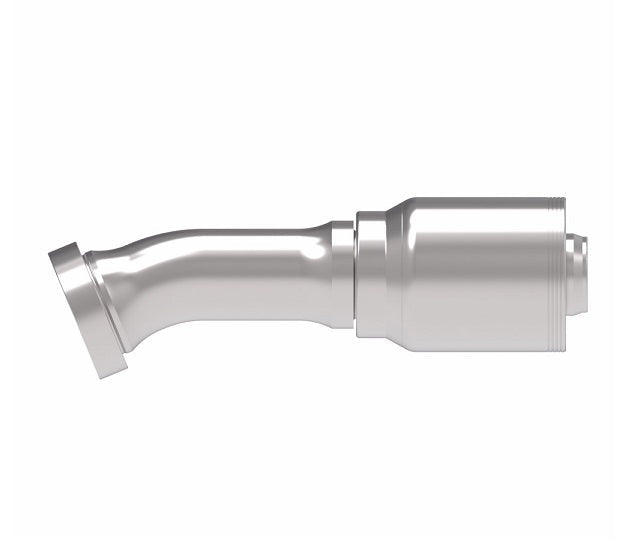

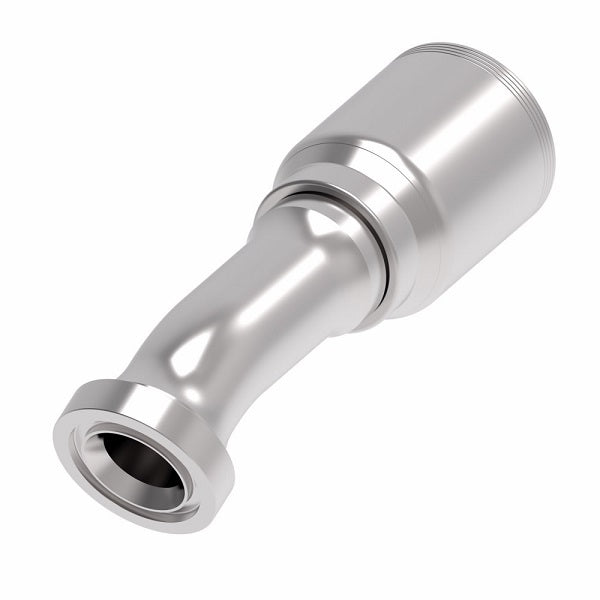

4S24CTD24 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 22.5° Elbow (CTD) Crimp Fitting | -24 CAT Flange x -24 Hose Barb | Steel
| Quantity | Price Each |
| 5–14 | $276.23 |
| 15–29 | $261.69 |
| 30+ | $232.62 |
Discounts applied at checkout.
Aeroquip® by Danfoss
4 Wire 4S CAT Flange Crimp Fitting (CTD) - 22.5° Elbow
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
Product Data:
Shape:
22.5 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | H | |
| Dash Size | DN | Dash Size | ||||||
| 4S12CTD12 | -12 | 19 | -12 | 1.63" | 4.97" | 3.55" | 0.56" | 0.54" |
| 4S16CTD16 | -16 | 25 | -16 | 1.87" | 5.68" | 4.11" | 0.76" | 0.60" |
| 4S20CTD16 | -20 | 25 | -16 | 2.13" | 6.48" | 4.91" | 0.76" | 0.70" |
| 4S24CTD24 | -24 | 38 | -24 | 2.50" | 8.97" | 5.90" | 1.22" | 0.76" |
| 4S32CTD32 | -32 | 51 | -32 | 3.13" | 10.67" | 7.60" | 1.66" | 0.95" |
