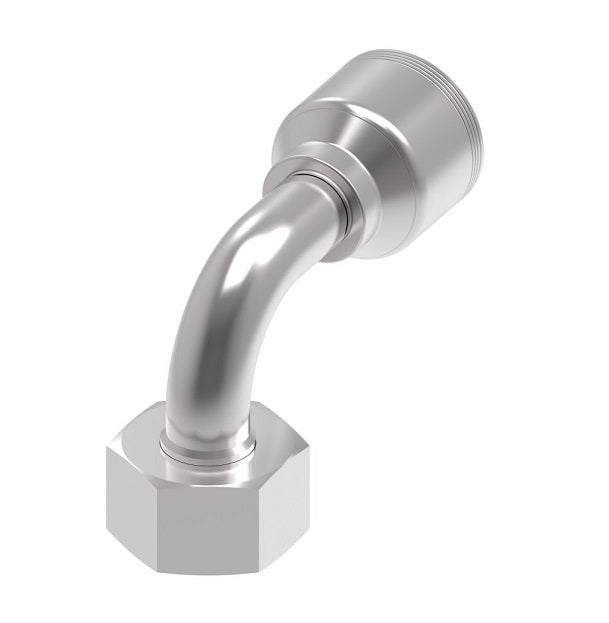

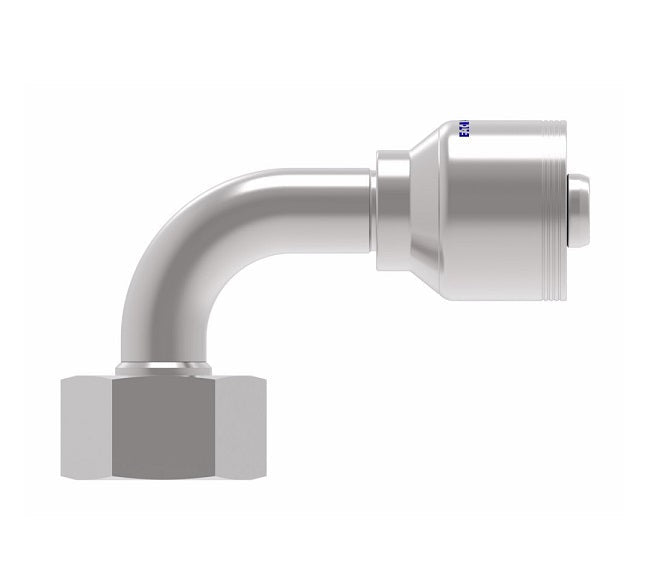

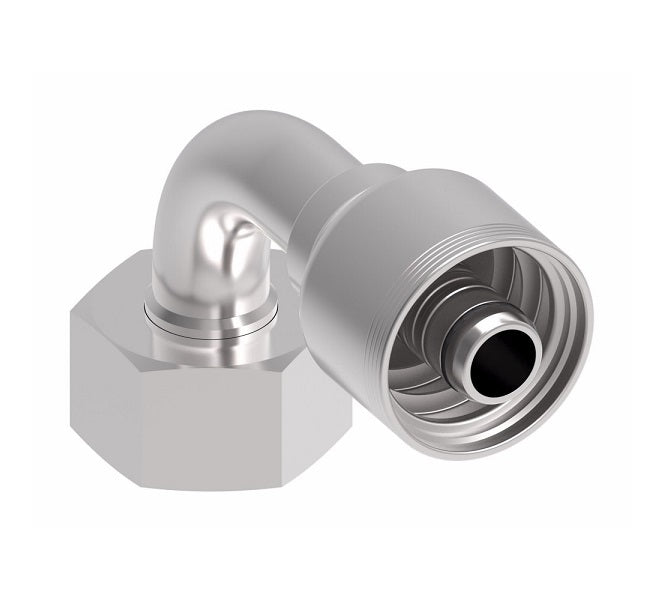

4S20DSB12 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat Swivel DKO (Heavy) 90° Elbow (DSB) Crimp Fitting | S25 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel
Aeroquip® by Danfoss
4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) Crimp Fitting (DSB) - 90° Elbow
S.Rh. DKO (Heavy)
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Quantity | Price Each |
| 15–29 | $106.71 |
| 30–59 | $101.10 |
| 60+ | $89.86 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Tube OD | Hose Size | Thread | A | D | EØ | H | Hex 1 |
|
| DN | Dash Size | ||||||||
| 4S8DSB6 | 12 | - | -06 | M20 x 1.5 | 2.20" | 1.36" | 0.26" | 1.39" | 0.94" |
| 4S10DSB6 | 14 | - | -06 | M22 x 1.5 | 2.35" | 1.52" | 0.26" | 1.65" | 1.06" |
| 4S12DSB8 | 16 | - | -08 | M24 x 1.5 | 3.06" | 1.89" | 0.38" | 1.78" | 1.18" |
| 4S16DSB10 | 20 | - | -10 | M30 x 2 | 3.23" | 2.07" | 0.50" | 2.05" | 1.42" |
| 4S20DSB12 | 25 | 19 | -12 | M36X2 | 4.09" | 2.67" | 0.56" | 2.56" | 46mm |
| 4S25DSB12 | 30 | 19 | -12 | M42X2 | 4.83" | 3.40" | 0.56" | 2.99" | 50mm |
| 4S25DSB16 | 30 | 25 | -16 | M42X2 | 4.90" | 3.34" | 0.76" | 2.99" | 50mm |
| 4S32DSB16 | 38 | 25 | -16 | M52X2 | 5.38" | 3.82" | 0.76" | 3.50" | 60mm |
| 4S32DSB20 | 38 | 31 | -20 | M52X2 | 6.02" | 3.86" | 0.99" | 3.50" | 60mm |
