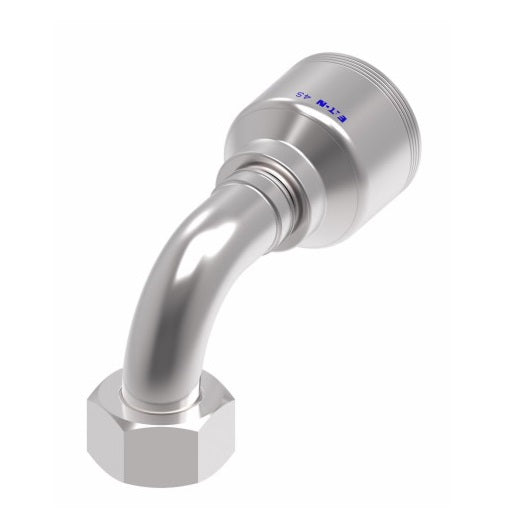

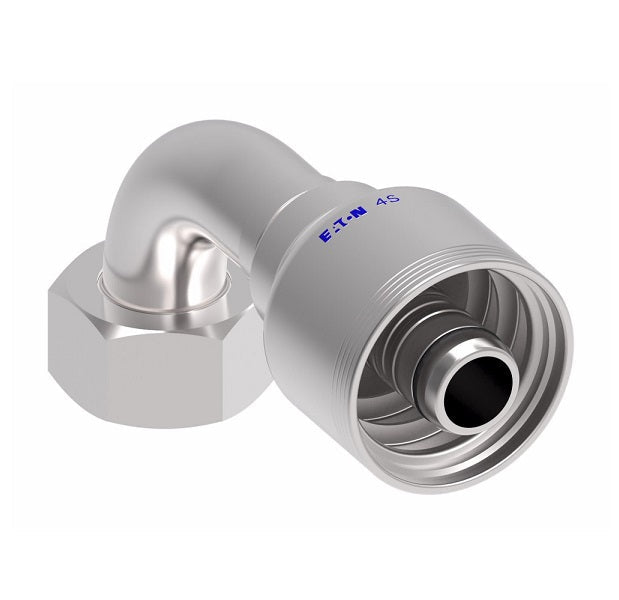

4S20DLB12 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat 90° Elbow Swivel DKO (Light) (DLB) Crimp Fitting | L22 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel
4S20DLB12 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat 90° Elbow Swivel DKO (Light) (DLB) Crimp Fitting | L22 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel
4S20DLB12 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat 90° Elbow Swivel DKO (Light) (DLB) Crimp Fitting | L22 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel

4S20DLB12 Aeroquip by Danfoss | 4 Wire 4S Female DIN 24° Seat 90° Elbow Swivel DKO (Light) (DLB) Crimp Fitting | L22 Female DKO/DIN 24° Seat x -12 Hose Barb | Steel

Sale price$146.08

Aeroquip® by Danfoss
4 Wire 4S Female DIN 24° Seat Swivel DKO (Light) Crimp Fitting (DLB) - 90° Elbow

l.Rh DKO (Light)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $137.32
20–59 $124.17
60+ $109.56
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • L22 Female DIN
  • 3/4in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Tube OD Hose Size Thread A D E&Oslash H Hex 1
DN Dash Size
4S20DLB12 22 19 -12 M30X2 4.18" 2.75" 0.56" 2.00" 36mm
4S32DLB20 36 31 -20 M45X2 6.07" 3.90" 0.99" 3.11" 50mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
