4S20BT20 Aeroquip by Danfoss | 4 Wire 4S BSP Male Tapered Rigid (BT) Crimp Fitting | -20 Male BSPT Rigid x -20 Hose Barb | Steel
4S20BT20 Aeroquip by Danfoss | 4 Wire 4S BSP Male Tapered Rigid (BT) Crimp Fitting | -20 Male BSPT Rigid x -20 Hose Barb | Steel
4S20BT20 Aeroquip by Danfoss | 4 Wire 4S BSP Male Tapered Rigid (BT) Crimp Fitting | -20 Male BSPT Rigid x -20 Hose Barb | Steel

4S20BT20 Aeroquip by Danfoss | 4 Wire 4S BSP Male Tapered Rigid (BT) Crimp Fitting | -20 Male BSPT Rigid x -20 Hose Barb | Steel

Sale price$98.06

Aeroquip® by Danfoss

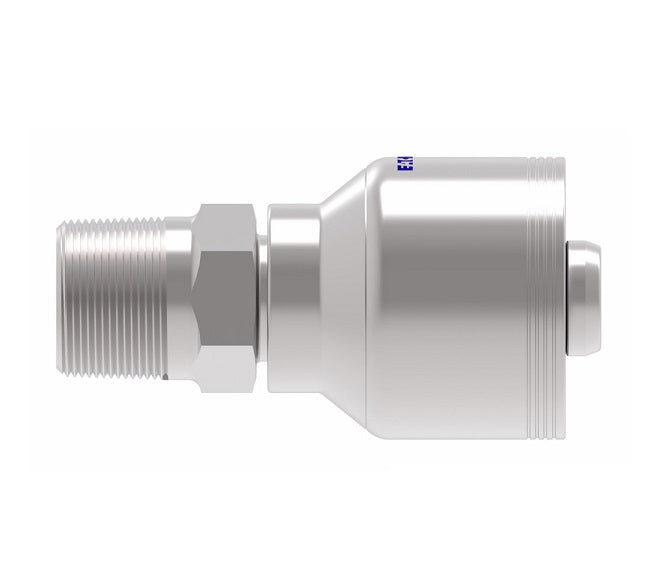

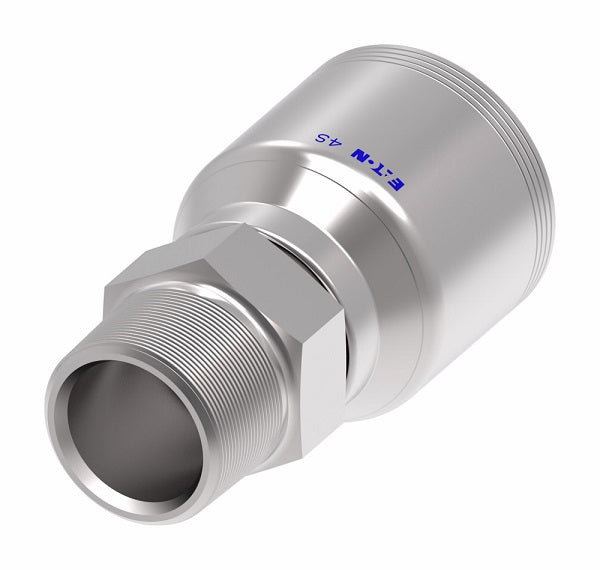

4 Wire 4S BSP Male Tapered Rigid Crimp Fitting (BT) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
20–29 $92.18
30–59 $83.35
60+ $73.55
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/4in Male BSPT
  • 1-1/4in Hose Barb
Material(s):
  • Steel
Technical Info:
Note:
  • "R" as part of thread size is ISO designation for tapered thread.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1
Dash Size DN Dash Size
4S12BT12 -12 19 -12 R 3/4-14 3.31" 1.88" 0.56" 27,0mm
4S16BT16 -16 25 -16 R 1-11 3.74" 2.17" 0.76" 36,0mm
4S20BT20 -20 31 -20 R 1-1/4-11 4.66" 2.49" 0.99" 46,0mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
