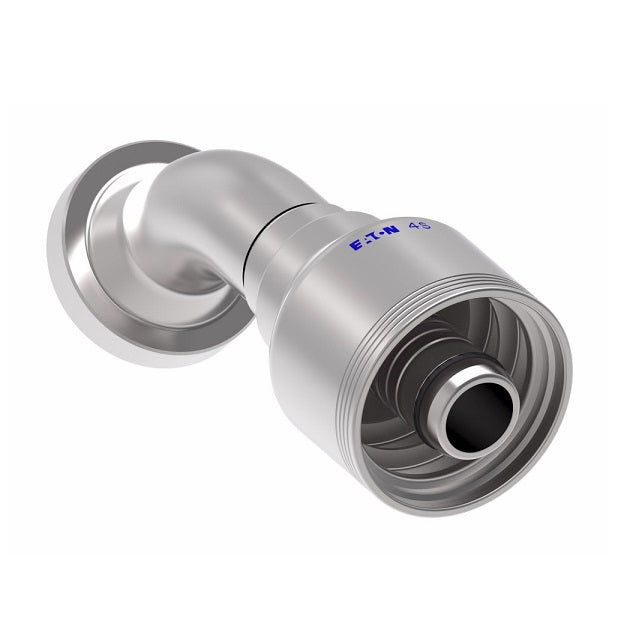

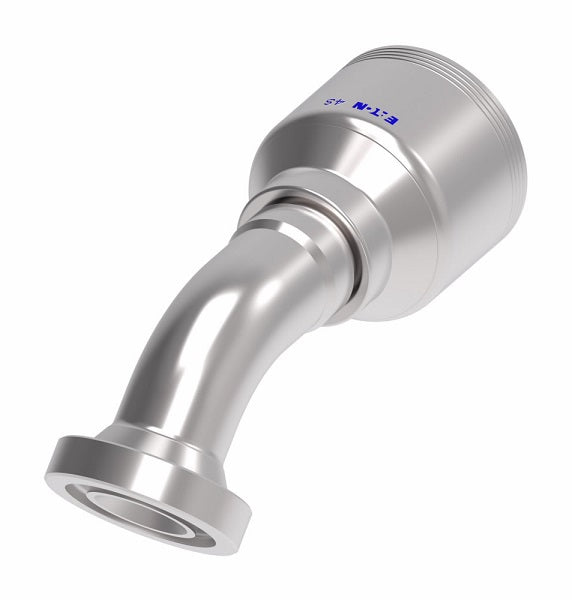

4S16FHA12 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 45° Elbow (FHA) Crimp Fitting | -16 Code 62 Flange x -12 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | H | |
| Dash Size | DN | Dash Size | ||||||
| 4S8FHA8 | -08 | - | -08 | - | - | - | - | - |
| 4S12FHA8 | -12 | - | -08 | - | - | - | - | - |
| 4S12FHA12 | -12 | 19 | -12 | 1.63" | 4.48" | 3.06" | 0.56" | 1.06" |
| 4S16FHA12 | -16 | 19 | -12 | 1.88" | 5.04" | 3.61" | 0.56" | 1.26" |
| 4S12FHA16 | -12 | 25 | -16 | 1.63" | 4.60" | 3.04" | 0.59" | 1.06" |
| 4S16FHA16 | -16 | 25 | -16 | 1.88" | 5.15" | 3.59" | 0.76" | 1.26" |
| 4S16FHA16.028 | -16 | - | -16 | - | - | - | - | - |
| 4S20FHA16 | -20 | 25 | -16 | 2.13" | 5.91" | 4.35" | 0.76" | 1.54" |
| 4S20FHA20 | -20 | 31 | -20 | 2.13" | 6.56" | 4.39" | 0.99" | 1.54" |
| 4S24FHA20 | -24 | 31 | -20 | 2.50" | 7.21" | 5.05" | 0.99" | 1.77" |
| 4S24FHA24 | -24 | 38 | -24 | 2.50" | 8.43" | 5.36" | 1.22" | 1.77" |
| 4S32FHA24 | -32 | 38 | -24 | 3.13" | 9.88" | 6.81" | 1.22" | 2.26" |
| 4S32FHA32 | -32 | 51 | -32 | 3.13" | 10.00" | 6.93" | 1.66" | 2.26" |
Additional Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
