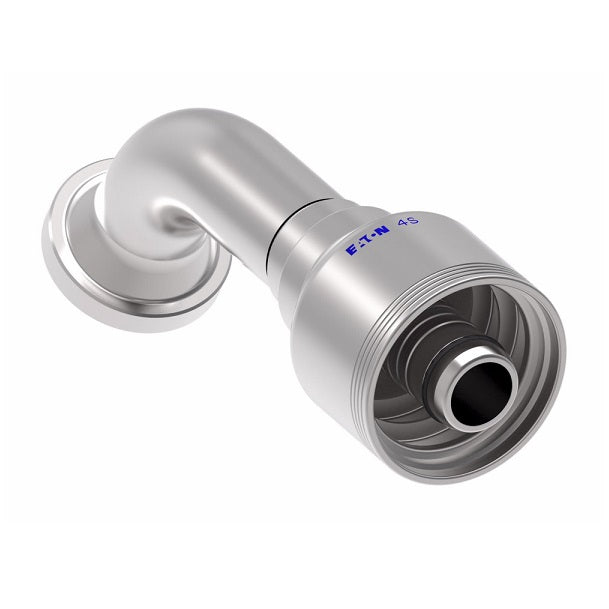

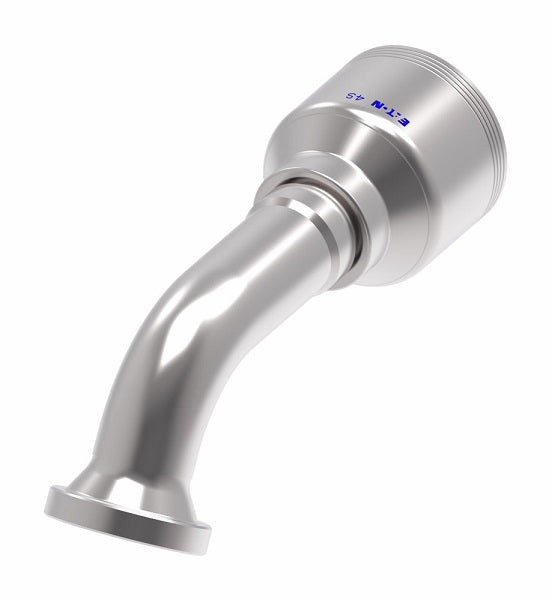

4S12FLG12 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 60° Elbow (FLG) Crimp Fitting | -12 Code 61 Flange x -12 Hose Barb | Steel
Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FLG) - 60° Elbow
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $77.34 |
| 40–79 | $69.94 |
| 80+ | $61.71 |
Discounts applied in cart/checkout.
Product Data:
Shape:
60 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | H | |
| Dash Size | DN | Dash Size | ||||||
| 4S8FLG8 | -08 | - | -08 | 1.19" | 3.47" | 2.40" | 0.36" | 1.13" |
| 4S12FLG8 | -12 | - | -08 | - | - | - | - | - |
| 4S12FLG12 | -12 | 19 | -12 | 1.50" | 5.27" | 3.85" | 0.56" | 1.48" |
| 4S16FLG12 | -16 | 19 | -12 | 1.75" | 6.03" | 4.61" | 0.56" | 1.76" |
| 4S16FLG16 | -16 | 25 | -16 | 1.75" | 6.16" | 4.59" | 0.76" | 1.76" |
| 4S20FLG16 | -20 | 25 | -16 | 2.00" | 7.22" | 5.65" | 0.76" | 2.20" |
| 4S20FLG20 | -20 | 25 | -20 | 2.00" | 7.86" | 5.70" | 0.99" | 2.20" |
| 4S24FLG20 | -24 | 31 | -20 | 2.38" | 7.41" | 5.24" | 0.99" | 2.04" |
| 4S24FLG24 | -24 | 38 | -24 | 2.37" | 9.97" | 6.90" | 1.22" | 2.57" |
| 4S32FLG32 | -32 | 51 | -32 | 2.81" | 12.17" | 9.10" | 1.66" | 3.38" |
