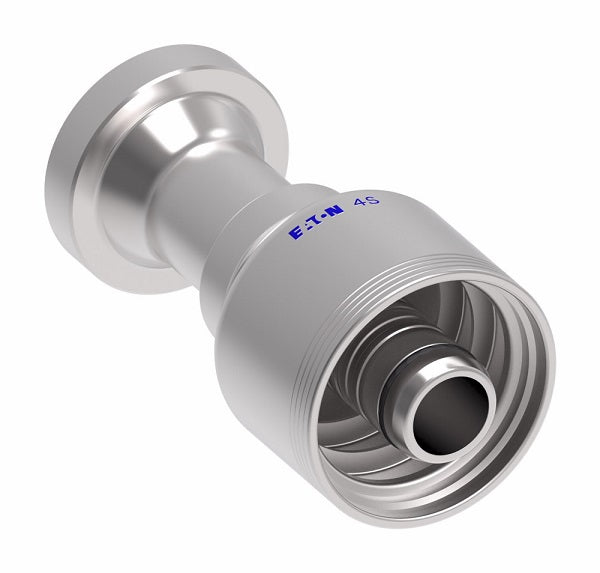

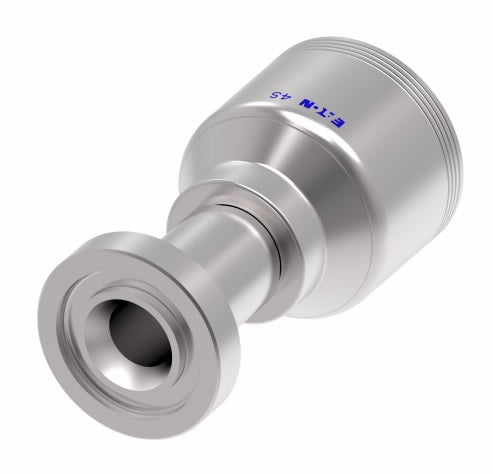

4S12FH8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Split Flange (FH) Crimp Fitting | -12 Code 62 Split Flange x -08 Hose Barb | Steel
Aeroquip® by Danfoss
4 Wire 4S SAE Code 62 Flange Crimp Fitting (FH) - Straight
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $132.35 |
| 20–59 | $119.68 |
| 60+ | $105.60 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | |
| Dash Size | DN | Dash Size | |||||
| 4S8FH8 | -08 | - | -08 | 1.25" | 3.13" | 2.06" | 0.38" |
| 4S12FH8 | -12 | - | -08 | 1.63" | 3.17" | 2.10" | 0.38" |
| 4S12FH10 | -12 | - | -10 | 1.63" | 3.13" | 2.11" | 0.50" |
| 4S12FH12 | -12 | 19 | -12 | 1.63" | 3.57" | 2.15" | 0.56" |
| 4S16FH12 | -16 | 19 | -12 | 1.88" | 3.55" | 2.13" | 0.56" |
| 4S12FH16 | -12 | 25 | -16 | 1.63" | 3.79" | 2.23" | 0.56" |
| 4S16FH16 | -16 | 25 | -16 | 1.88" | 3.89" | 2.33" | 0.76" |
| 4S20FH16 | -20 | 25 | -16 | 2.13" | 3.97" | 2.40" | 0.76" |
| 4S16FH20 | -16 | 31 | -20 | 1.88" | 4.87" | 2.70" | 0.99" |
| 4S20FH20 | -20 | 31 | -20 | 2.13" | 4.85" | 2.68" | 0.99" |
| 4S24FH20 | -24 | 31 | -20 | 2.50" | 5.08" | 2.91" | 0.99" |
| 4S24FH24 | -24 | 38 | -24 | 2.50" | 7.46" | 4.39" | 1.22" |
| 4S32FH24 | -32 | 38 | -24 | 3.13" | 8.05" | 4.89" | 1.22" |
| 4S32FH32 | -32 | 51 | -32 | 3.13" | 7.98" | 4.91" | 1.66" |
