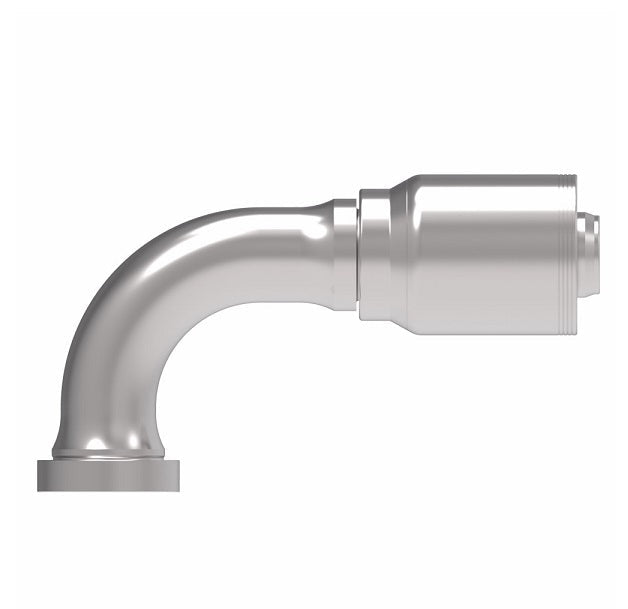

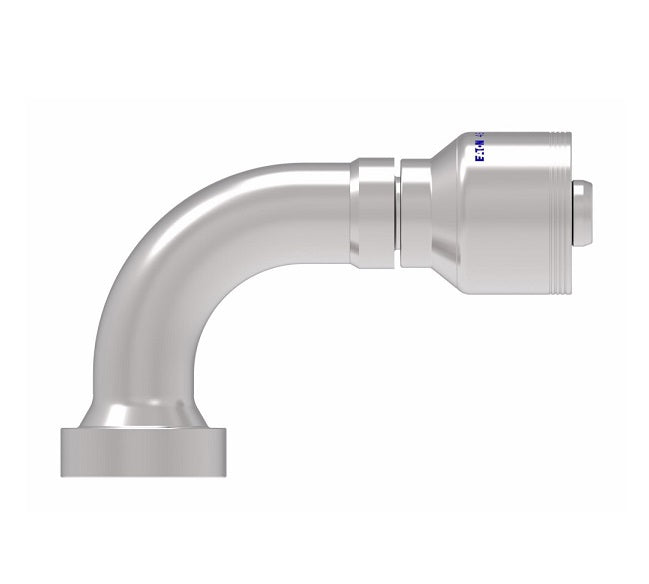

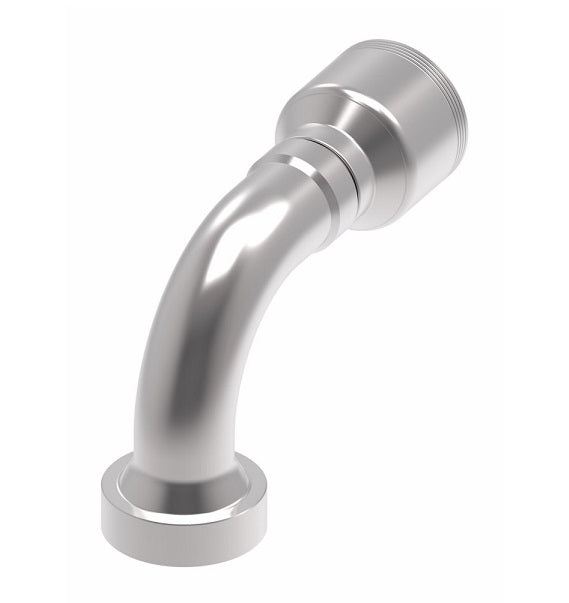

4S12CTB12 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 90° Elbow (CTB) Crimp Fitting | -12 CAT Flange x -12 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | H | |
| Dash Size | DN | Dash Size | ||||||
| 4S12CTB12 | -12 | 19 | -12 | 1.63" | 4.27" | 2.85" | 0.56" | 2.54" |
| 4S16CTB12 | -16 | 19 | -12 | 1.87" | 4.83" | 3.41" | 0.56" | 2.98" |
| 4S16CTB16 | -16 | 25 | -16 | 1.87" | 4.96" | 3.39" | 0.76" | 2.98" |
| 4S20CTB16 | -20 | 25 | -16 | 2.13" | 5.72" | 4.15" | 0.76" | 3.66" |
| 4S20CTB20 | -20 | 31 | -20 | 2.13" | 6.36" | 4.19" | 0.99" | 3.66" |
| 4S24CTB24 | -24 | 38 | -24 | 2.50" | 8.22" | 5.15" | 1.22" | 4.16" |
| 4S32CTB32 | -32 | 51 | -32 | 3.13" | 9.85" | 6.78" | 1.66" | 5.50" |
Additional Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
