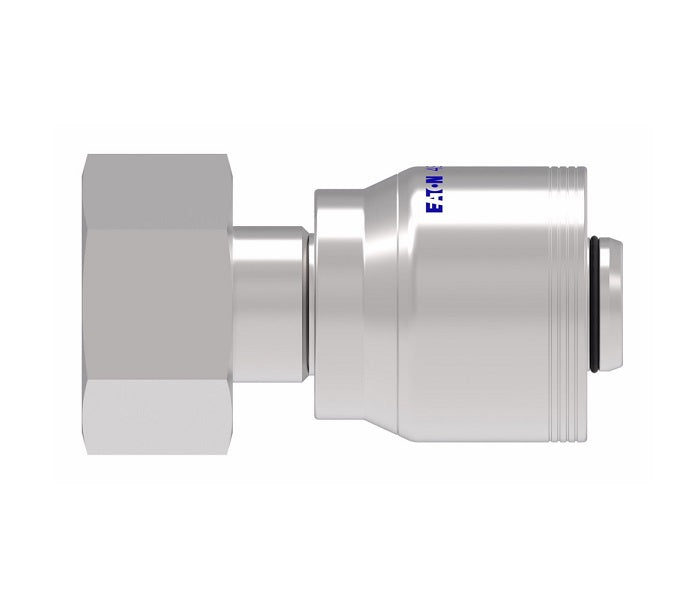

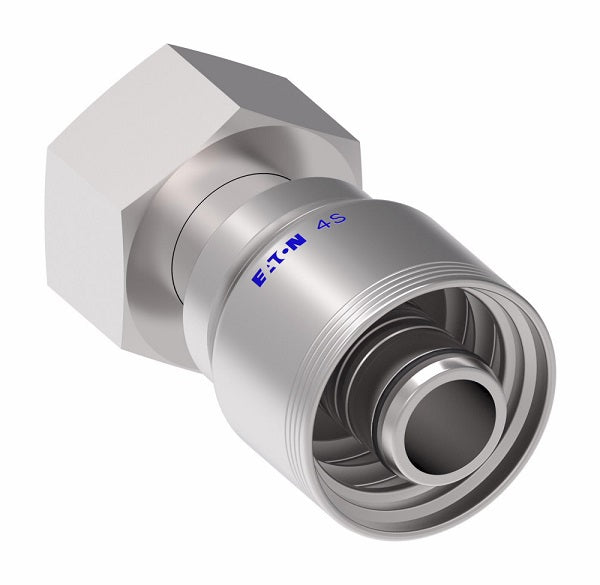

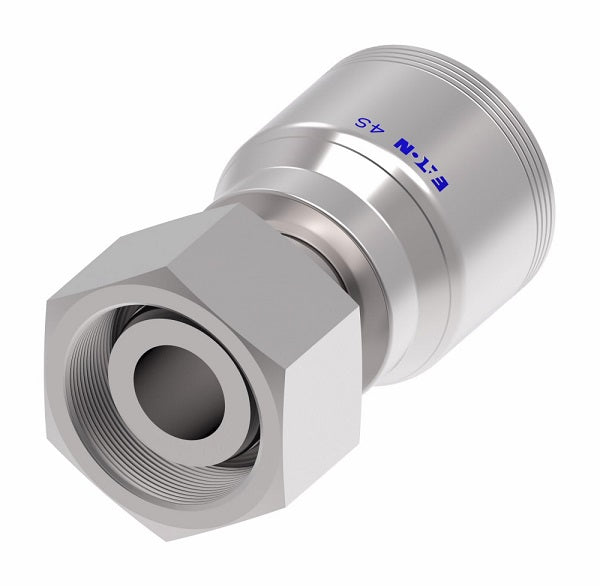

4S10DS6 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Heavy Duty (DS) Crimp Fitting | S14 Female DKO/DIN x -06 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Tube OD | Hose Size | Thread | A | D | EØ | Hex 1 |
|
| DN | Dash Size | |||||||
| 4S8DS6 | 12 | - | -06 | M20 x 1.5 | 2.12" | 1.12" | 0.26" | 0.94" |
| 4S10DS6 | 14 | - | -06 | M22 x 1.5 | 2.24" | 1.24" | 0.26" | 1.06" |
| 4S12DS8 | 16 | - | -08 | M24 x 1.5 | 2.46" | 1.29" | 0.38" | 1.18" |
| 4S16DS10 | 20 | - | -10 | M30 x 2 | 2.63" | 1.48" | 0.50" | 1.42" |
| 4S16DS12 | 20 | 19 | -12 | M30X2 | 2.90" | 1.47" | 0.56" | 36mm |
| 4S20DS12 | 25 | 19 | -12 | M36X2 | 3.41" | 1.98" | 0.56" | 46mm |
| 4S25DS12 | 30 | 19 | -12 | M42X2 | 3.47" | 2.04" | 0.56" | 50mm |
| 4S25DS16 | 30 | 25 | -16 | M42X2 | 3.59" | 2.02" | 0.76" | 50mm |
| 4S32DS16 | 38 | 25 | -16 | M52X2 | 3.72" | 2.18" | 0.76" | 60mm |
| 4S25DS20 | 30 | 31 | -20 | M42X2 | 3.80" | 1.64" | 0.87" | 50mm |
| 4S32DS20 | 38 | 31 | -20 | M52X2 | 4.39" | 2.22" | 0.99" | 60mm |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
