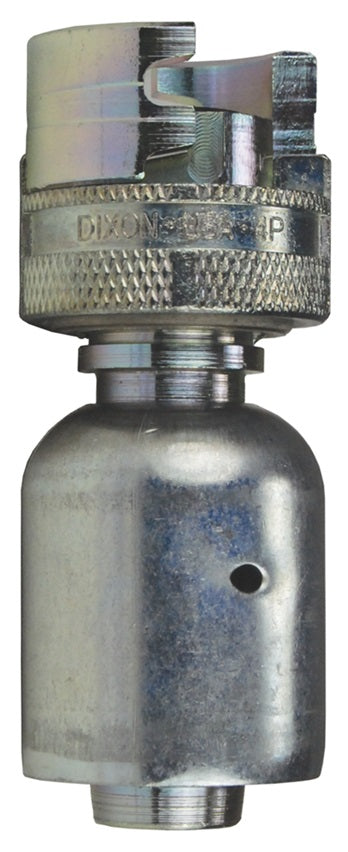

4PS6-WF by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dual-Lock P-Series | Hose Barb | 3/4" Hose ID x 1/2" Body Size | Socket with Ferrule | Nitrile Seal | Steel

4PS6-WF by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dual-Lock P-Series | Hose Barb | 3/4" Hose ID x 1/2" Body Size | Socket with Ferrule | Nitrile Seal | Steel

Sale price$37.56

Dixon Valve & Coupling
Pneumatic Coupling: Dual-Lock P-Series Coupler with Ferrule (Hose Barb)
Buy More, Save More!
Quantity Price Each
10–39 $35.31
40–79 $31.93
80+ $28.17
Discounts applied in cart/checkout.

Product Data:

Series:
  • P Series
Shape:

Straight

Ends Configuration:
  • 3/4in Hose Barb
  • Thor QD Interchange
Compatibility & Interchange:
  • Thor Finger-Lock Interchange
  • Interchanges with Thor PHC-series, National Series 'A', and Campbell Double-Lock
Construction:
  • Machined components are manufactured using solid steel bar stock.
  • Stainless steel retaining ring and spring maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel couplings have a zinc cast sleeve.
  • Nitrile (Nitrile Rubber) seals standard, temperature range -40°F to 250°F (-40°C to 121°C)
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
Dual-Lock P-Series | Coupler with Ferrule (Hose Barb)
Part
Number		 Coupling
Type		 Body
Size		 Hose ID Material Hose OD Length Max.
OD		 Working
Pressure
From To
4PS4-WF Socket/Female 1/2" 1/2" Steel 54/64" 1-2/64" 3.95"
(100.30mm)		 1.55"
(39.40mm)		 300 PSI*
4PS6-WF Socket/Female 1/2" 3/4" Steel 1-10/64" 1-22/64" 3.95"
(100.30mm)		 1.55"
(39.40mm)		 300 PSI*
4PS6-B-WF Socket/Female 1/2" 3/4" Brass 1-10/64" 1-22/64" 3.95"
(100.30mm)		 1.55"
(39.40mm)		 -
4PS6-S-WF Socket/Female 1/2" 3/4" 303 Stainless 1-10/64" 1-22/64" 3.95"
(100.30mm)		 1.55"
(39.40mm)		 -

* at ambient temperature 70°F (21°C)
