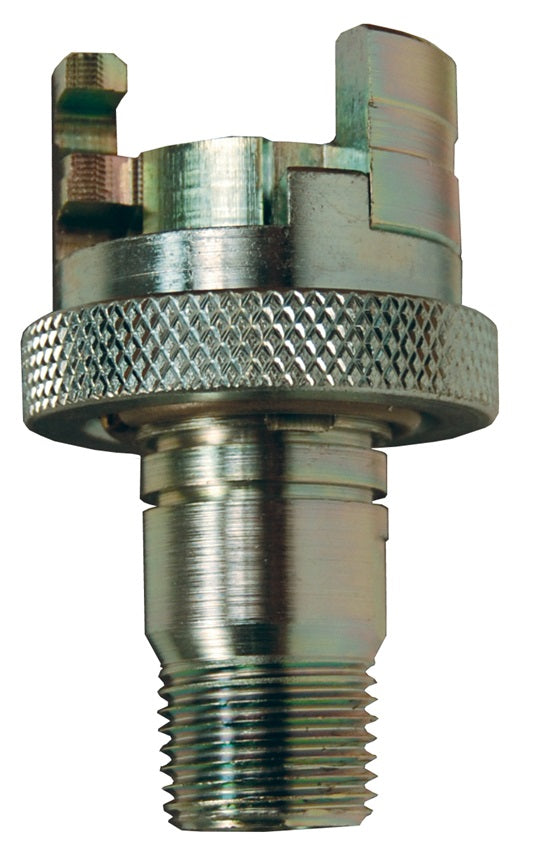

4PM3-FS by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dual-Lock P-Series | Knurled Flanged Sleeve | Socket | 3/8" Male NPTF x 1/2" Body Size | Trivalent Chrome Plated Steel

4PM3-FS by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dual-Lock P-Series | Knurled Flanged Sleeve | Socket | 3/8" Male NPTF x 1/2" Body Size | Trivalent Chrome Plated Steel

Sale price$39.65

Dixon Valve & Coupling
Pneumatic Coupling: Dual-Lock P-Series Socket (Male Threads with Knurled Flanged Sleeve)

Large, raised collar sleeve permits easier handling when wearing gloves.
Buy More, Save More!
Quantity Price Each
10–39 $37.27
40–79 $33.70
80+ $29.74
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/8in Male NPTF
  • Thor QD Interchange
Material(s):
  • Trivalent Chrome-Plated Steel
Compatibility & Interchange:
  • Thor Finger-Lock Interchange
  • Interchanges with National A type, Campbell Double-Lock and Thor PHC series couplings
Construction:
  • Machined components are manufactured using solid bar stock.
  • Nitrile (Nitrile Rubber) seals are standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C).
  • Stainless steel retaining ring and spring maximize corrosion resistance and extend service life on the 1 piece sleeve. 2-Piece Sleeve has a phosphor bronze spring.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
Dual-Lock P-Series | Coupler (Male Threads) with Knurled Flanged Sleeve
Trivalent
Chrome Plated Steel
Part Number		 Body
Size		 Threads
4PM3-FS 1/2" 3/8"-18 Male NPTF
4PM4-FS 1/2" 1/2"-14 Male NPTF
4PM6-FS 1/2" 3/4"-14 Male NPTF

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
