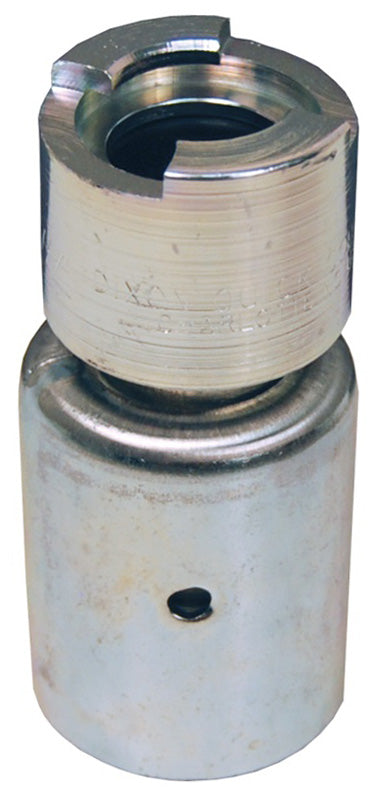

4NS6-WF by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | Hose Barb with Ferrule | 3/4" Hose Barb x 1/2" Body Size | Socket | Steel

4NS6-WF by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | Hose Barb with Ferrule | 3/4" Hose Barb x 1/2" Body Size | Socket | Steel

Sale price$22.96

Dixon Valve & Coupling
Pneumatic Coupling: Dix-Lock N-Series Coupler with Ferrule (Hose Barb)
Buy More, Save More!
Quantity Price Each
10–39 $21.58
40–79 $19.52
80+ $17.22
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Dix-Lock
Series:
  • N Series
Shape:

Straight
Compatibility & Interchange:
  • Bowes Interchange Bayonet Style
  • Interchangeable with Bowes 51000-Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock
Construction:
  • Machined components are manufactured using solid steel bar stock.
  • Nitrile (Nitrile Rubber) seals standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C).
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
Dix-Lock N-Series | Coupler with Ferrule (Hose Barb)
Part
Number		 Coupling
Type		 Body
Size		 Hose ID Material Hose OD Length Max.
OD		 Pressure Rating:
From To
4NS4-WF Socket/Female 1/2" 1/2" Steel 54/64" 1-2/64" 4.95"
(125.70mm)		 1.40"
(35.6mm)		 300 PSI*
4NS4-B-WF Socket/Female 1/2" 1/2" Brass 54/64" 1-2/64" 4.95"
(125.70mm)		 1.40"
(35.6mm)		 300 PSI*
4NS6-WF Socket/Female 1/2" 3/4" Steel 1-10/64" 1-22/64" 4.95"
(125.70mm)		 1.40"
(35.6mm)		 300 PSI*
4NS6-B-WF Socket/Female 1/2" 3/4" Brass 1-10/64" 1-22/64" 4.95"
(125.70mm)		 1.40"
(35.6mm)		 300 PSI*

* at ambient temperature 70°F (21°C)

Dix-Lock N-Series | Plug with Ferrule (Hose Barb)
Part
Number		 Coupling
Type		 Body
Size		 Hose ID Material Hose OD Length Max.
OD		 Pressure Rating:
From To
N4S4-WF Plug/Male 1/2" 1/2" Steel 54/64" 1-2/64" 4.95"
(125.70mm)		 1.40"
(35.6mm)		 300 PSI*
N4S6-WF Plug/Male 1/2" 3/4" Steel 1-10/64" 1-22/64" 4.95"
(125.70mm)		 1.40"
(35.6mm)		 300 PSI*
N4S4-B-WF Plug/Male 1/2" 1/2" Brass 54/64" 1-2/64" 4.95"
(125.70mm)		 1.40"
(35.6mm)		 300 PSI*
N4S6-B-WF Plug/Male 1/2" 3/4" Brass 1-10/64" 1-22/64" 4.95"
(125.70mm)		 1.40"
(35.6mm)		 300 PSI*

* at ambient temperature 70°F (21°C)
