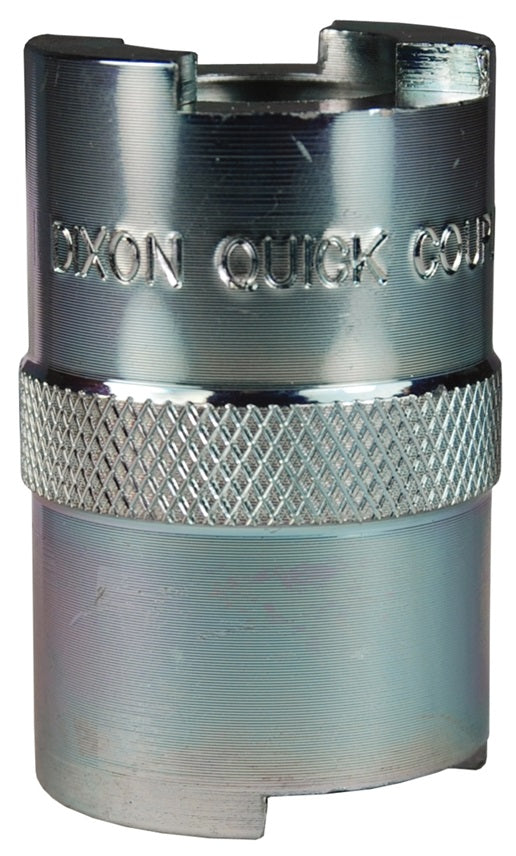

4N4N by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | Gender-Change Union | 1/2" Body Size | Coupler to Coupler | Steel
4N4N by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | Gender-Change Union | 1/2" Body Size | Coupler to Coupler | Steel
Dixon

4N4N by Dixon Valve | Pneumatic Quick Disconnect Coupling | Dix-Lock® N-Series | Gender-Change Union | 1/2" Body Size | Coupler to Coupler | Steel

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Compatibility & Interchange:
  • Bowes Interchange Bayonet Style
  • Interchangeable with Bowes 51000-Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock
  • Conforms to MIL-C-3486 and A-A-50431A standards.
Construction:
  • Machined components are manufactured using solid bar stock.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:

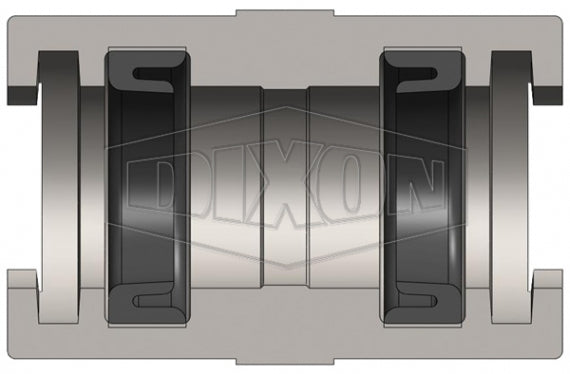

Dix-Lock N-Series | Gender-Change Union Coupler
Part Number Configuration Body Size Material Length Maximum OD
4N4N Coupler to Coupler 1/2" Steel 3.26"
(82.8mm)		 1.33"
(33.8mm)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
