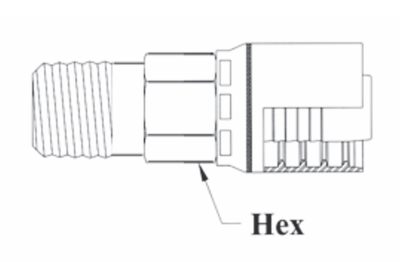

4GCAP-32x32 by Couplamatic | Grip Crimp 4GC Series Coupling | 2" Hose ID x 2-11-1/2 Thread Size NPTF | API Thread Size Male Solid | Straight | Trivalent Zinc Plating
Buy more, save moreDiscounts applied in cart/checkout.
4GC Series — 100R12 No-Skive
4GCAP Grip Crimp 4GC Series Coupling — NPTF, Male Solid, Straight
4GCAP is the NPTF, Male Solid, Straight configuration of the Grip Crimp 4GC Series, terminating SAE 100R12 four spiral hose.
1
What are the main product features?
- The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
- Check crimp O.D. carefully
- Trivalent Zinc Plating
- No skive required — terminates spiral hose without stripping the cover.
- Four spiral construction — built for SAE 100R12 pressures and impulse cycles.
2
Which sizes are available?
| Part Number | Hose ID | Pipe Size | Thread Size | Hex Size |
|---|---|---|---|---|
| 4GCAP-32x32 | 2" | 2" | 2-11-1/2 | 2-1/2" |
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
