4GC25-20x20 by Couplamatic | Grip Crimp 4GC Series Coupling | 1-1/4" Hose ID x 1-5/8x12 Thread Size JIC 37° Female Swivel | 45° Elbow | Trivalent Zinc Plating
Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - JIC 37° - 45° Female Swivel
| Quantity | Price Each |
| 5–19 | $77.00 |
| 20–59 | $69.62 |
| 60+ | $61.43 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|
|

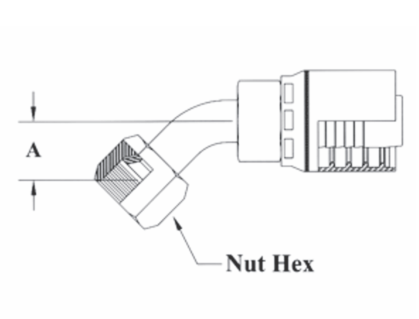

| Part Number | Hose ID | Tube Size | Thread Size | A-DropInches | Nut Hex | Cross Reference Part Numbers |
|---|---|---|---|---|---|---|
| Parker 71 | ||||||
| 4GC25-8x8 | 1/2" | 1/2" | 3/4x16 | 0.71" | 7/8" | 13771-8-8 |
| 4GC25-8x10 | 1/2" | 5/8" | 7/8x14 | 0.84" | 1" | 13771-10-8 |
| 4GC25-12x12 | 3/4" | 3/4" | 1-1/16x12 | 1.12" | 1-1/4" | 13771-12-12 |
| 4GC09-12x16 | 3/4" | 1" | 1-5/16x12 | 1.15" | 1-1/2" | 13771-16-12 |
| 4GC25-16x16 | 1" | 1" | 1-5/16x12 | 1.15" | 1-1/2" | 13771-16-16 |
| 4GC25-20x20 | 1-1/4" | 1-1/4" | 1-5/8x12 | 1.69" | 2" | 13771-20-20 |
| 4GC25-24x24 | 1-1/2" | 1-1/2" | 1-7/8x12 | 1.70" | 2-1/4" | 13771-24-24 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
