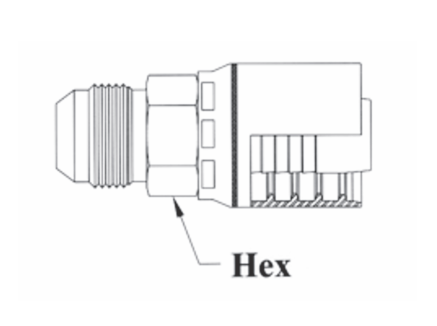

4GC08-8x8 by Couplamatic | Grip Crimp 4GC Series Coupling | 1/2" Hose ID x 3/4x16 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating

4GC08-8x8 by Couplamatic | Grip Crimp 4GC Series Coupling | 1/2" Hose ID x 3/4x16 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating

Sale price$13.13

Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - JIC 37° - Male Solid
Quantity Price Each
20–49 $12.47
50–99 $11.82
100+ $10.50
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4GC Series
Shape:

Straight

Ends Configuration:
  • 1/2in Male JIC
  • 1/2in Hose Barb
Description:
  • The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•
    Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
    Parker 71
    4GC08-8x8 1/2" 1/2" 3/4x16 7/8" 10371-8-8
    4GC08-8x10 1/2" 5/8" 7/8x14 7/8" 10371-10-8
    4GC08-12x12 3/4" 3/4" 1-1/16x12 1-1/8" 10371-12-12
    4GC08-12x14 3/4" 7/8" 1-3/16x12 1-3/8" 10371-14-12
    4GC08-12x16 3/4" 1" 1-5/16x12 1-3/8" 10371-16-12
    4GC08-16x16 1" 1" 1-5/16x12 1-3/8" 10371-16-16
    4GC08-20x20 1-1/4" 1-1/4" 1-5/8x12 1-11/16" 10371-20-20

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
