Sale price$27.11

Dixon Valve & Coupling

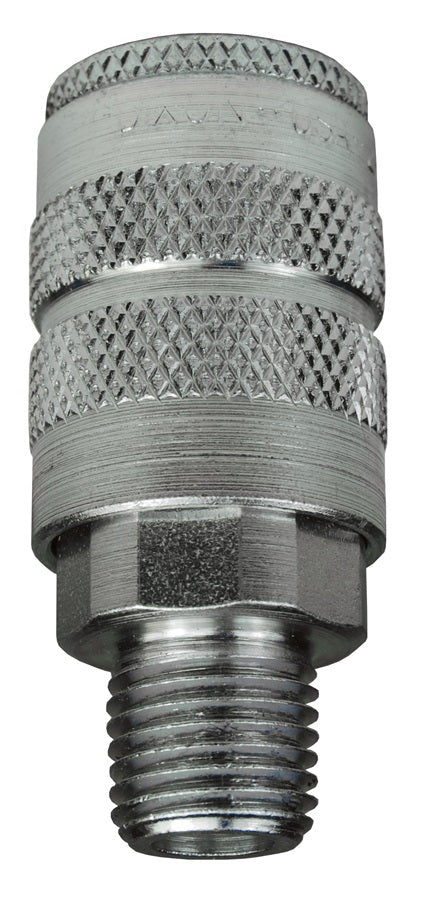

Pneumatic Coupling: F-Series Manual Industrial Interchange Coupler (Male Threads)

Product Data:

Series:
  • F-Series
Shape:

Straight

Ends Configuration:
  • 1/2in Female ISO-6150 Series B Industrial Pneumatic QD Interchange
  • 3/4in Male NPTF
Compatibility & Interchange:
  • Foster 3, 4, 5 and 6 Series
  • Parker 20-Series Manual Interchange
  • Hansen 1000, 400 and 500

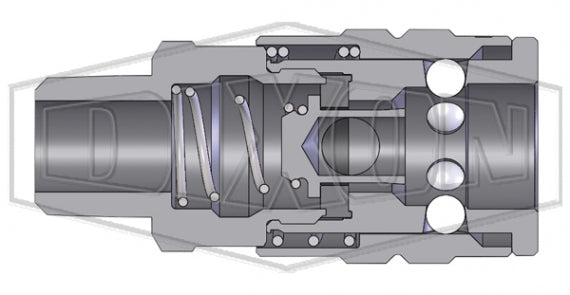

Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Nitrile (Nitrile Rubber) seals are standard.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel sleeve and steel tubular valve.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
F-Series | Manual Industrial Interchange Coupler (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Thread Material Length Max.
OD		 Hex Max. Working
Pressure		 Burst
Pressure
Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:		 Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:
2FM1-B Socket/Female 1/4" 1/8" - 27 Male NPTF Brass 1.97"
(50.0mm)		 0.88"
(22.4mm)		 3/4" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
2FM1-S Socket/Female 1/4" 1/8" - 27 Male NPTF 303 Stainless 1.97"
(50.0mm)		 0.88"
(22.4mm)		 3/4" 303 S.S. Coupler & 303 S.S. Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Plug: 11,500 PSI
(795 bar)
2FM2 Socket/Female 1/4" 1/4" - 18 Male NPTF Steel 2.04"
(51.8mm)		 0.88"
(22.4mm)		 3/4" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 6,500 PSI
(448 bar)
2FM2-B Socket/Female 1/4" 1/4" - 18 Male NPTF Brass 2.04"
(51.8mm)		 0.88"
(22.4mm)		 3/4" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
2FM2-S Socket/Female 1/4" 1/4" - 18 Male NPTF 303 Stainless 2.04"
(51.8mm)		 0.88"
(22.4mm)		 3/4" 303 S.S. Coupler & 303 S.S. Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Plug: 11,500 PSI
(795 bar)
2FBM2-B Socket/Female 1/4" 1/4" - 19 Male BSPT Brass 2.04"
(51.8mm)		 0.88"
(22.4mm)		 3/4" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
2FM3-B Socket/Female 1/4" 3/8" - 18 Male NPTF Brass 2.08"
(52.8mm)		 0.88"
(22.4mm)		 3/4" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
2FM3-S Socket/Female 1/4" 3/8" - 18 Male NPTF 303 Stainless 2.08"
(52.8mm)		 0.88"
(22.4mm)		 3/4" 303 S.S. Coupler & 303 S.S. Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Plug: 11,500 PSI
(795 bar)
2FBM3-B Socket/Female 1/4" 3/8" - 19 Male BSPT Brass 2.08"
(52.8mm)		 0.88"
(22.4mm)		 3/4" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
3FM2 Socket/Female 3/8" 1/4" - 18 Male NPTF Steel 2.45"
(62.2mm)		 1.06"
(26.9mm)		 7/8" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 19,500 PSI
(1,345 bar)
3FM3 Socket/Female 3/8" 3/8" - 18 Male NPTF Steel 2.46"
(62.5mm)		 1.06"
(26.9mm)		 7/8" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 19,500 PSI
(1,345 bar)
3FM3-S Socket/Female 3/8" 3/8" - 18 Male NPTF 303 Stainless 2.46"
(62.5mm)		 1.06"
(26.9mm)		 7/8" 303 S.S. Coupler & 303 S.S. Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Plug: 20,500 PSI
(1,415 bar)
3FBM3 Socket/Female 3/8" 3/8" - 19 Male BSPT Steel 2.46"
(62.5mm)		 1.06"
(26.9mm)		 7/8" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 19,500 PSI
(1,345 bar)
3FM4 Socket/Female 3/8" 1/2" - 14 Male NPTF Steel 2.55"
(64.8mm)		 1.06"
(26.9mm)		 7/8" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 19,500 PSI
(1,345 bar)
4FM3** Socket/Female 1/2" 3/8" - 18 Male NPTF Steel 2.97"
(75.4mm)		 1.19"
(30.2mm)		 1" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 15,500 PSI
(1,070 bar)
4FM4** Socket/Female 1/2" 1/2" - 14 Male NPTF Steel 3.07"
(78.0mm)		 1.19"
(30.2mm)		 1" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 15,500 PSI
(1,070 bar)
4FM4-S Socket/Female 1/2" 1/2" - 14 Male BSPT 303 Stainless 3.07"
(78.0mm)		 1.19"
(30.2mm)		 1" 303 S.S. Coupler & 303 S.S. Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Plug: 15,000 PSI
(1,035 bar)
4FBM4 Socket/Female 1/2" 1/2" - 14 Male BSPT Steel 3.07"
(78.0mm)		 1.19"
(30.2mm)		 1" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 15,500 PSI
(1,070 bar)
4FM6** Socket/Female 1/2" 3/4" - 14 Male NPTF Steel 3.12"
(79.2mm)		 1.19"
(30.2mm)		 1-1/16" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 15,500 PSI
(1,070 bar)

** Can be used with DQC J-series Automotive plugs

DF-Series | Industrial Interchange Plug (Male Threads)
Part Number Coupling Type Body Size Thread Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
D2M1 Plug/Male 1/4" 1/8" - 27 Male NPTF Steel 1.57"
(39.9mm)		 0.58"
(14.7mm)		 1/2"
  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
  • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
  • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
    D2M1-B Plug/Male 1/4" 1/8" - 27 Male NPTF Brass 1.57"
    (39.9mm)    		 0.58"
    (14.7mm)    		 1/2"
    • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
    • Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) | Burst: 8,500 PSI (586 bar)
      D2M1-S Plug/Male 1/4" 1/8" - 27 Male NPTF 303 Stainless 1.57"
      (39.9mm)      		 0.58"
      (14.7mm)      		 1/2"
      • 303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 26,000 PSI (1,795 bar)
      • 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (795 bar)
        D2M2 Plug/Male 1/4" 1/4" - 18 Male NPTF Steel 1.69"
        (42.9mm)        		 0.65"
        (16.5mm)        		 9/16"
        • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
        • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
        • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
          D2M2-B Plug/Male 1/4" 1/4" - 18 Male NPTF Brass 1.69"
          (42.9mm)          		 0.65"
          (16.5mm)          		 9/16"
          • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
          • Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) | Burst: 8,500 PSI (586 bar)
            D2M2-S Plug/Male 1/4" 1/4" - 18 Male NPTF 303 Stainless 1.69"
            (42.9mm)            		 0.65"
            (16.5mm)            		 9/16"
            • 303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 26,000 PSI (1,795 bar)
            • 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (795 bar)
              D2BM2 Plug/Male 1/4" 1/4" - 19 Male BSPT Steel 1.69"
              (42.98mm)              		 0.65"
              (16.5mm)              		 9/16"
              • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
              • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
              • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
                D2M3 Plug/Male 1/4" 3/8" - 18 Male NPTF Steel 1.75"
                (44.5mm)                		 0.87"
                (22.1mm)                		 3/4"
                • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
                • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
                  D2M3-B Plug/Male 1/4" 3/8" - 18 Male NPTF Brass 1.75"
                  (44.5mm)                  		 0.87"
                  (22.1mm)                  		 3/4"
                  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
                  • Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) | Burst: 8,500 PSI (586 bar)
                    D2M3-S Plug/Male 1/4" 3/8" - 18 Male NPTF 303 Stainless 1.75"
                    (44.5mm)                    		 0.87"
                    (22.1mm)                    		 3/4"
                    • 303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 26,000 PSI (1,795 bar)
                    • 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (795 bar)
                      D2BM3 Plug/Male 1/4" 3/8" - 19 Male BSPT Steel 1.75"
                      (44.5mm)                      		 0.87"
                      (22.1mm)                      		 3/4"
                      • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
                      • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                      • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
                        D3M2 Plug/Male 3/8" 1/4" - 18 Male NPTF Steel 1.81"
                        (46.0mm)                        		 0.79"
                        (20.1mm)                        		 11/16"
                        • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                        • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                        • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                          D3M3 Plug/Male 3/8" 3/8" - 18 Male NPTF Steel 1.87"
                          (47.5mm)                          		 0.87"
                          (22.1mm)                          		 3/4"
                          • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                          • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                          • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                            D3M3-B Plug/Male 3/8" 3/8" - 18 Male NPTF Brass 1.87"
                            (47.5mm)                            		 0.87"
                            (22.1mm)                            		 3/4"
                            • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,500 PSI (1,000 bar)
                            • Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) | Burst: 10,000 PSI (690 bar)
                              D3M3-S Plug/Male 3/8" 3/8" - 18 Male NPTF 303 Stainless 1.87"
                              (47.5mm)                              		 0.87"
                              (22.1mm)                              		 3/4"
                              • 303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 25,500 PSI (1,760 bar)
                              • 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 20,500 PSI (1,415 bar)
                                D3BM3 Plug/Male 3/8" 3/8" - 19 Male BSPT Steel 1.87"
                                (47.5mm)                                		 0.87"
                                (22.1mm)                                		 11/16"
                                • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                                • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                                  D3M4 Plug/Male 3/8" 1/2" - 14 Male NPTF Steel 2.03"
                                  (51.6mm)                                  		 1.01"
                                  (25.7mm)                                  		 7/8"
                                  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                  • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                                  • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                                    D4M2 Plug/Male 1/2" 1/4" - 18 Male NPTF Steel 2.13"
                                    (54.1mm)                                    		 0.75"
                                    (19.1mm)                                    		 11/16"
                                    • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                    • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                      D4M3 Plug/Male 1/2" 3/8" - 18 Male NPTF Steel 2.19"
                                      (55.6)                                      		 0.87"
                                      (22.1)                                      		 3/4"
                                      • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                      • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                        D4M4 Plug/Male 1/2" 1/2" - 14 Male NPTF Steel 2.34"
                                        (59.4mm)                                        		 1.01"
                                        (25.7mm)                                        		 7/8"
                                        • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                        • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                          D4M4-B Plug/Male 1/2" 1/2" - 14 Male NPTF Brass 2.34"
                                          (59.4mm)                                          		 1.01"
                                          (25.7mm)                                          		 7/8"
                                          • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,500 PSI (725 bar)
                                            D4M4-S Plug/Male 1/2" 1/2" - 14 Male NPTF 303 Stainless 2.34"
                                            (59.4mm)                                            		 1.01"
                                            (25.7mm)                                            		 7/8"
                                            • 303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 20,500 PSI (1,415 bar)
                                            • 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,000 PSI (1,035 bar)
                                              D4BM4 Plug/Male 1/2" 1/2" - 14 Male BSPT Steel 2.34"
                                              (59.4mm)                                              		 1.01"
                                              (25.7mm)                                              		 7/8"
                                              • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                              • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                                D4M6 Plug/Male 1/2" 3/4" - 14 Male NPTF Steel 2.50"
                                                (63.5mm)                                                		 1.23"
                                                (31.2mm)                                                		 1-1/16"
                                                • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                                • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                                  D6M4 Plug/Male 3/4" 1/2" - 14 Male NPTF Steel 2.22"
                                                  (60.5mm)                                                  		 1.52"
                                                  (38.6mm)                                                  		 1"
                                                  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (670 bar)
                                                    D6M6 Plug/Male 3/4" 3/4" - 14 Male NPTF Steel 2.38"
                                                    (60.5mm)                                                    		 1.52"
                                                    (38.6mm)                                                    		 1-5/16"
                                                    • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (670 bar)
                                                      D6M8 Plug/Male 3/4" 1" - 11-1/2 Male NPTF Steel 2.56"
                                                      (65.0mm)                                                      		 1.80"
                                                      (45.7mm)                                                      		 1-9/16"
                                                      • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (670 bar)

                                                        Dixon Valve & Coupling

                                                        Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

                                                        Explore Dixon Valve & Coupling

                                                        You may also like
