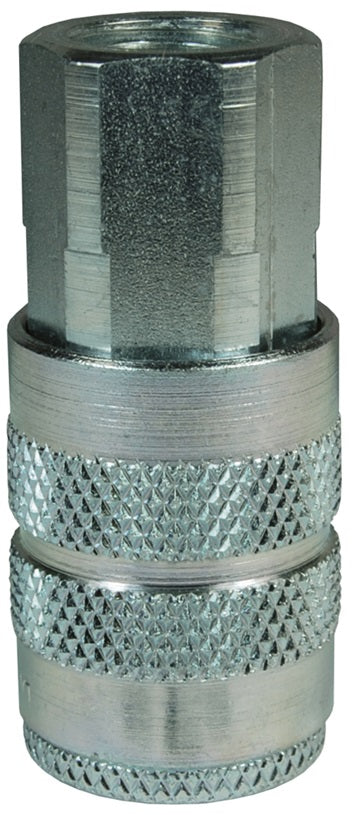

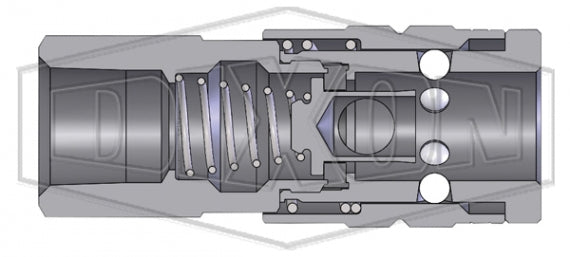

Pneumatic Coupling: F-Series Manual Industrial Interchange Coupler (Female Threads)

Product Data:

Series:
  • F-Series
Shape:

Straight

Ends Configuration:
  • 1/2in Female ISO-6150 Series B Industrial Pneumatic QD Interchange
  • 1/2in Female NPTF
Compatibility & Interchange:
  • Foster 3, 4, 5 and 6 Series
  • Parker 20-Series Manual Interchange
  • Hansen 1000, 400 and 500
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Nitrile (Nitrile Rubber) seals are standard.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel sleeve and steel tubular valve.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
D-Series | Automatic Industrial Interchange Socket/Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Thread Material Length Max.
OD		 Hex Max. Working
Pressure		 Burst
Pressure
Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:		 Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:
2FF1-B Socket/Female 1/4" 1/8" - 27 Female NPTF Brass 1.91"
(48.6mm)		 0.93"
(23.5mm)		 3/4" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
2FBF1-B Socket/Female 1/4" 1/8" - 28 Female BSPP Brass 1.91"
(48.6mm)		 0.93"
(23.5mm)		 3/4" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
2FF2 Socket/Female 1/4" 1/4" - 18 Female NPTF Steel 2.07"
(52.6mm)		 0.93"
(23.5mm)		 3/4" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 6,500 PSI
(448 bar)
2FF2-B Socket/Female 1/4" 1/4" - 18 Female NPTF Brass 2.07"
(52.6mm)		 0.93"
(23.5mm)		 3/4" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
2FF2-S Socket/Female 1/4" 1/4" - 18 Female NPTF 303 Stainless 2.07"
(52.6mm)		 0.93"
(23.5mm)		 3/4" 303 S.S. Coupler & 303 S.S. Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Plug: 11,500 PSI
(795 bar)
2FBF2-B Socket/Female 1/4" 1/4" - 19 Female BSPP Brass 2.07"
(52.6mm)		 0.93"
(23.5mm)		 3/4" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
2FF3-B Socket/Female 1/4" 3/8" - 18 Female NPTF Brass 2.10"
(53.4mm)		 0.93"
(23.5mm)		 13/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
2FF3-S Socket/Female 1/4" 3/8" - 18 Female NPTF 303 Stainless 2.10"
(53.4mm)		 0.93"
(23.5mm)		 13/16" 303 S.S. Coupler & 303 S.S. Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Plug: 11,500 PSI
(795 bar)
2FBF3-B Socket/Female 1/4" 3/8" - 19 Female BSPP Brass 2.13"
(54.2mm)		 0.93"
(23.5mm)		 13/16" 300 PSI
(20 bar)		 500 PSI
(35 bar)		 8,500 PSI
(586 bar)		 9,000 PSI
(620 bar)
3FF2 Socket/Female 3/8" 1/4" - 18 Female NPTF Steel 2.41"
(61.2mm)		 1.13"
(28.6mm)		 7/8" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 19,500 PSI
(1,345 bar)
3FF3 Socket/Female 3/8" 3/8" - 18 Female NPTF Steel 2.41"
(61.2mm)		 1.13"
(28.6mm)		 7/8" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 19,500 PSI
(1,345 bar)
3FF3-S Socket/Female 3/8" 3/8" - 18 Female NPTF 303 Stainless 2.41"
(61.2mm)		 1.13"
(28.6mm)		 7/8" 303 S.S. Coupler & 303 S.S. Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Plug: 20,500 PSI
(1,415 bar)
3FBF3 Socket/Female 3/8" 3/8" - 19 Female BSPP Steel 2.42"
(61.5mm)		 1.13"
(28.6mm)		 7/8" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 19,500 PSI
(1,345 bar)
3FF4 Socket/Female 3/8" 1/2" - 14 Female NPTF Steel 2.63"
(66.9mm)		 1.13"
(28.6mm)		 1" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 19,500 PSI
(1,345 bar)
4FF3** Socket/Female 1/2" 3/8" - 18 Female NPTF Steel 2.85"
(72.5mm)		 1.24"
(31.4mm)		 1" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 15,500 PSI
(1,070 bar)
4FF4** Socket/Female 1/2" 1/2" - 14 Female NPTF Steel 3.06"
(77.8mm)		 1.24"
(31.4mm)		 1" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 15,500 PSI
(1,070 bar)
4FF4-S Socket/Female 1/2" 1/2" - 14 Female NPTF 303 Stainless 3.06"
(77.8mm)		 1.24"
(31.4mm)		 1" 303 S.S. Coupler & 303 S.S. Plug: 500 PSI
(35 bar)		 303 S.S. Coupler & 303 S.S. Plug: 15,000 PSI
(1,035 bar)
4FBF4 Socket/Female 1/2" 1/2" - 14 Female BSPP Steel 3.09"
(78.4mm)		 1.24"
(31.4mm)		 1" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 15,500 PSI
(1,070 bar)
4FF6** Socket/Female 1/2" 3/4" - 14 Female NPTF Steel 3.15"
(79.9mm)		 1.24"
(31.4mm)		 1-3/16" Steel Coupler & Steel Plug: 500 PSI
(35 bar)		 Steel Coupler & Steel Plug: 15,500 PSI
(1,070 bar)

** Can be used with DQC J-series Automotive plugs

DF-Series | Industrial Interchange Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Thread Material Length Max.
OD		 Hex Working Pressure / Burst Pressure
when Connected to:
D2F1 Plug/Male 1/4" 1/8" - 27 Female NPTF Steel 1.44"
(36.6mm)		 0.65"
(16.5mm)		 9/16"
  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
  • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 9,000 PSI (620 bar) Burst
  • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar) Burst
    D2F2 Plug/Male 1/4" 1/4" - 18 Female NPTF Steel 1.66"
    (42.2mm)    		 0.79"
    (20.1mm)    		 11/16"
    • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
    • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 9,000 PSI (620 bar) Burst
    • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar) Burst
      D2F2-B Plug/Male 1/4" 1/4" - 18 Female NPTF Brass 1.66"
      (42.2mm)      		 0.79"
      (20.1mm)      		 11/16"
      • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
      • Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) | Burst: 8,500 PSI (586 bar) Burst
        D2F2-S Plug/Male 1/4" 1/4" - 18 Female NPTF 303 Stainless 1.66"
        (42.2mm)        		 0.79"
        (20.1mm)        		 11/16"
        • 303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 26,000 PSI (1,795 bar)
        • 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (795 bar)
          D2BF2 Plug/Male 1/4" 1/4" - 19 Female BSPP Steel 1.66"
          (42.2mm)          		 0.79"
          (20.1mm)          		 11/16"
          • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
          • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 9,000 PSI (620 bar)
          • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
            D2F3 Plug/Male 1/4" 3/8" - 18 Female NPTF Steel 1.66"
            (42.2mm)            		 1.01"
            (25.7mm)            		 7/8"
            • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
            • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 9,000 PSI (620 bar)
            • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
              D2F3-B Plug/Male 1/4" 3/8" - 18 Female NPTF Brass 1.66"
              (42.2mm)              		 1.01"
              (25.7mm)              		 7/8"
              • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
              • Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) | Burst: 8,500 PSI (586 bar)
                D2F3-S Plug/Male 1/4" 3/8" - 18 Female NPTF 303 Stainless 1.66"
                (42.2mm)                		 1.01"
                (25.7mm)                		 7/8"
                • 303 S.S. D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 26,000 PSI (1,795 bar)
                • 303 S.S. F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (795 bar)
                  D2BF3 Plug/Male 1/4" 3/8" - 19 Female BSPP Steel 1.66"
                  (42.2mm)                  		 1.01"
                  (25.7mm)                  		 7/8"
                  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 16,000 PSI (1,100 bar)
                  • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 9,000 PSI (620 bar)
                  • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 6,500 PSI (448 bar)
                    D3F2 Plug/Male 3/8" 1/4" - 18 Female NPTF Steel 1.78"
                    (45.2mm)                    		 0.79"
                    (20.1mm)                    		 11/16"
                    • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                    • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                    • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                      D3F3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 1.78"
                      (45.2mm)                      		 1.01"
                      (25.7mm)                      		 7/8"
                      • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                      • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                      • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                        D3F3-B Plug/Male 3/8" 3/8" - 18 Female NPTF Brass 1.78"
                        (45.2mm)                        		 1.01"
                        (25.7mm)                        		 7/8"
                        • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,500 PSI (1,000 bar)
                        • Brass F-Series Manual Couplers: Max. Working: 300 PSI (20 bar) | Burst: 10,000 PSI (690 bar)
                          D3F3-S Plug/Male 3/8" 3/8" - 18 Female NPTF 303 Stainless 1.78"
                          (45.2mm)                          		 1.01"
                          (25.7mm)                          		 7/8"
                          • 303 Stainless Steel D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 25,500 PSI (1,760 bar)
                          • 303 Stainless Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 20,500 PSI (1,415 bar)
                            D3BF3 Plug/Male 3/8" 3/8" - 19 Female BSPP Steel 1.78"
                            (45.2mm)                            		 1.01"
                            (25.7mm)                            		 7/8"
                            • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                            • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                            • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                              D3F4 Plug/Male 3/8" 1/2" - 14 Female NPTF Steel 1.94"
                              (49.3mm)                              		 1.16"
                              (29.5mm)                              		 1"
                              • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                              • Brass F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 11,500 PSI (790 bar)
                              • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 19,500 PSI (1,345 bar)
                                D4F3 Plug/Male 1/2" 3/8" - 18 Female NPTF Steel 2.10"
                                (53.3mm)                                		 1.01"
                                (25.7mm)                                		 7/8"
                                • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                  D4F4 Plug/Male 1/2" 1/2" - 14 Female BSPP Steel 2.27"
                                  (57.7mm)                                  		 1.16"
                                  (29.5mm)                                  		 1"
                                  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                  • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                    D4F4-B Plug/Male 1/2" 1/2" - 14 Female NPTF Brass 2.27"
                                    (57.7mm)                                    		 1.16"
                                    (29.5mm)                                    		 1"
                                    • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,500 PSI (725 bar)
                                      D4F4-S Plug/Male 1/2" 1/2" - 14 Female NPTF 303 Stainless 2.27"
                                      (57.7mm)                                      		 1.16"
                                      (29.5mm)                                      		 1"
                                      • 303 S.S D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 20,500 PSI (1,415 bar)
                                      • 303 S.S F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,000 PSI (1,035 bar)
                                        D4BF4 Plug/Male 1/2" 1/2" - 14 Female BSPP Steel 2.27"
                                        (57.7mm)                                        		 1.16"
                                        (29.5mm)                                        		 1"
                                        • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                        • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                          D4F6 Plug/Male 1/2" 3/4" - 14 Female NPTF Steel 2.30"
                                          (58.4mm)                                          		 1.37"
                                          (34.8mm)                                          		 1-3/16"
                                          • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 14,000 PSI (965 bar)
                                          • Steel F-Series Manual Couplers: Max. Working: 500 PSI (35 bar) | Burst: 15,500 PSI (1,070 bar)
                                            D4F6-B Plug/Male 1/2" 3/4" - 14 Female NPTF Brass 2.30"
                                            (58.4mm)                                            		 1.37"
                                            (34.8mm)                                            		 1-3/16"
                                            • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,500 PSI (725 bar)
                                              D6F4 Plug/Male 3/4" 1/2" - 14 Female NPTF Steel 2.22"
                                              (56.4mm)                                              		 1.52"
                                              (38.6mm)                                              		 1-5/16"
                                              • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (670 bar)
                                                D6F6 Plug/Male 3/4" 3/4" - 14 Female NPTF Steel 2.22"
                                                (56.4mm)                                                		 1.52"
                                                (38.6mm)                                                		 1-5/16"
                                                • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (670 bar)
                                                  D6F8 Plug/Male 3/4" 1" - 11-1/2 Female NPTF Steel 2.41"
                                                  (61.2mm)                                                  		 1.80"
                                                  (45.7mm)                                                  		 1-9/16"
                                                  • Brass D-Series Automatic Couplers: Max. Working: 500 PSI (35 bar) | Burst: 10,000 PSI (670 bar)

                                                    Dixon Valve & Coupling

                                                    Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

                                                    Explore Dixon Valve & Coupling

                                                    You may also like
