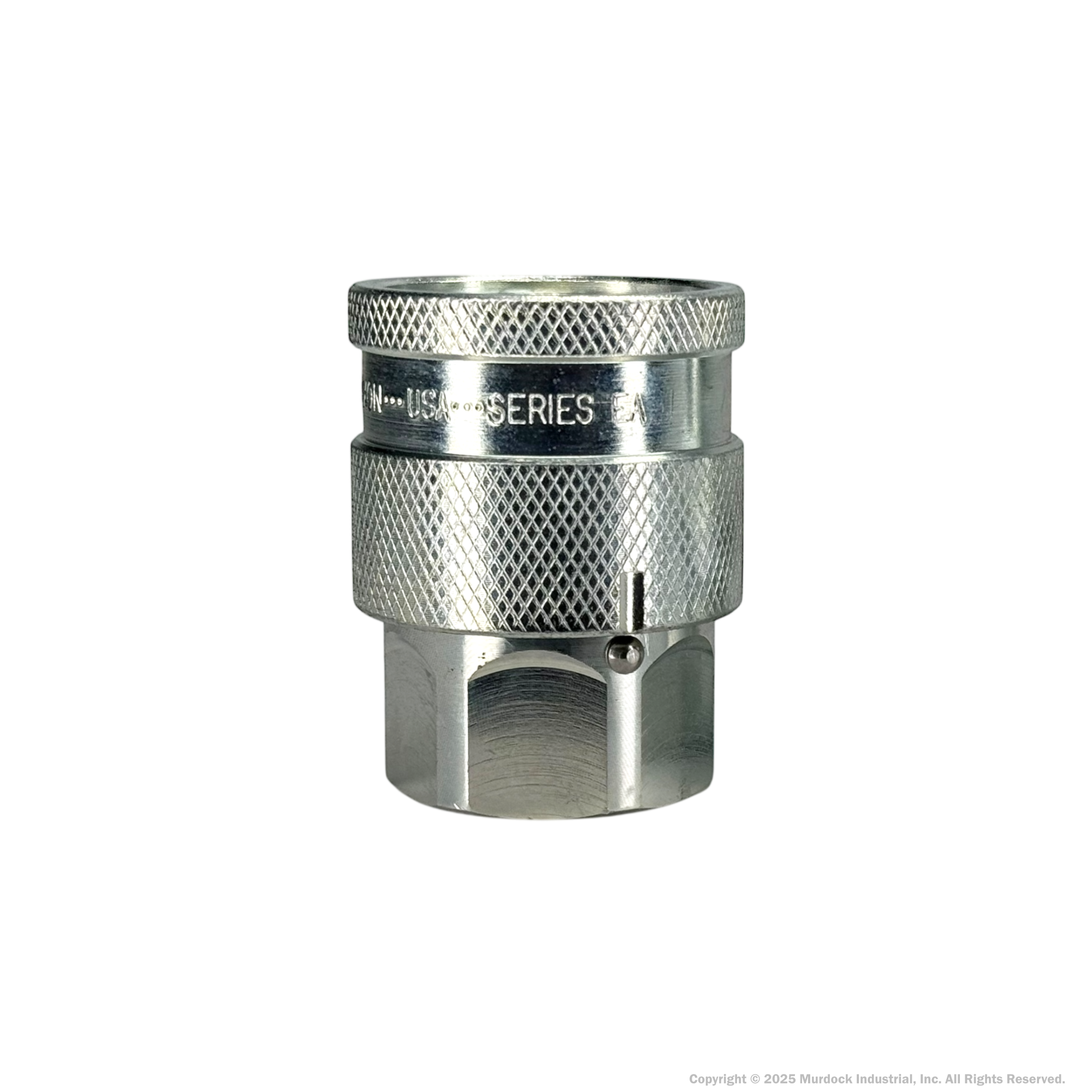

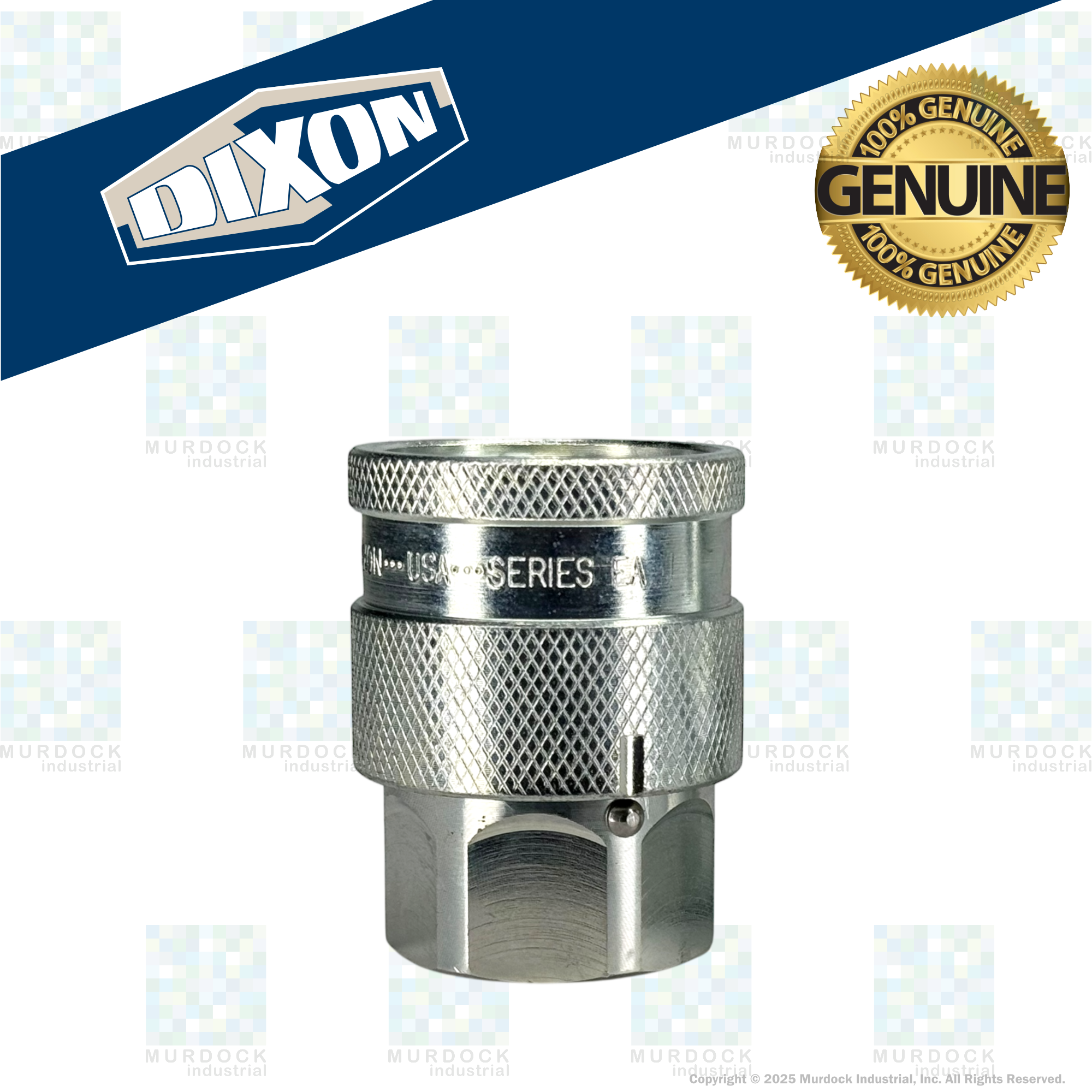

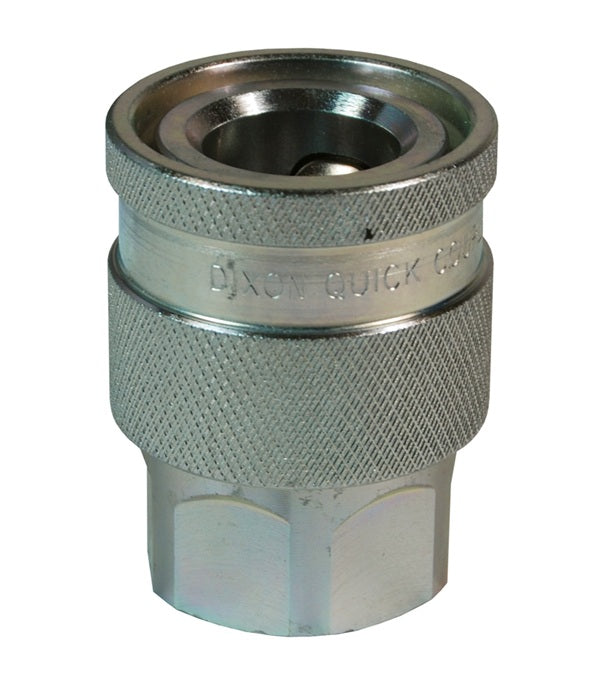

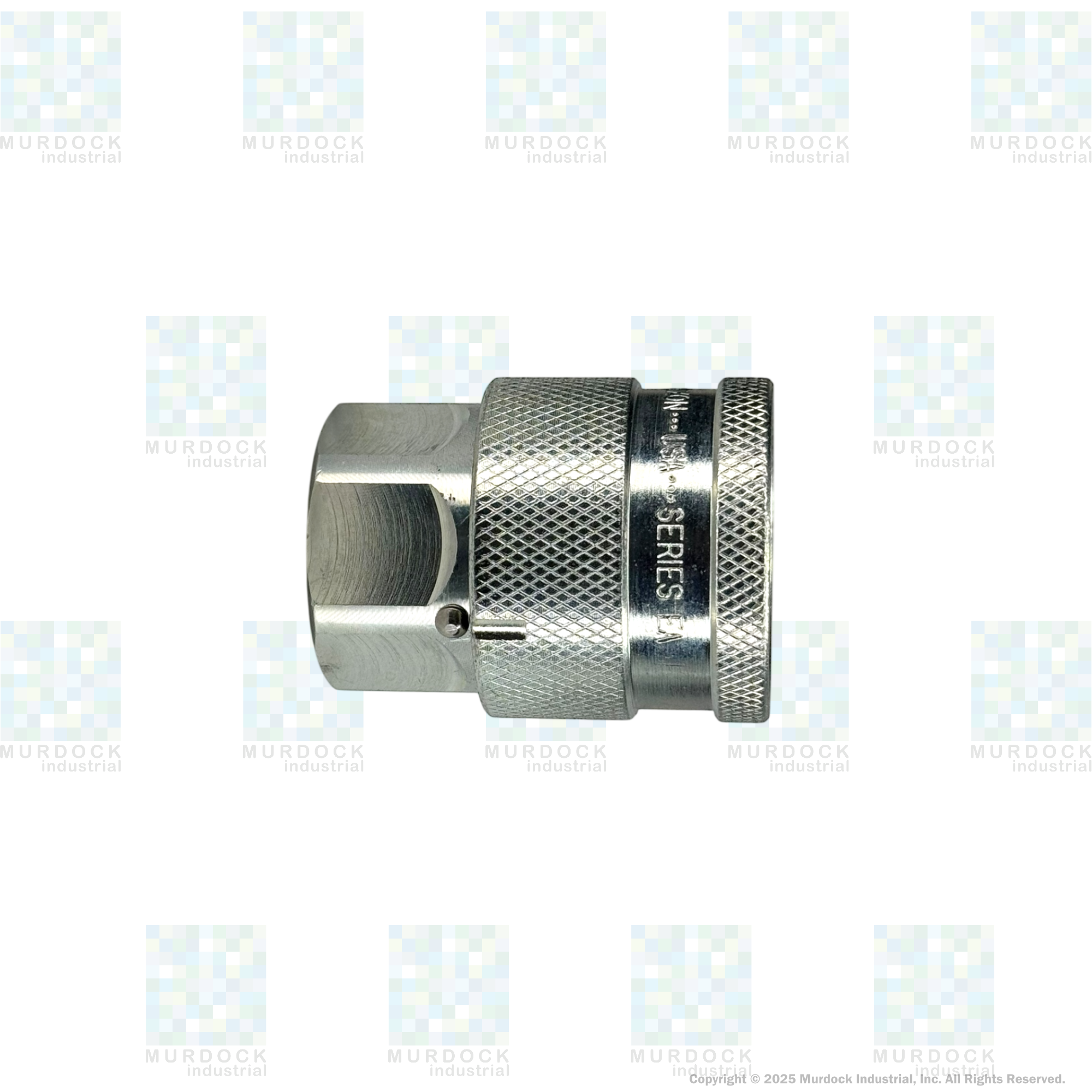

4EAF4 by Dixon Valve | Hydraulic Quick Disconnect Coupling | EA-Series | 1/2" Female NPTF x 1/2" Water-Blast Interchange | Socket | Nitrile Seal | Steel
4EAF4 by Dixon Valve | Hydraulic Quick Disconnect Coupling | EA-Series | 1/2" Female NPTF x 1/2" Water-Blast Interchange | Socket | Nitrile Seal | Steel
4EAF4 by Dixon Valve | Hydraulic Quick Disconnect Coupling | EA-Series | 1/2" Female NPTF x 1/2" Water-Blast Interchange | Socket | Nitrile Seal | Steel
4EAF4 by Dixon Valve | Hydraulic Quick Disconnect Coupling | EA-Series | 1/2" Female NPTF x 1/2" Water-Blast Interchange | Socket | Nitrile Seal | Steel
4EAF4 by Dixon Valve | Hydraulic Quick Disconnect Coupling | EA-Series | 1/2" Female NPTF x 1/2" Water-Blast Interchange | Socket | Nitrile Seal | Steel
4EAF4 by Dixon Valve | Hydraulic Quick Disconnect Coupling | EA-Series | 1/2" Female NPTF x 1/2" Water-Blast Interchange | Socket | Nitrile Seal | Steel
4EAF4 by Dixon Valve | Hydraulic Quick Disconnect Coupling | EA-Series | 1/2" Female NPTF x 1/2" Water-Blast Interchange | Socket | Nitrile Seal | Steel
4EAF4 by Dixon Valve | Hydraulic Quick Disconnect Coupling | EA-Series | 1/2" Female NPTF x 1/2" Water-Blast Interchange | Socket | Nitrile Seal | Steel
4EAF4 by Dixon Valve | Hydraulic Quick Disconnect Coupling | EA-Series | 1/2" Female NPTF x 1/2" Water-Blast Interchange | Socket | Nitrile Seal | Steel

4EAF4 by Dixon Valve | Hydraulic Quick Disconnect Coupling | EA-Series | 1/2" Female NPTF x 1/2" Water-Blast Interchange | Socket | Nitrile Seal | Steel

Sale price$78.78

Dixon Valve & Coupling
Hydraulic Coupling: EA-Series Water-Blast Interchange Coupler (Female Threads)
Buy More, Save More!
Quantity Price Each
5–19 $74.05
20–59 $66.96
60+ $63.02
Discounts applied in cart/checkout.
Compatibility & Interchange:
  • Water-blast interchange
  • Parker Series-WB and Danfoss/Eaton/Aeroquip FD69
Construction:
  • Machined components are manufactured using solid high strength steel bar stock.
  • Stainless steel springs and retaining rings maximize corrosion resistance and extend service life.
  • Latches are manufactured from high-strength steel and plated with electroless nickel.
  • Steel plugs are machined from solid high strength steel bar stock and hardened.
  • Machined steel componentry is plated using ROHS compliant trivalent chrome.
Seal Components:
  • Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C).

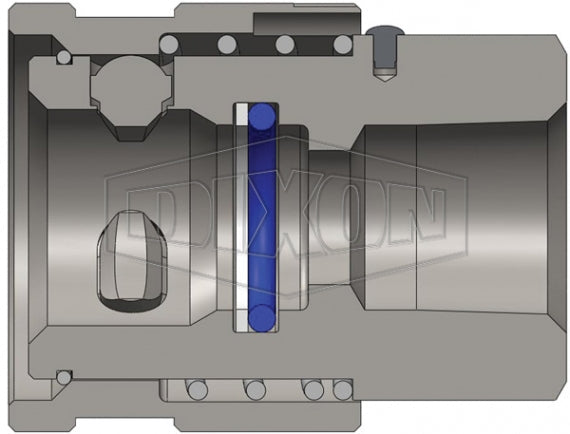

  • Couplers have a PTFE anti-extrusion ring, providing resistance to O-ring dynamic impulse pressure damage.
Additional Information:
EA-Series | Water-Blast Interchange (Connected) Rated Pressure Chart
Body
Size		 Coupler/Plug Locking Mechanism Flow
ΔP = 40 PSI
Max. Working Burst
1/2" 10,000 PSI
(700 Bar)		 30,000 PSI
(2,100 Bar)		 Maxi-Latch 40 GPM
EA-Series | Water-Blast Interchange Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Thread Size Material Length Max.
OD		 Hex
4EAF3 Socket/Female NPTF 1/2" 3/8" - 18 Female Steel 2.20"
(55.9mm)		 1.62"
(41.1mm)		 1-1/4"

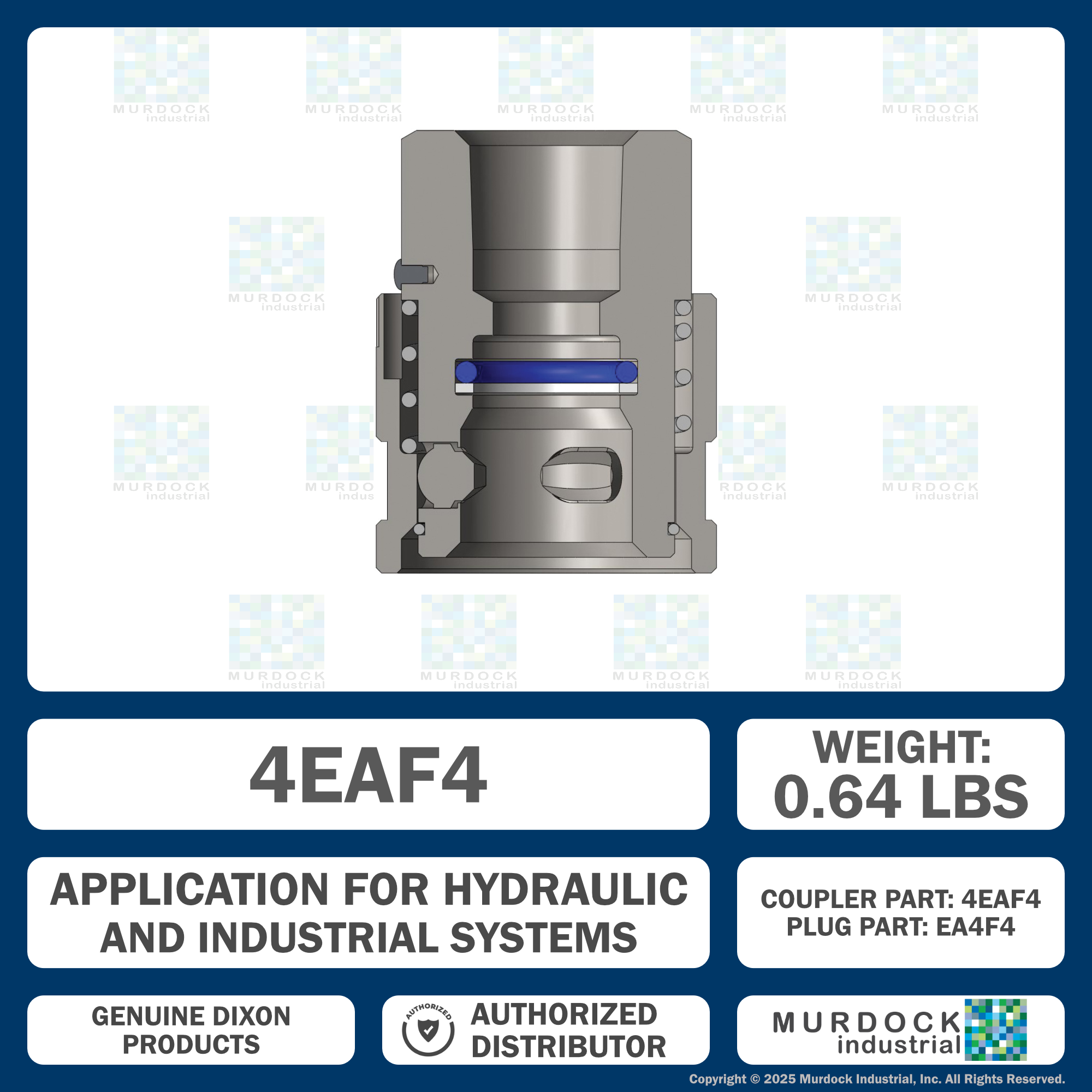

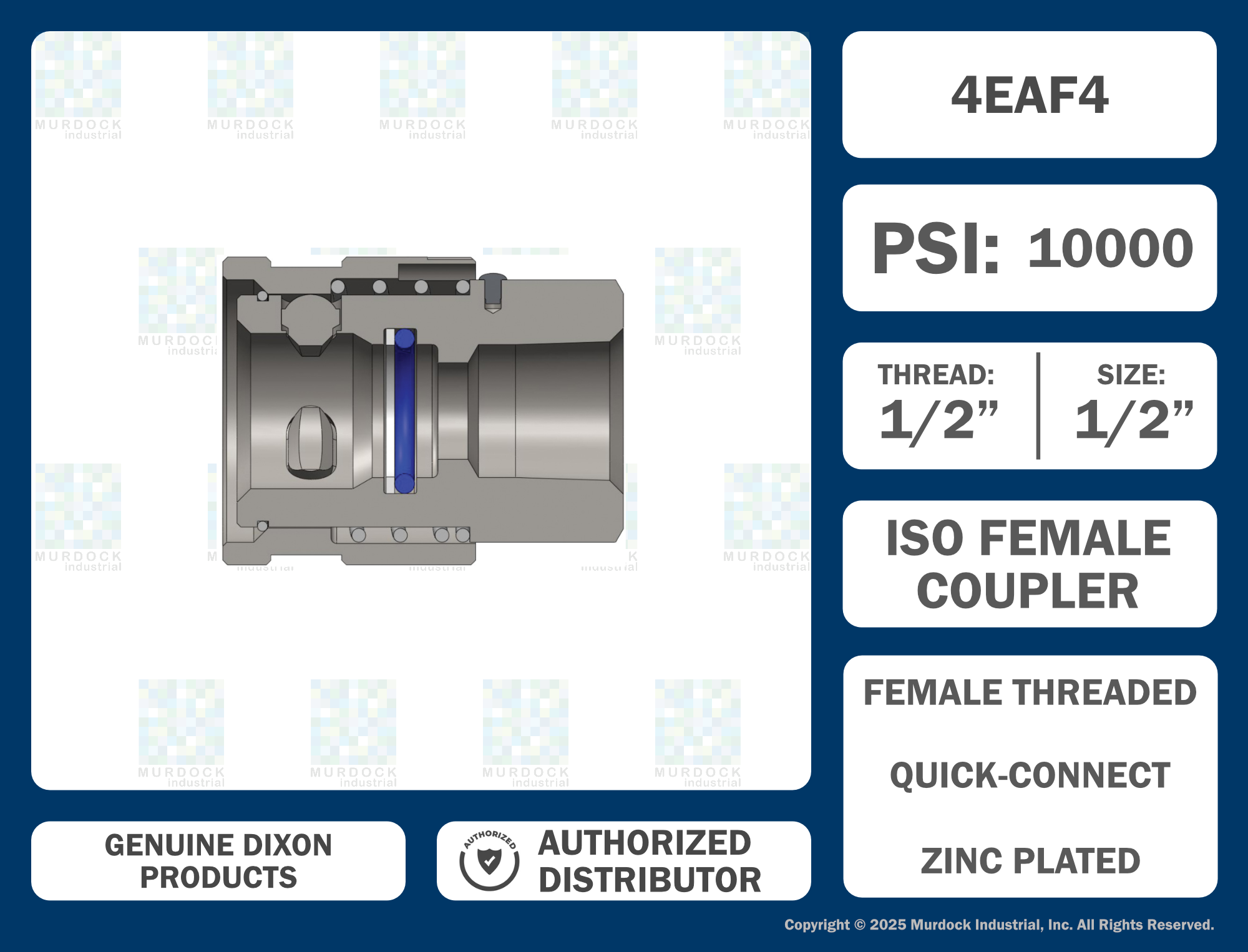

4EAF4 Socket/Female 1/2" 1/2" - 14 Female NPTF Steel 2.20"
(55.9mm)		 1.62"
(41.1mm)		 1-1/4"
EA-Series | Water-Blast Interchange Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Thread Size Material Length Max.
OD		 Hex
EA4F3 Plug/Male 1/2" 3/8" - 18 Female NPTF Steel 2.35"
(59.7mm)		 1.62"
(41.1mm)		 1-1/8"
EA4F4 Plug/Male 1/2" 1/2" - 14 Female NPTF Steel 2.35"
(59.7mm)		 1.62"
(41.1mm)		 1-1/8"

Product Data:

Series:
  • EA Series
Shape:

Straight

Ends Configuration:
  • 1/2in Female NPTF
  • 1/2in Female Water-Blast QD Interchange

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
