4SH81-24x24 by Couplamatic | Grip Crimp 4SH Series Coupling Flange | 1-1/2" Hose ID x 1-1/2" Extra Heavy Duty Flange Size | 45° Elbow | Trivalent Zinc Plating | for use on Caterpillar® Equipment

4SH81-24x24 by Couplamatic | Grip Crimp 4SH Series Coupling Flange | 1-1/2" Hose ID x 1-1/2" Extra Heavy Duty Flange Size | 45° Elbow | Trivalent Zinc Plating | for use on Caterpillar® Equipment

Sale price$114.65

Couplamatic Systems Inc.
Grip Crimp 4SH Series - No-Skive Couplings - Extra Heavy Duty Flange - 45° Bend For use on Caterpillar® Equipment
Buy More, Save More!
Quantity Price Each
5–19 $107.77
20–59 $97.45
60+ $85.99
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4SH Series
Shape:

45 Degree

Ends Configuration:
  • 1-1/2in Caterpillar Flange
  • 1-1/2in Hose Barb
Description:
  • The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

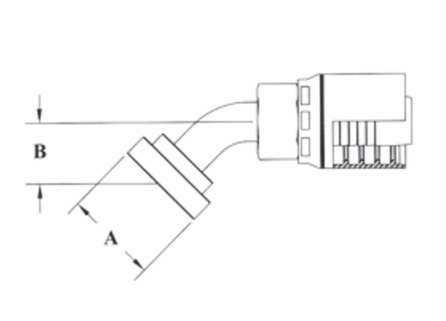

    Part Number Hose ID Flange Size A-DiaInches B-Drop
    4SH81-20x20 1-1/4" 1-1/4" 2.12" 1.50"
    4SH81-24x24 1-1/2" 1-1/2" 2.50" 1.75"

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
