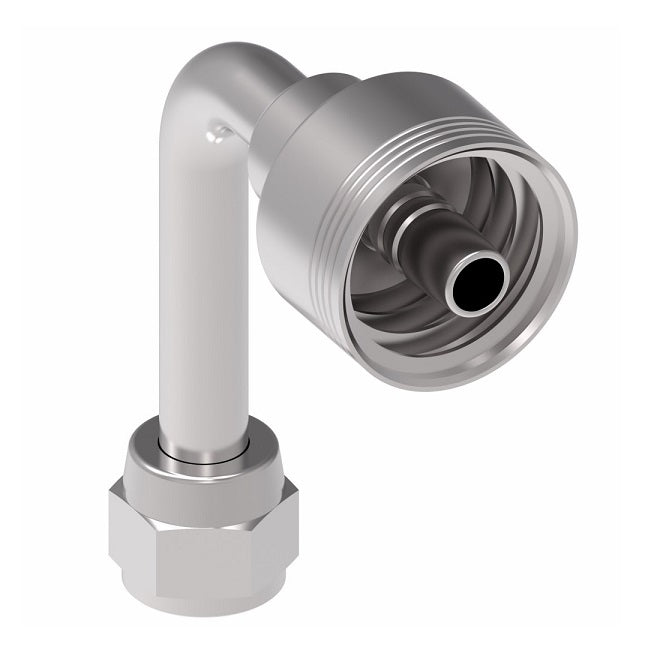

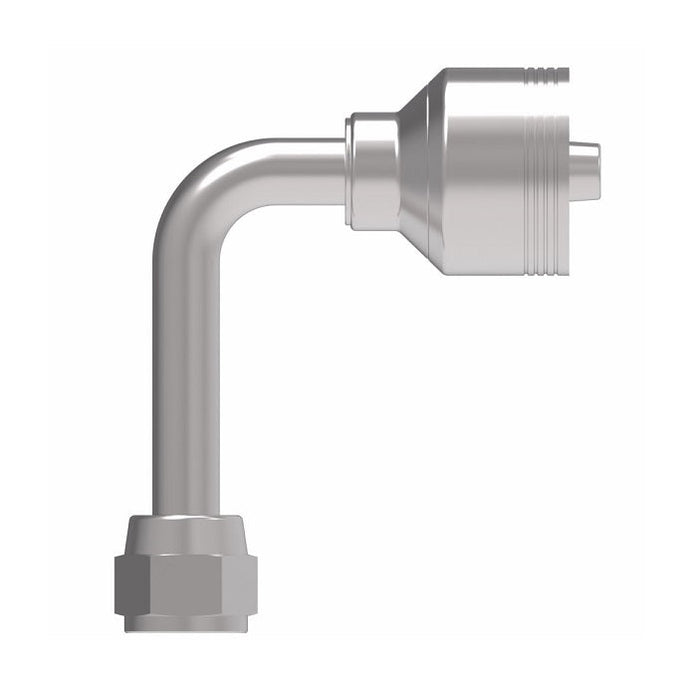

4SA8FJC8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel 90° Long Drop Elbow (FJC) Crimp Fitting | -08 Female JIC 37° Swivel x -08 Hose Barb | Steel
4SA8FJC8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel 90° Long Drop Elbow (FJC) Crimp Fitting | -08 Female JIC 37° Swivel x -08 Hose Barb | Steel
4SA8FJC8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel 90° Long Drop Elbow (FJC) Crimp Fitting | -08 Female JIC 37° Swivel x -08 Hose Barb | Steel

4SA8FJC8 Aeroquip by Danfoss | 4 Wire 4S Female JIC 37° Swivel 90° Long Drop Elbow (FJC) Crimp Fitting | -08 Female JIC 37° Swivel x -08 Hose Barb | Steel

Sale price$45.12

Aeroquip® by Danfoss
4 Wire 4S Female JIC/37° Swivel Long Drop Crimp Fitting (FJC) - 90° Elbow
Buy More, Save More!
Quantity Price Each
10–39 $42.41
40–79 $38.35
80+ $33.84
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
Shape:

Straight

Ends Configuration:
  • 1/2in Female JIC
  • 1/2in Hose Barb
Technical Info:
Note:
  • When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.
    The 45° and 90° elbow configurations in the -12 size meet a 3.2:1 burst
    The 45° and 90° elbow configurations in the -16 size achieve a 2.8:1 burst
    The 45° and 90° elbow configurations in the -20 size meet a 4:1 burst
    The 45° & 90° elbow configurations in the -24 size meet a 2.4:1 burst.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
4SA6FJC6 -06 - -06 9/16-18 2.13" 1.22" 0.24" 2.18" 11/16"
4SA8FJC8 -08 - -08 - - - - - -
4SA10FJC8 -10 - -08 7/8-14 2.78" 1.70" 0.37" 3.39" 1"
4SA12FJC12 -12 19 -12 1-1/16-12 3.99" 2.57" 0.56" 3.78" 1-1/4"
4SA16FJC16 -16 25 -16 1-5/16-12 4.43" 2.89" 0.75" 4.49" 1-1/2"
4SA20FJC20 -20 31 -20 1-5/8-12 5.22" 3.05" 0.99" 5.08" 2"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
