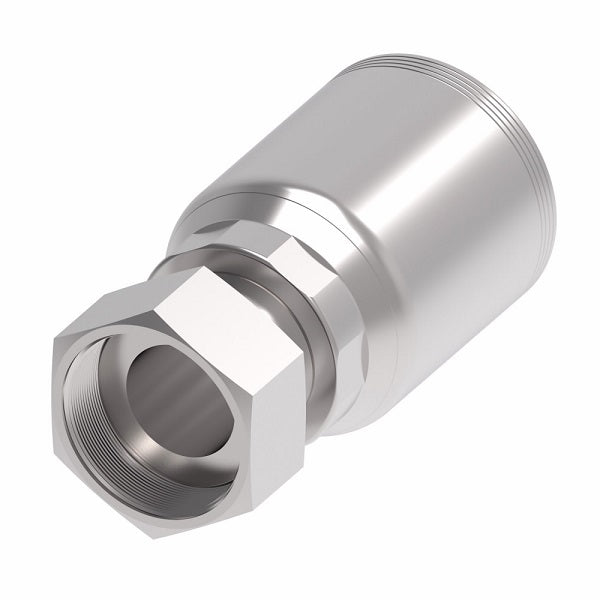

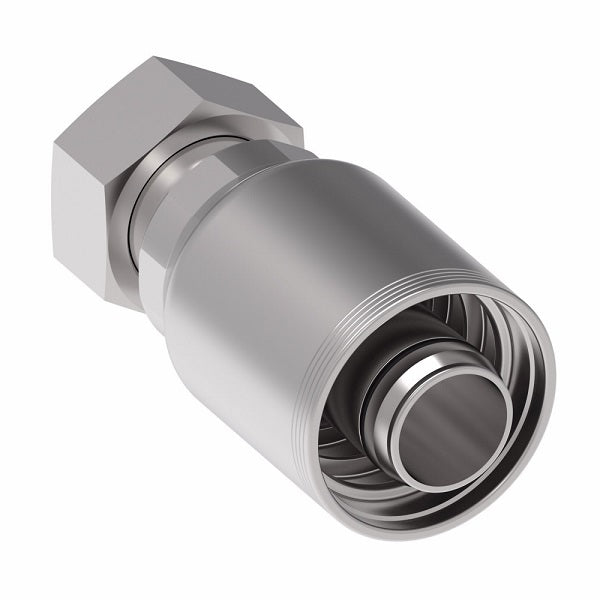

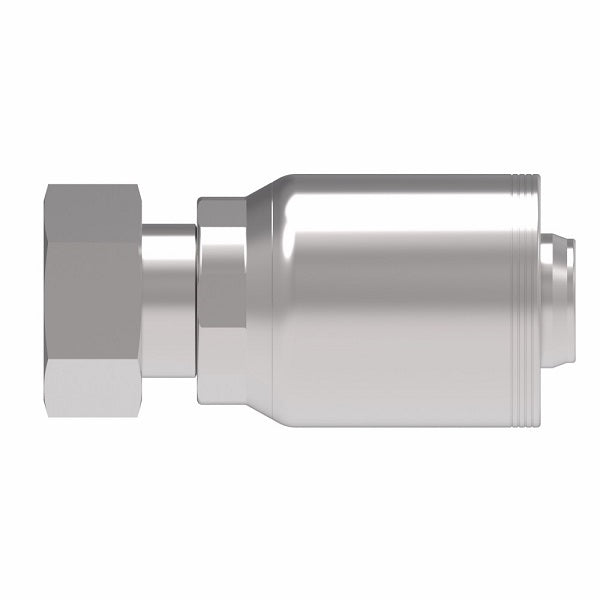

4SA24FR24 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel
AeroquipĀ® by Danfoss
4 Wire 4S Female ORS Swivel Crimp Fitting (FR) - Straight
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20ā29 | $158.94 |
| 30ā59 | $143.72 |
| 60+ | $126.81 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Thread | A | D | EĆ | Hex 1 |
Hex 2 |
|
| Dash Size | DN | Dash Size | |||||||
| 4SA6FR6 | -06 | - | -06 | 11/16-16 | 2.07" | 1.24" | 0.26" | 13/16" | 11/16" |
| 4SA8FR6 | -08 | - | -06 | 13/16-16 | 2.14" | 1.32" | 0.26" | 15/16" | 11/16" |
| 4SA6FR8 | -06 | - | -08 | 11/16-16 | 2.41" | 1.34" | 0.26" | 13/16" | 7/8" |
| 4SA8FR8 | -08 | - | -08 | 13/16-16 | 2.61" | 1.50" | 0.36" | 15/16" | 7/8" |
| 4SA10FR8 | -10 | - | -08 | 1-14 | 2.57" | 1.47" | 0.38" | 1-1/8" | 7/8" |
| 4SA10FR10 | -10 | - | -10 | 1-14 | 2.62" | 1.61" | 0.45" | 1-1/8" | 1-1/16" |
| 4SA12FR8 | -12 | - | -08 | - | - | - | - | - | - |
| 4SA12FR10 | -12 | - | -10 | 1-3/16-12 | 2.65" | 1.63" | 0.50" | 1-3/8" | 1-1/16" |
| 4SA10FR12 | -10 | 19 | -12 | 1-14 | 2.93" | 1.50" | 0.56" | 1-3/16" | 1-1/8" |
| 4SA12FR12 | -12 | 19 | -12 | 1-3/16-12 | 3.05" | 1.62" | 0.56" | 1-3/16" | 1-3/8" |
| 4SA16FR12 | -16 | 19 | -12 | 1-7/16-12 | 3.12" | 1.70" | 0.56" | 1-3/16" | 1-5/8" |
| 4SA12FR16 | -12 | 25 | -16 | 1-3/16-12 | 3.17" | 1.61" | 0.76" | 1-5/8" | 1-3/8" |
| 4SA16FR16 | -16 | 25 | -16 | 1-7/16-12 | 3.24" | 1.68" | 0.76" | 1-5/8" | 1-5/8" |
| 4SA20FR16 | -20 | 25 | -16 | 1-11/16-12 | 3.24" | 1.68" | 0.76" | 1-5/8" | 1-7/8" |
| 4SA20FR20 | -20 | 31 | -20 | 1-11/16-12 | 3.90" | 1.72" | 0.99" | 1-13/16" | 1-7/8" |
| 4SA24FR24 | -24 | 38 | -24 | 2-12 | 4.95" | 1.87" | 1.22" | 2-1/4" | 2-1/4" |
