4SA16FJG16 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 60° Elbow (FJG) Crimp Fitting | -16 Female JIC/37° Swivel x -16 Hose Barb | Steel
4SA16FJG16 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 60° Elbow (FJG) Crimp Fitting | -16 Female JIC/37° Swivel x -16 Hose Barb | Steel
4SA16FJG16 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 60° Elbow (FJG) Crimp Fitting | -16 Female JIC/37° Swivel x -16 Hose Barb | Steel

4SA16FJG16 Aeroquip by Danfoss | 4 Wire 4S Female JIC/37° Swivel 60° Elbow (FJG) Crimp Fitting | -16 Female JIC/37° Swivel x -16 Hose Barb | Steel

Sale price$108.71

Aeroquip® by Danfoss

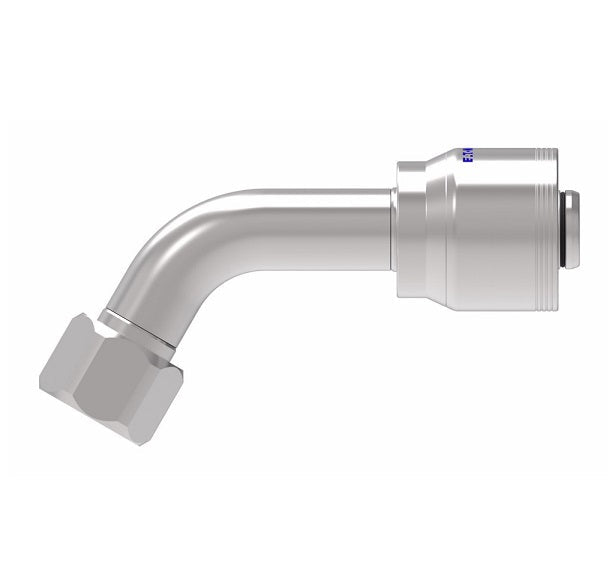

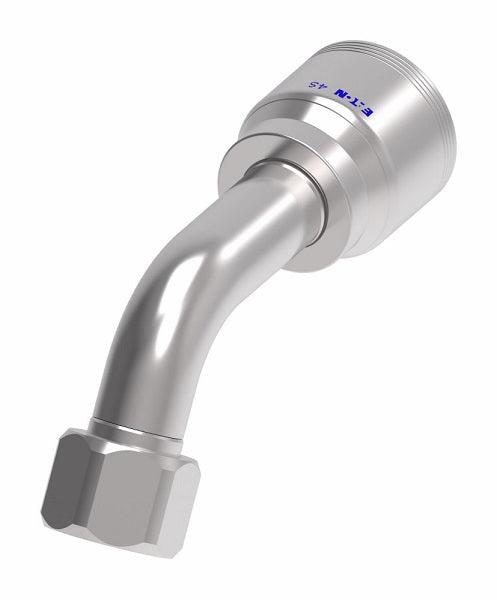

4 Wire 4S Female JIC/37° Swivel Crimp Fitting (FJG) - 60° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $102.19
20–59 $92.40
60+ $81.53
Discounts applied in cart/checkout.

Product Data:

Shape:

60 Degree

Ends Configuration:
  • 1in Female JIC
  • 1in Hose Barb
Material(s):
  • Steel
Technical Info:
Note:
  • When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst.
    The 45° and 90° elbow configurations in the -12 size meet a 3.2:1 burst
    The 45° and 90° elbow configurations in the -16 size achieve a 2.8:1 burst
    The 45° and 90° elbow configurations in the -20 size meet a 4:1 burst
    The 45° & 90° elbow configurations in the -24 size meet a 2.4:1 burst.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
4SA12FJG12 -12 19 -12 1-1/16-12 5.00" 3.58" 0.56" 1.53" 1-1/4"
4SA16FJG16 -16 25 -16 1-5/16-12 5.69" 4.12" 0.76" 1.87" 1-1/2"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
