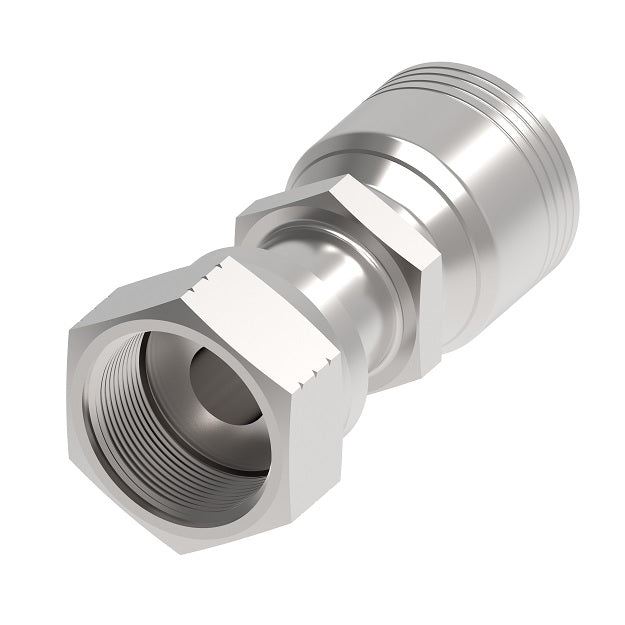

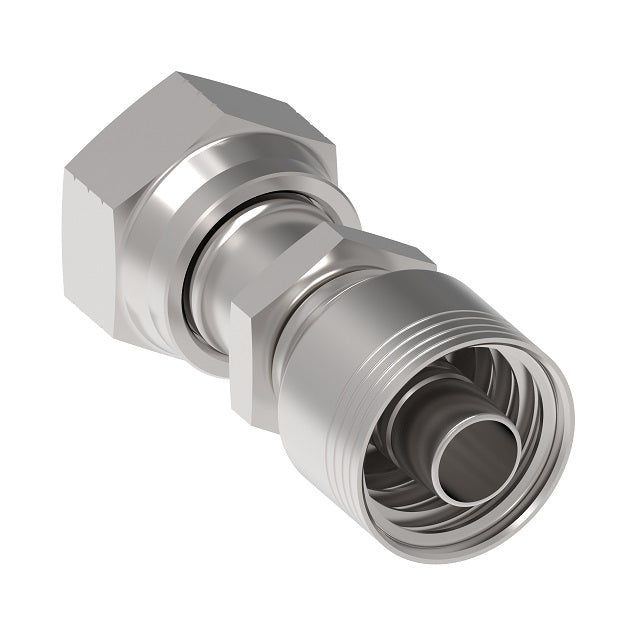

4S8FR10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x-10 Hose Barb | Steel
4S8FR10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x-10 Hose Barb | Steel
4S8FR10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x-10 Hose Barb | Steel

4S8FR10 Aeroquip by Danfoss | 4 Wire 4S Female ORS Swivel (FR) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x-10 Hose Barb | Steel

Sale price$112.80

AeroquipĀ® by Danfoss
4 Wire 4S Female ORS Swivel (FR) - Straight
Buy More, Save More!
Quantity Price Each
5ā€“19 $106.03
20ā€“59 $95.88
60+ $84.60
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
Shape:

Straight

Ends Configuration:
  • 1/2in Female O-Ring Face Seal
  • 5/8in Hose Barb
Technical Info:
Steel
Part Number 		Dash Size DN Hose Dash Size Thread A D EƘ Hex 1

 Hex 2
4S8FR10 -08 16 -10 13/16-16 2.54" 1.51" 0.36" 15/16" 15/16"
4S10FR10 -10 16 -10 1-14 2.62" 1.61" 0.45" 1-3/16" 1-1/16"
4S12FR10 -12 16 -10 1-3/16-12 2.66" 1.63" 0.50" 1-3/16" 1.42"
4S12FR12 -12 19 -12 1-3/16-12 - - - - -
4S12FR16 -12 25 -16 1-3/16-12 - - - - -
4S16FR12 -16 19 -12 1-7/16-12 - - - - -
4S16FR16 -16 25 -16 1-7/16-12 - - - - -
4S20FR20 -20 31 -20 1-11/16-12 - - - - -

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
