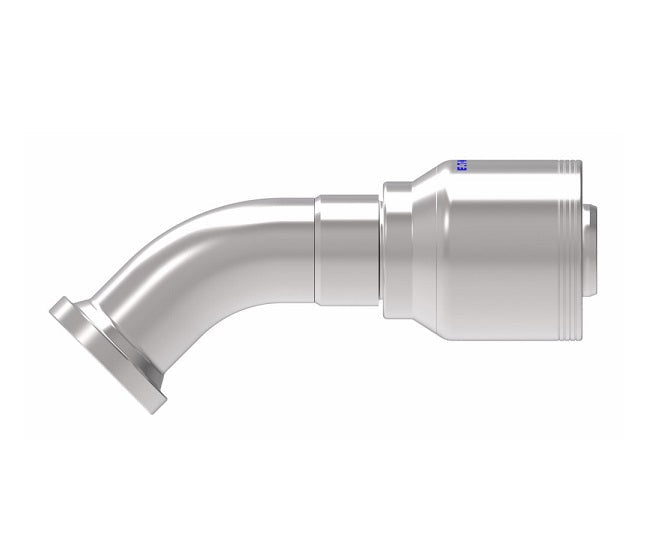

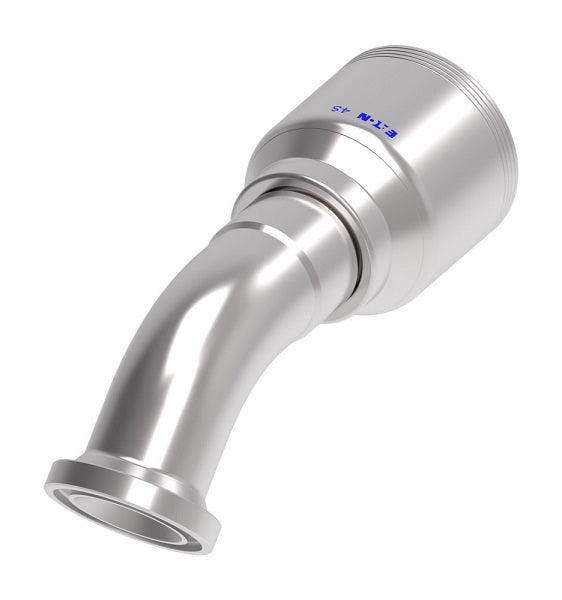

4S20FLF20 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 30° Elbow (FLF) Crimp Fitting | -20 Code 61 Flange x -20 Hose Barb | Steel
Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FLF) - 30° Elbow
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
Product Data:
Shape:
30 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | H | |
| Dash Size | DN | Dash Size | ||||||
| 4S8FLF8 | -08 | - | -08 | 1.19" | 3.32" | 2.15" | 0.37" | 0.50" |
| 4S12FLF12 | -12 | 19 | -12 | 1.50" | 4.70" | 3.28" | 0.56" | 0.65" |
| 4S16FLF12 | -16 | 19 | -12 | 1.75" | 5.30" | 3.87" | 0.56" | 0.76" |
| 4S16FLF16 | -16 | 25 | -16 | 1.75" | 5.42" | 3.85" | 0.76" | 0.76" |
| 4S20FLF16 | -20 | 25 | -16 | 2.00" | 6.23" | 4.67" | 0.76" | 0.92" |
| 4S20FLF20 | -20 | 31 | -20 | 2.00" | 6.88" | 4.71" | 0.99" | 0.92" |
| 4S24FLF20 | -24 | 31 | -20 | 2.38" | 6.69" | 4.52" | 0.99" | 0.95" |
| 4S24FLF24 | -24 | 38 | -24 | 2.37" | 8.80" | 5.72" | 1.22" | 1.06" |
| 4S32FLF32 | -32 | 51 | -32 | 2.81" | 10.47" | 7.39" | 1.66" | 1.34" |
