4S20CTA16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 45° Elbow (CTA) Crimp Fitting | -20 CAT Flange x -16 Hose Barb | Steel
4S20CTA16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 45° Elbow (CTA) Crimp Fitting | -20 CAT Flange x -16 Hose Barb | Steel
4S20CTA16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 45° Elbow (CTA) Crimp Fitting | -20 CAT Flange x -16 Hose Barb | Steel

4S20CTA16 Aeroquip by Danfoss | 4 Wire 4S CAT Flange 45° Elbow (CTA) Crimp Fitting | -20 CAT Flange x -16 Hose Barb | Steel

Sale price$155.24

Aeroquip® by Danfoss

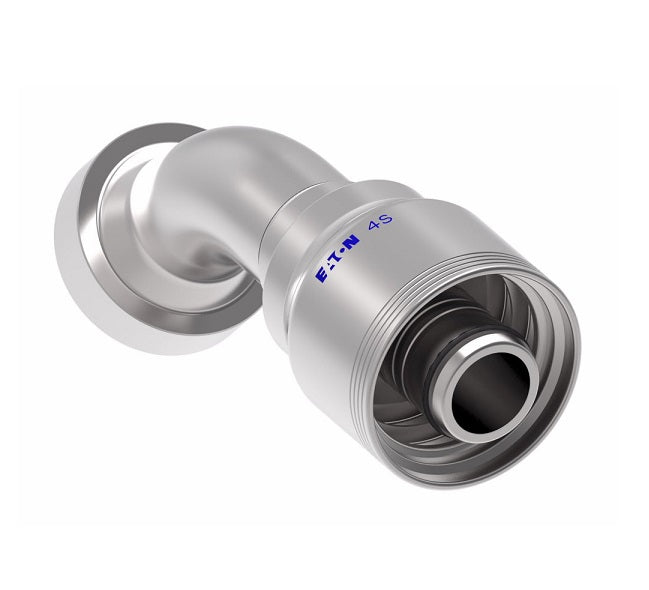

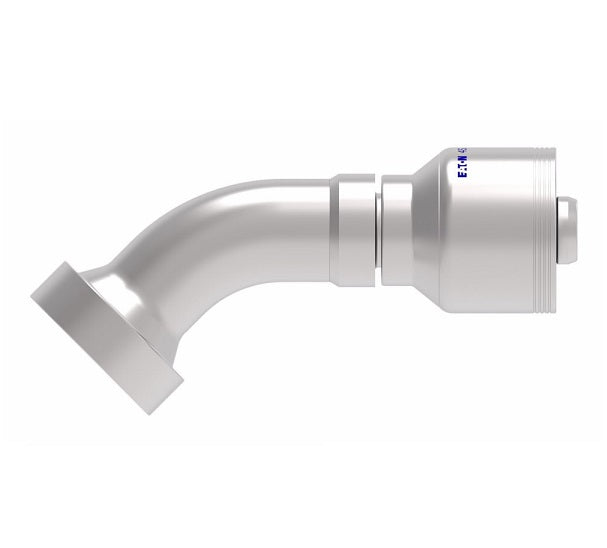

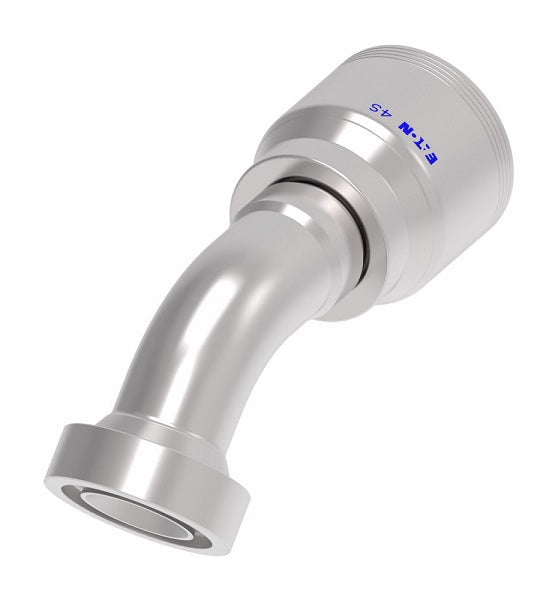

4 Wire 4S CAT Flange Crimp Fitting (CTA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Quantity Price Each
15–29 $147.48
30–59 $139.72
60+ $124.19
Discounts applied in cart/checkout.

Product Data:

Shape:

45 Degree

Ends Configuration:
  • 1-1/4in CAT Flange
  • 1in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
4S12CTA12 -12 19 -12 1.63" 4.63" 3.21" 0.56" 1.22"
4S16CTA12 -16 19 -12 1.87" 5.17" 3.74" 0.56" 1.39"
4S16CTA16 -16 25 -16 1.87" 5.29" 3.72" 0.76" 1.39"
4S20CTA16 -20 25 -16 2.13" 6.02" 4.46" 0.76" 1.65"
4S20CTA20 -20 31 -20 2.13" 6.67" 4.50" 0.99" 1.65"
4S24CTA24 -24 38 -24 2.50" 8.47" 5.40" 1.22" 1.82"
4S32CTA32 -32 51 -32 3.13" 10.04" 6.97" 1.66" 1.31"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
