Sale price$51.12

Aeroquip® by Danfoss

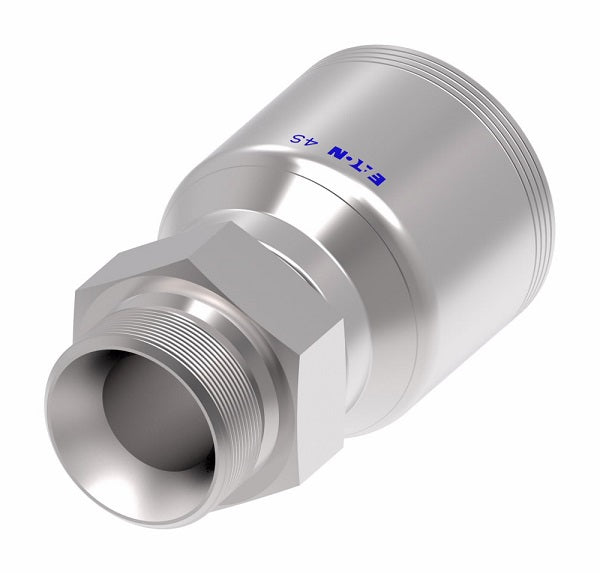

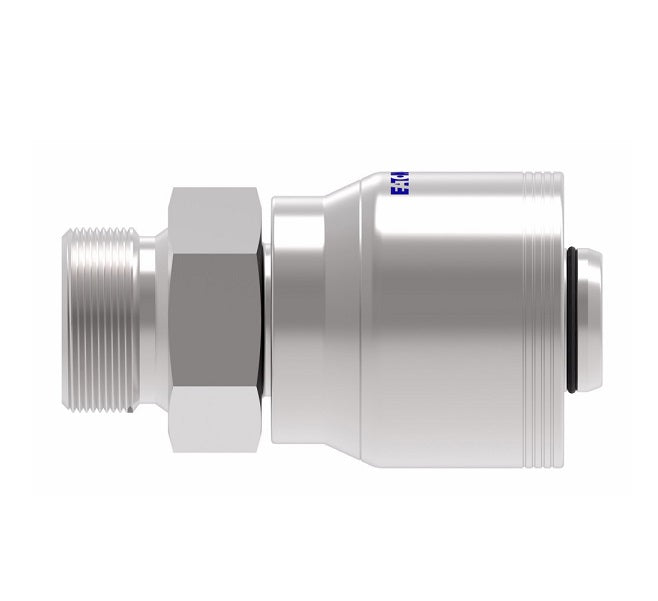

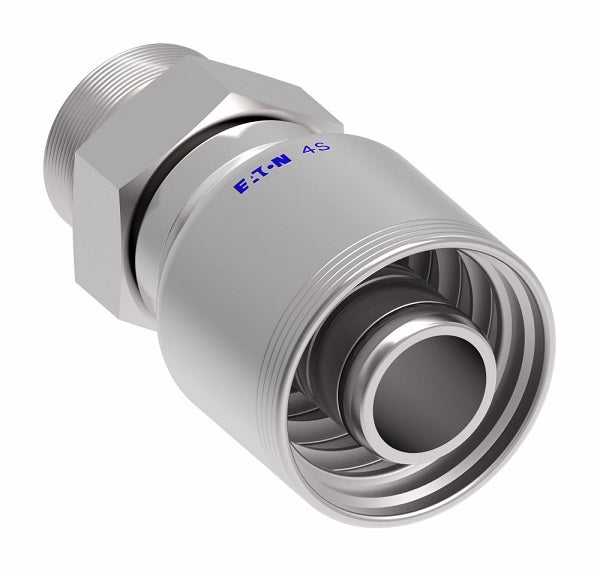

4 Wire 4S BSP Male Parallel Rigid 60° Cone Seat Crimp Fitting (BP) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $48.05
40–79 $43.45
80+ $38.34
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/4in Male BSPP
  • 1-1/4in Hose Barb
Material(s):
  • Steel
Technical Info:
Note:
  • "G" as part of thread size is ISO designation for parallel thread.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1
Dash Size DN Dash Size
4S12BP12 -12 19 -12 G 3/4-14 3.13" 1.71" 0.56" 32,0mm
4S16BP16 -16 25 -16 G 1-11 3.53" 1.97" 0.75" 41,0mm
4S20BP20 -20 31 -20 G 1-1/4-11 4.32" 2.15" 0.99" 50,0mm
