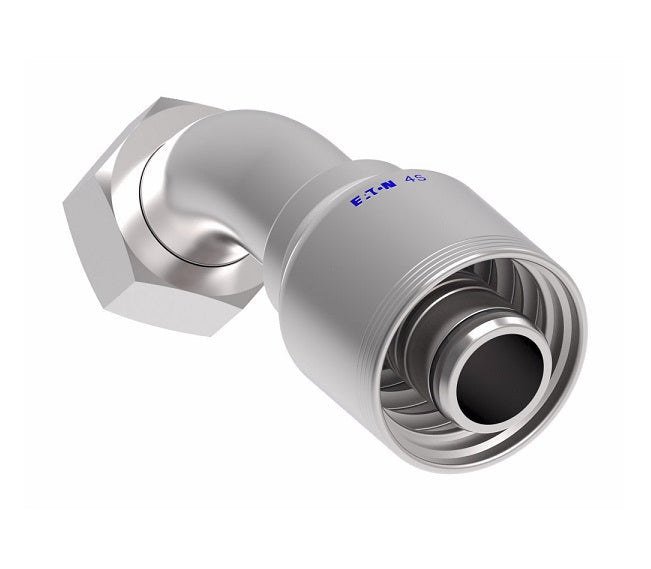

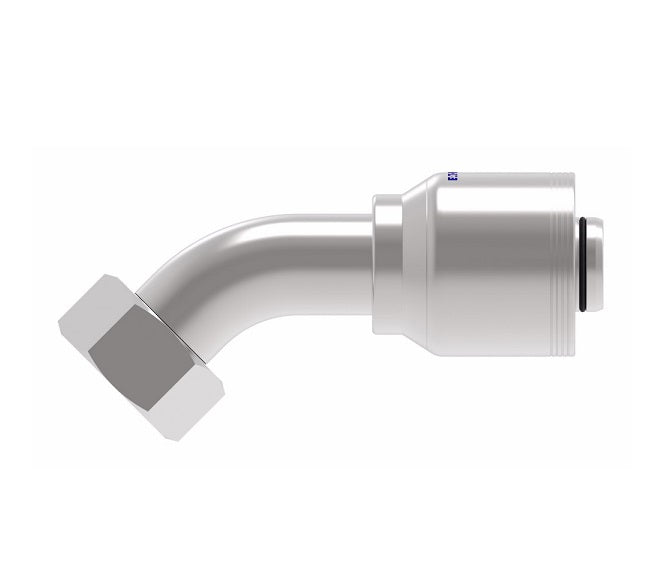

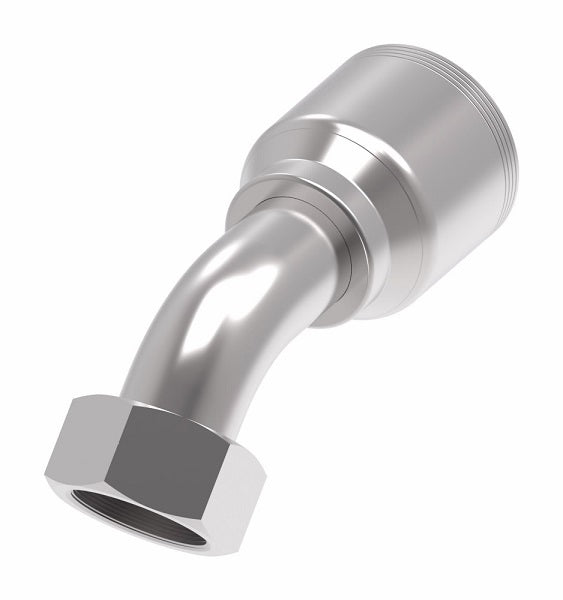

4S20BFA20 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 45° Elbow (BFA) Crimp Fitting | -20 Female BSPP Swivel x -20 Hose Barb | Steel
Aeroquip® by Danfoss
4 Wire 4S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BFA) - 45° Elbow
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $179.32 |
| 30–59 | $162.15 |
| 60+ | $143.08 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
Aeroquip® by Danfoss
4 Wire 4S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BFA) - 45° Elbow
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Technical Info: | |||
|---|---|---|---|
| Note: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Thread | A | D | EØ | H | Hex 1 |
|
| Dash Size | DN | Dash Size | |||||||
| 4S6BFA6 | -06 | - | -06 | - | - | - | - | - | - |
| 4S8BFA8 | -08 | - | -08 | G 1/2 | 3.60" | 2.43" | 0.38" | 0.98" | 1.06" |
| 4S12BFA12 | -12 | 19 | -12 | G 3/4" | 4.42" | 2.99" | 0.56" | 1.02" | 32mm |
| 4S16BFA12 | -16 | 19 | -12 | G 1" | 4.56" | 3.13" | 0.56" | 1.18" | 41mm |
| 4S16BFA16 | -16 | 25 | -16 | G 1" | 5.13" | 3.57" | 0.76" | 1.18" | 41mm |
| 4S20BFA16 | -20 | 25 | -16 | G 1-1/4" | 5.24" | 3.68" | 0.76" | 1.34" | 50mm |
| 4S20BFA20 | -20 | 31 | -20 | G 1-1/4" | 5.89" | 3.90" | 0.99" | 1.34" | 50mm |
| 4S24BFA24 | -24 | 38 | -24 | G 1-1/2" | 8.20" | 5.13" | 1.22" | 1.67" | 55mm |
| 4S32BFA32 | -32 | 51 | -32 | G 2" | 9.78" | 6.71" | 1.66" | 2.13" | 70mm |
