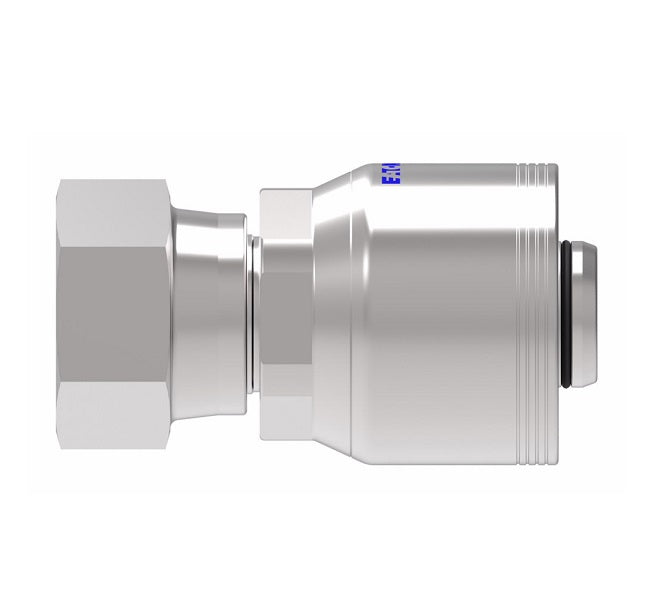

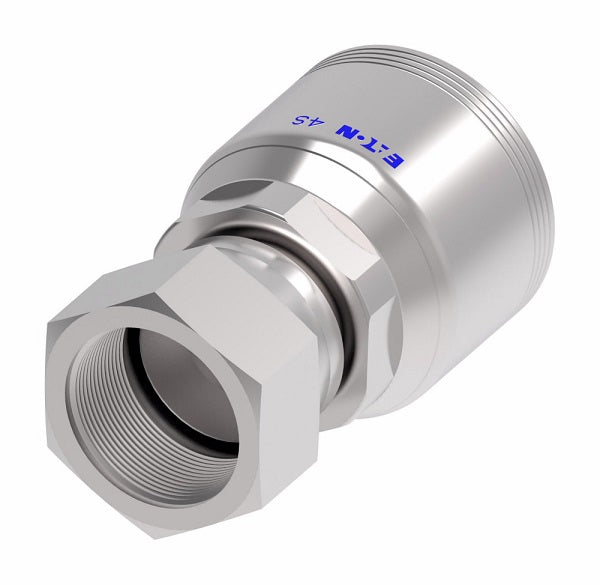

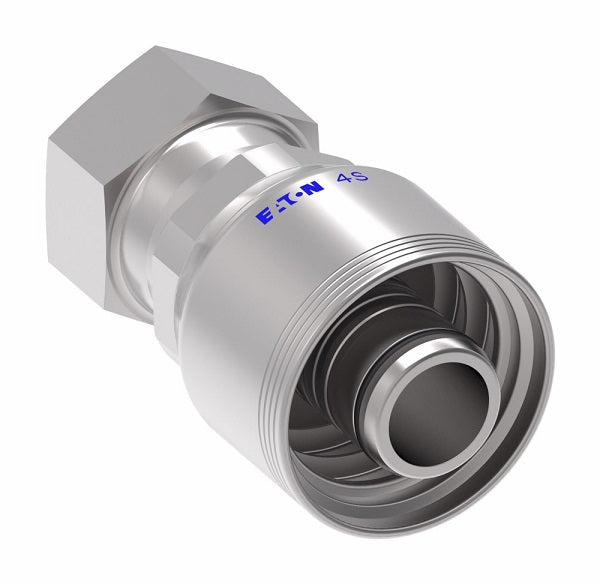

4S16KF16 Aeroquip by Danfoss | 4 Wire 4S Komatsu Female Swivel 30° Flare Seat (KF) Crimp Fitting | -16 Komatsu Female BSPP Swivel x -16 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Thread | A | D | EØ | Hex 1 |
Hex 2 |
|
| Dash Size | DN | Dash Size | |||||||
| 4S8KF8 | -08 | - | -08 | M22 x 1.5 | 2.64" | 1.57" | 0.38" | 1.06" | 1.06" |
| 4S10KF10 | -10 | - | -10 | M24 x 1.5 | 2.84" | 1.81" | 0.49" | 1.19" | 1.18" |
| 4S12KF12 | -12 | 19 | -12 | M30X1.5 | 2.46" | 1.03" | 0.56" | 1-3/16" | 36mm |
| 4S16KF16 | -16 | 25 | -16 | M33X1.5 | 2.62" | 1.06" | 0.76" | 1-5/8" | 41mm |
| 4S20KF20 | -20 | 31 | -20 | M36X1.5 | 3.37" | 1.19" | 0.99" | 1-13/16" | 46mm |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
