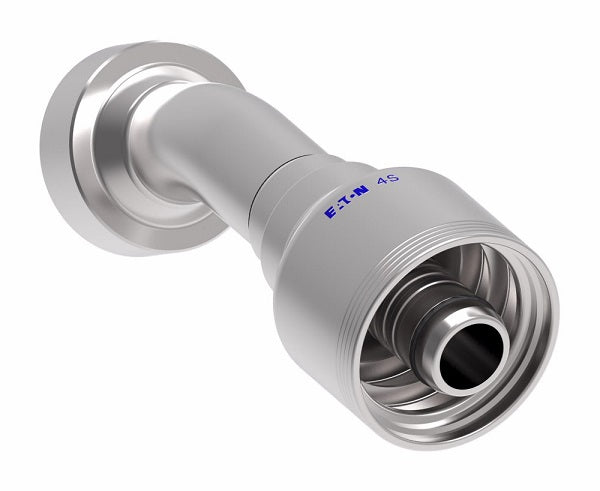

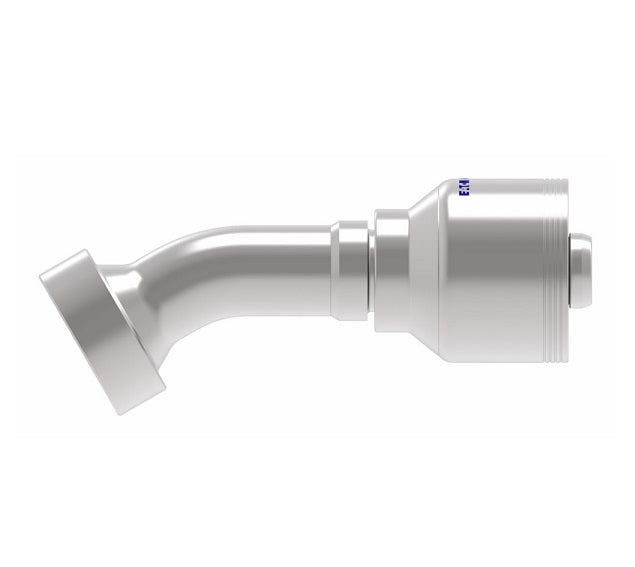

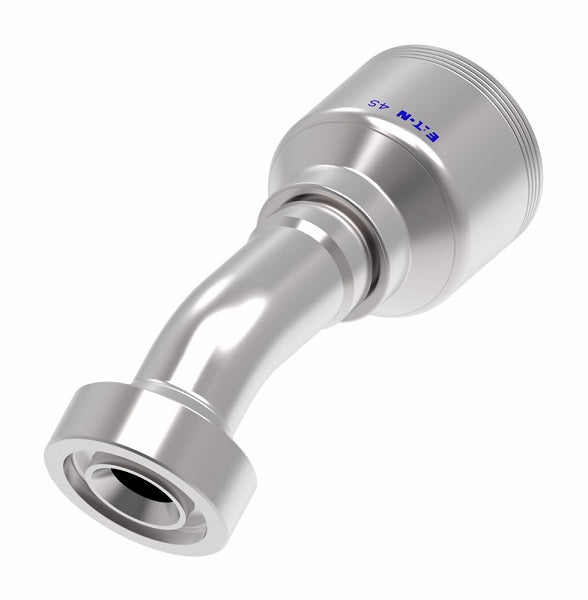

4S16CTF16 Aeroquip by Danfoss |4 Wire 4S CAT Flange 30° Elbow (CTF) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel
4S16CTF16 Aeroquip by Danfoss |4 Wire 4S CAT Flange 30° Elbow (CTF) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel
4S16CTF16 Aeroquip by Danfoss |4 Wire 4S CAT Flange 30° Elbow (CTF) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel

4S16CTF16 Aeroquip by Danfoss |4 Wire 4S CAT Flange 30° Elbow (CTF) Crimp Fitting | -16 CAT Flange x -16 Hose Barb | Steel

Sale price$134.21

Aeroquip® by Danfoss
4 Wire 4S CAT Flange Crimp Fitting (CTF) - 30° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
20–29 $126.16
30–59 $114.08
60+ $100.66
Discounts applied in cart/checkout.

Product Data:

Shape:

30 Degree

Ends Configuration:
  • 1in CAT Flange
  • 1in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
4S12CTF12 -12 19 -12 1.63" 4.89" 3.46" 0.56" 0.75"
4S16CTF16 -16 25 -16 1.87" 5.58" 4.02" 0.76" 0.85"
4S20CTF16 -20 25 -16 2.13" 6.37" 4.80" 0.76" 1.00"
4S24CTF24 -24 38 -24 2.50" 8.85" 5.78" 1.22" 1.09"
4S32CTF32 -32 51 -32 3.13" 10.52" 7.45" 1.66" 1.37"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
