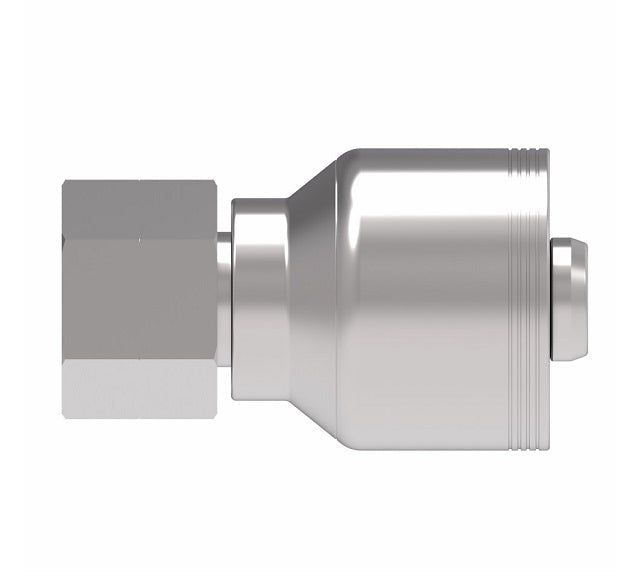

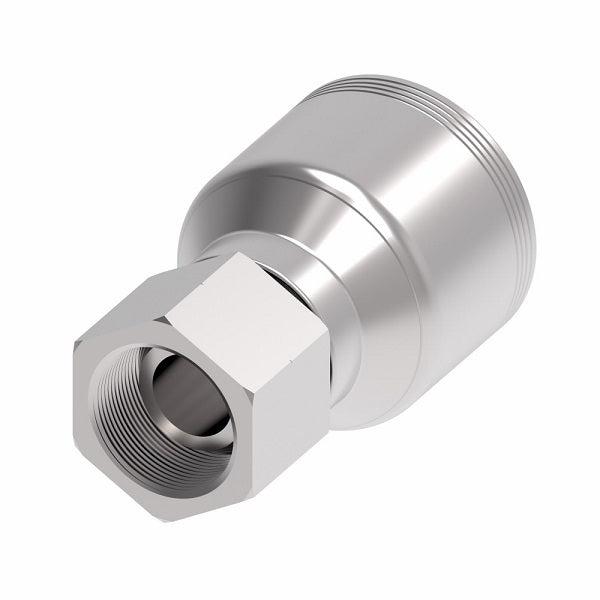

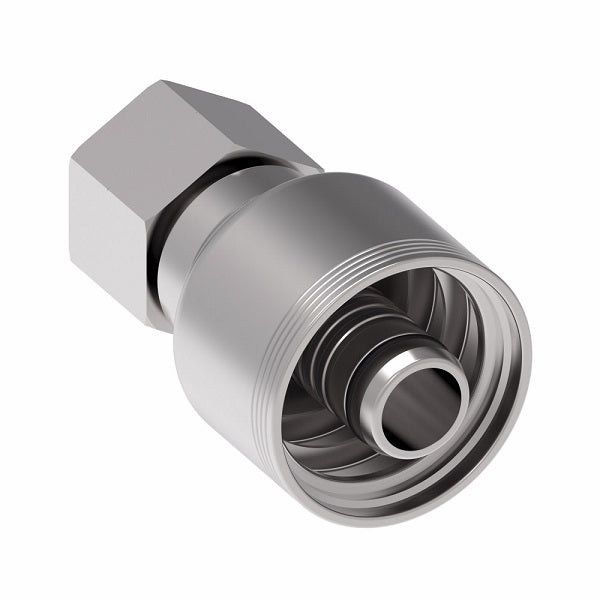

4S16BF12 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat (BF) Crimp Fitting | -16 Female BSPP Swivel x -12 Hose Barb | Steel
Aeroquip® by Danfoss
4 Wire 4S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BF) - Straight
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $101.70 |
| 30–59 | $91.96 |
| 60+ | $81.14 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
| Note: | |||
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Thread | A | D | EØ | Hex 1 |
|
| Dash Size | DN | Dash Size | ||||||
| 4S6BF6 | -06 | - | -06 | G 3/8 | 1.83" | 0.83" | 0.26" | 0.87" |
| 4S8BF8 | -08 | - | -08 | G 1/2 | 2.11" | 0.94" | 0.38" | 1.06" |
| 4S12BF12 | -12 | 19 | -12 | G 3/4" | 2.61" | 1.18" | 0.56" | 32mm |
| 4S16BP12 | -16 | 19 | -12 | G 1" | 2.70" | 1.27" | 0.56" | 41mm |
| 4S16BF16 | -16 | 25 | -16 | G 1" | 2.80" | 1.27" | 0.76" | 41mm |
| 4S20BF16 | -20 | 25 | -16 | G 1-1/4" | 2.85" | 1.29" | 0.76" | 50mm |
| 4S20BF20 | -20 | 31 | -20 | G 1-1/4" | 3.26" | 1.29" | 0.99" | 50mm |
| 4S24BF24 | -24 | 38 | -24 | G 1-1/2" | 4.64" | 1.57" | 1.22" | 55mm |
| 4S32BF32 | -32 | 51 | -32 | G 2" | 4.76" | 1.69" | 1.66" | 70mm |
