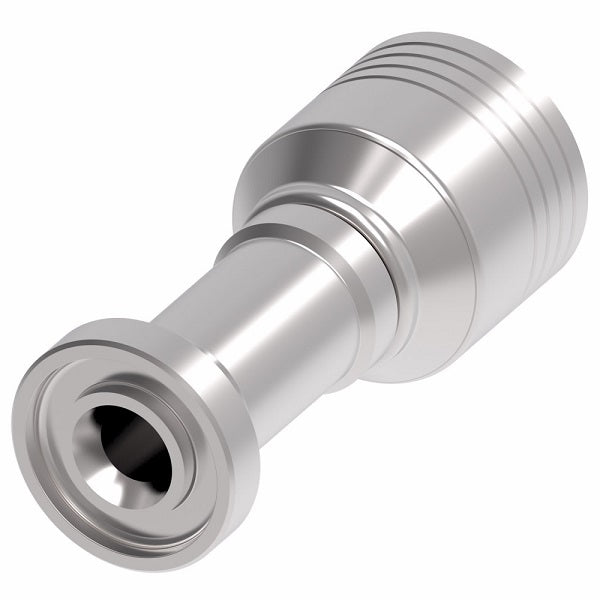

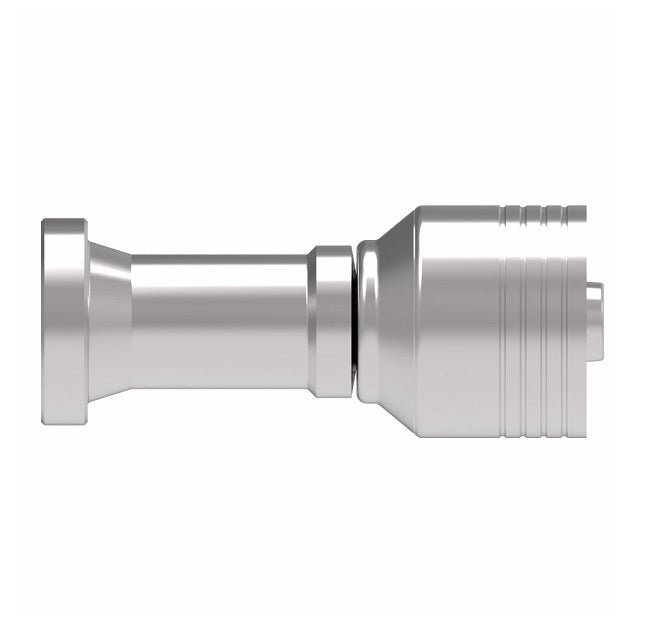

4S12FL8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Split Flange (FL) Crimp Fitting | -12 Code 61 Split Flange x -08 Hose Barb | Steel
Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FL) - Straight
Spiral Hose Fitting
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $63.73 |
| 40–79 | $57.63 |
| 80+ | $50.85 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Terminal End | Hose Size | Flange Head Diameter K Ø |
A | D | EØ | |
| Dash Size | DN | Dash Size | |||||
| 4S8FL8 | -08 | - | -08 | 1.19" | 3.13" | 2.06" | 0.38" |
| 4S12FL8 | -12 | - | -08 | 1.50" | 3.17" | 2.10" | 0.38" |
| 4S12FL10 | -12 | - | -10 | 1.50" | 3.13" | 2.10" | 0.50" |
| 4S12FL12 | -12 | 19 | -12 | 1.50" | 3.57" | 2.15" | 0.56" |
| 4S16FL12 | -16 | 19 | -12 | 1.75" | 3.55" | 2.13" | 0.56" |
| 4S20FL12 | -20 | 19 | -12 | 2.00" | 3.85" | 2.42" | 0.56" |
| 4S16FL16 | -16 | 25 | -16 | 1.75" | 3.67" | 2.11" | 0.76" |
| 4S20FL16 | -20 | 25 | -16 | 2.00" | 3.97" | 2.41" | 0.76" |
| 4S24FL16 | -24 | 25 | -16 | 2.38" | 3.83" | 2.27" | 0.76" |
| 4S16FL20 | -16 | 31 | -20 | 1.75" | 4.35" | 2.18" | 0.99" |
| 4S20FL20 | -20 | 31 | -20 | 2.00" | 4.62" | 2.45" | 0.99" |
| 4S24FL20 | -24 | 31 | -20 | 2.38" | 4.20" | 2.03" | 0.99" |
| 4S32FL20 | -32 | 31 | -20 | 2.81" | 4.13" | 1.96" | 0.99" |
| 4S24FL24 | -24 | 38 | -24 | 2.38" | 6.75" | 3.68" | 1.22" |
| 4S24FL32 | -24 | - | -32 | - | - | - | - |
| 4S32FL24 | -32 | 38 | -24 | 2.81" | 6.88" | 3.81" | 1.22" |
| 4S32FL32 | -32 | 51 | -32 | 2.81" | 6.99" | 3.92" | 1.66" |
