4GC11-12x12 by Couplamatic | Grip Crimp 4GC Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread Size ORB Male Solid | Straight | Trivalent Zinc Plating

4GC11-12x12 by Couplamatic | Grip Crimp 4GC Series Coupling | 3/4" Hose ID x 1-1/16x12 Thread Size ORB Male Solid | Straight | Trivalent Zinc Plating

Sale price$20.61

Couplamatic Systems Inc.
Grip Crimp 4GC Series - 100R12 No-Skive Couplings - ORB - Male Solid
Buy More, Save More!
Quantity Price Each
10–39 $19.37
40–79 $17.52
80+ $15.46
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4GC Series
Shape:

Straight

Ends Configuration:
  • 3/4in Male O-Ring Boss
  • 3/4in Hose Barb
Description:
  • The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

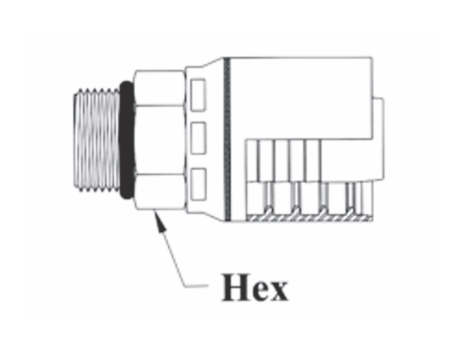

    Part Number Hose ID Thread Size Tube Size Hex Size Cross Reference Part Numbers
    Parker 71
    4GC11-12x12 3/4" 3/4" 1-1/16x12 1-1/8" 10571-12-12
    4GC11-16x16 1" 1" 1-5/16x12 1-1/2" 10571-16-16

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

    Bite to the Wire Hose Ends for:
    100R12 Four Spiral (SP580, CS-FLEX 4, DHEXR12) CS-Flex 5 Four Spiral (CS-FLEX 5)
    Description:
  • The 4GC Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•
    Part Number Hose ID Thread Size Tube Size Hex Size Cross Reference Part Numbers
    Parker 71
    4GC11-12x12 3/4" 3/4" 1-1/16x12 1-1/8" 10571-12-12
    4GC11-16x16 1" 1" 1-5/16x12 1-1/2" 10571-16-16

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
