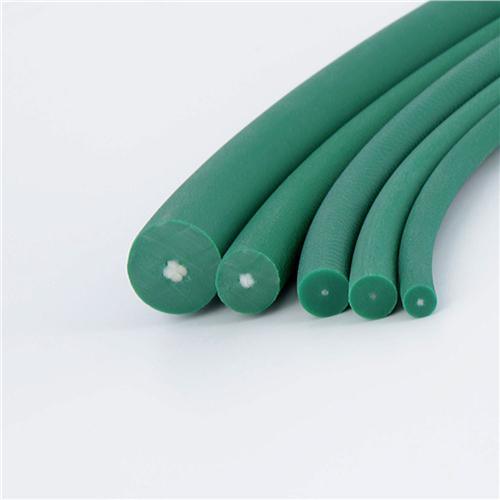

4940056 by Fenner Drives | Eagle 89 Textured Round Belting | 5mm Diameter | Reinforced | Green | 100ft
Package Quantity: 100 FT
Buy more, save moreDiscounts applied in cart/checkout.

4940056 by Fenner Drives | Eagle 89 Textured Round Belting | 5mm Diameter | Reinforced | Green | 100ft
Sale price$237.38
($2.37/ft)
| Overview: | |||
|---|---|---|---|
|
|||
| Description: | |||
Eagle Green 89 Reinforced Textured Round Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit. Since Eagle Green 89 Reinforced Textured Round Belts are not self-tensioning, they work perfectly with Fenner Drives' T-Max Automatic Belt Tensioners. |
SPECIFICATIONS
| Profile Shape: | Round | Profile Size: | 10mm, 12mm, 15mm, 18mm, 5mm, 6mm, 7mm, 8mm, 9mm |
|---|---|---|---|
| Reinforcement: | Single Polyester Cord | Color: | Green |
| Compliancy: | REACH, RoHS | Durometer: | 89A |
| Material: | Polyurethane | Special Feature | Textured |
| Package Length: | 100'/30.5m |
| Part Number | Material & Color | Dimensions Ø | Minimum Pulley Ø | Working Load @ Percent Tension | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4% | 6% | 8% | 10% | ||||||||||||
| in | mm | in | mm | lbs | N | lbs | N | lbs | N | lbs | N | lbs/ft | kg/m | ||
| 5218009 | Eagle Hyfen 85 | 3/16" | --- | 2.06" | 52mm | 2.8 | 12.5 | 6.8 | 30.2 | 11.2 | 49.8 | 15.5 | 68.9 | 0.014 lbs | 0.021 kg |
| 4940056 | Eagle Green 89 Textured | --- | 5mm | 1.97" | 50mm | 2.3 | 10.2 | 6.9 | 30.5 | 14 | 62.5 | 21.7 | 96.3 | 0.016 lbs | 0.023 kg |
