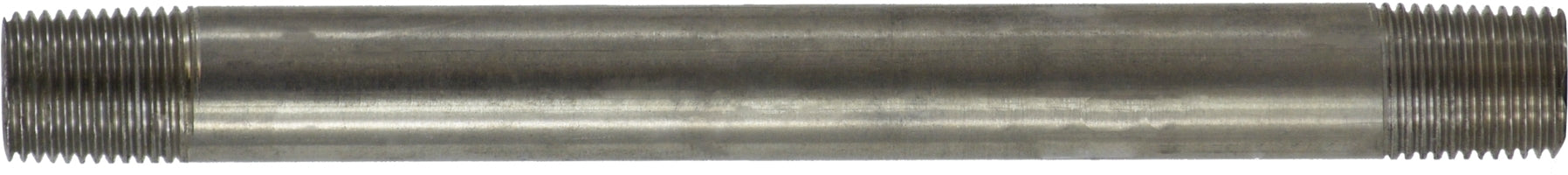

49002 by Midland | Schedule 40 Welded Nipple | 1/8" Diameter x 1-1/2" Length | 316 Stainless Steel

49002 by Midland | Schedule 40 Welded Nipple | 1/8" Diameter x 1-1/2" Length | 316 Stainless Steel

Minimum Order Quantity: 5 Units

Sale price$7.00
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • For severe environments. Of course, there are many industrial processes that require a higher level of resistance to corrosion than Type 304 can offer. For these applications, Type 316 is the answer.
  • In type 316, the nickel content is increased slightly. What distinguishes Type 316 from Type 304 is the addition of molybdenum up to a maximum of 3%.
  • Molybdenum increases the corrosion resistance of this chromium-nickel alloy to withstand attack by many industrial chemicals and solvents, and, in particular, inhibits pitting caused by chlorides. As such, molybdenum is one of the single most useful alloying additives in the fight against corrosion.
Specifications:
  • Both #304 and #316 nipples are NSF/ANSI 372 and NSF/ANSI 61 compliant.
  • Stainless steel pipe nipples are manufactured from stainless steel pipe that conforms to specification ASTM A312/SA312.
  • All stainless steel nipples conform to specification ASTM A733.
  • Threads conform to the requirements of ANSI B1.20.1.
Part Number Length Approx. Weight
(Lbs.)
48001
(48-001)		 3/4" (Close) 0.01
48002
(48-002)		 1-1/2" 0.03
48003
(48-003)		 2" 0.04
48004
(48-004)		 2-1/2" 0.05
48005
(48-005)		 3" 0.06
48006
(48-006)		 3-1/2" 0.07
48007
(48-007)		 4" 0.07
48008
(48-008)		 4-1/2" 0.09
48009
(48-009)		 5" 0.10
48010
(48-010)		 5-1/2" 0.11
48011
(48-011)		 6" 0.12
49012 7" 0.14
49013 8" 0.16
49014 9" 0.18
49015 10" 0.20
49016 11" 0.22
49017
(49-017)		 12" 0.24

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/8in Male NPT
  • 1/8in Male NPT
  • Some Ends Match
Material(s):
  • 316 Stainless Steel

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
