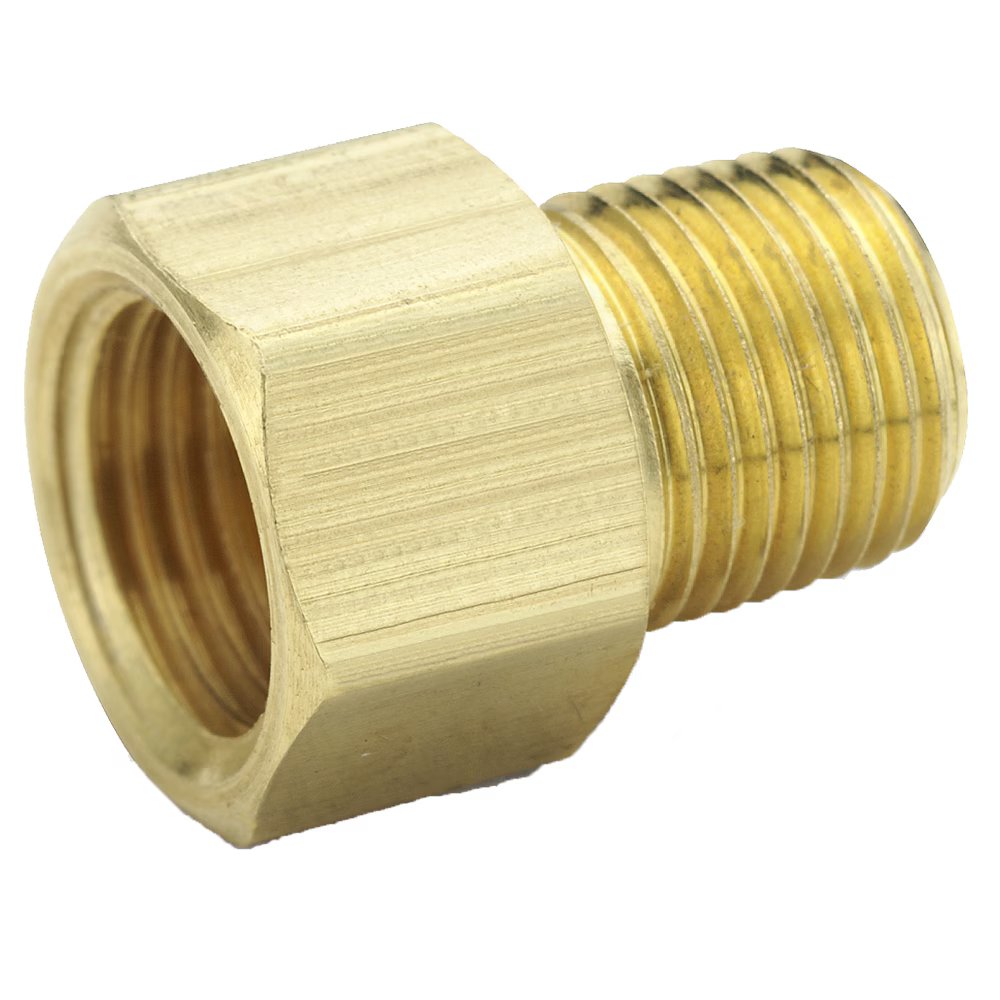

48IFHD-6-2 by Parker | Inverted Flare Fittings | Connector | 3/8" Inverted Flare x 1/8" Male Pipe Thread | 3/4" | .89" Length | Straight | Brass | Pack of 10

48IFHD-6-2 by Parker | Inverted Flare Fittings | Connector | 3/8" Inverted Flare x 1/8" Male Pipe Thread | 3/4" | .89" Length | Straight | Brass | Pack of 10

Sale price$108.31

by Parker Hannifin
Inverted Flared Fittings:Male Connector 48IFHD

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $101.81
20–59 $92.06
60+ $81.23
Discounts applied in cart/checkout.

Product Data:

Series:
  • 48IFHD Series
Shape:

Straight

Ends Configuration:
  • 3/8in Female Inverted Flare
  • 1/8in Male NPSM
Product Features:
  • All brass construction
  • UL listed for flammable liquid and gas
  • Meets functional requirements of SAE J512
  • Steel nut for economy
Markets:
  • Air Conditioning
  • Marine
  • Mobile
  • Engines
Applications:
  • Refrigerant Lines
  • Brake Lines
  • Fuel Lines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Aluminum
  • Welded Steel Hydraulic Tubing
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L Flow Diameter (D)
48IFHD-2-2 1/8" 1/8" 5/16"-28 13/32" .63" .078"
48IFHD-3-2 3/16" 1/8" 3/8"-24 15/32" .70" .125"
48IFHD-4-2 1/4" 1/8" 7/16"-24 17/32" .74" .189"
48IFHD-4-4 1/4" 1/4" 7/16"-24 9/16" .89" .189"
48IFHD-5-2 5/16" 1/8" 1/2"-20 19/32" .79" .220"
48IFHD-5-4 5/16" 1/4" 1/2"-20 19/32" .98" .220"
48IFHD-6-2 3/8" 1/8" 5/8"-18 3/4" .89" .220"
48IFHD-6-4 3/8" 1/4" 5/8"-18 3/4" 1.03" .282"
48IFHD-6-6 3/8" 3/8" 5/8"-18 3/4" 1.03" .282"
48IFHD-8-4 1/2" 1/4" 3/4"-18 29/32" 1.07" .346"
48IFHD-8-6 1/2" 3/8" 3/4"-18 29/32" 1.07" .078"
48IFHD-8-8 1/2" 1/2" 3/4"-18 29/32" 1.26" .407"
48IFHD-10-8 5/8" 1/2" 7/8"-18 1-1/16" 1.32" .533"
48IFHD-12-12 3/4" 3/4" 1-1/16"-16 1-1/4" 1.38" .626"
