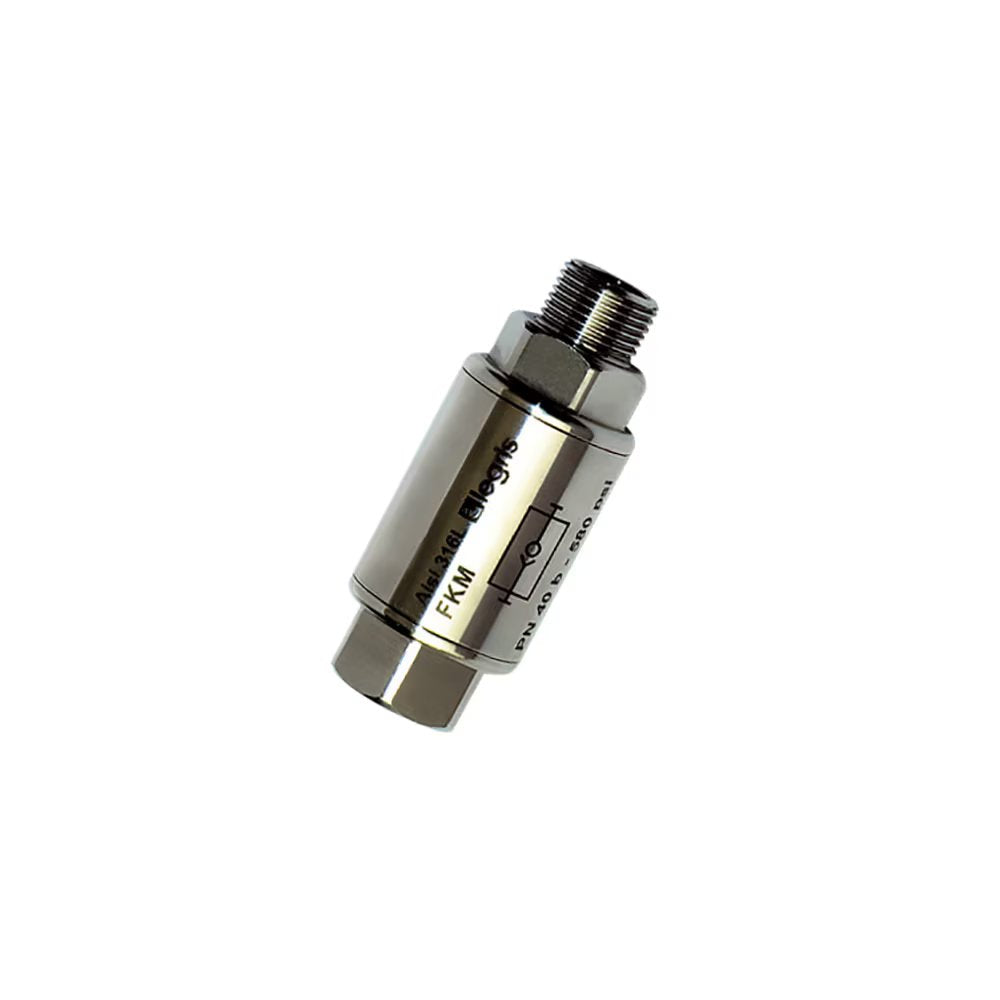

4892 21 21 by Parker | Legris Non-Return Valve | 1/2" Female/Male BSPP Thread | 79 mm Length | Straight | 316L Stainless Steel | Pack of 2
by Parker Hannifin
Stainless Steel Non-Return Valves:4892 Non-Return Valve, Supply, Female BSPP Thread/Exhaust, Male BSPP Thread
Package Quantity: 2 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $288.32 |
| 15–29 | $260.71 |
| 30+ | $230.04 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Diameter Nominal (DN) | C | F | G | L | Kg |
| 4892 10 10 | 10 mm | 1/8" | 17 mm | 22 mm | 56 mm | .090 Kg |
| 4892 13 13 | 10 mm | 1/4" | 17 mm | 22 mm | 58 mm | .082 Kg |
| 4892 17 17 | 15 mm | 3/8" | 22 mm | 30 mm | 75 mm | .191 Kg |
| 4892 21 21 | 15 mm | 1/2" | 24 mm | 30 mm | 79 mm | .210 Kg |
| 4892 27 27 | 20 mm | 3/4" | 32 mm | 42 mm | 84 mm | .313 Kg |
| 4892 34 34 | 25 mm | 1" | 38 mm | 42 mm | 102 mm | .514 Kg |
