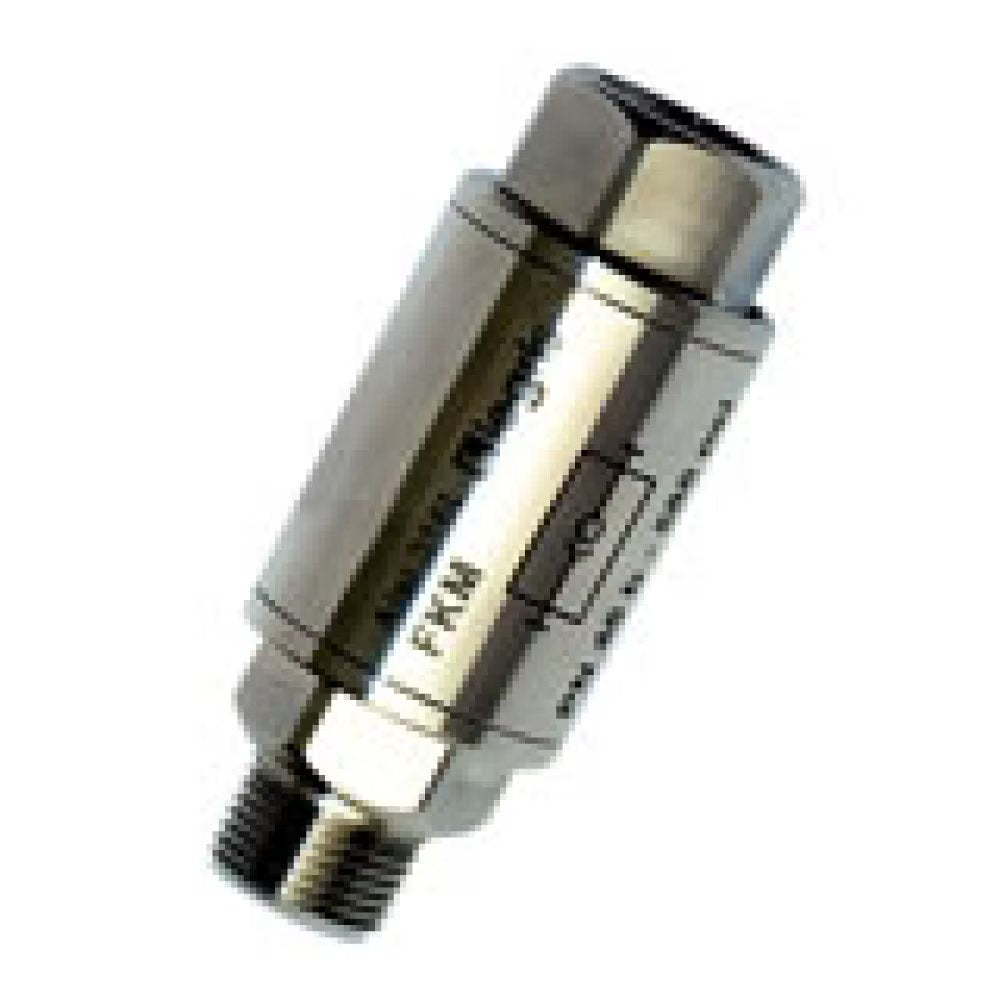

4891 27 27 by Parker | Legris Non-Return Valve | 3/4" Male/Female BSPP Thread | 84 mm Length | Straight | 316L Stainless Steel
by Parker Hannifin
Stainless Steel Non-Return Valves:4891 Non-Return Valve, Supply, Male BSPP Thread/Exhaust, Female BSPP Thread
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $184.07 |
| 30–59 | $166.45 |
| 60+ | $146.87 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Diameter Nominal (DN) | C | F | G | L | Kg |
| 4891 10 10 | 10 mm | 1/8" | 17 mm | 22 mm | 56 mm | .084 Kg |
| 4891 13 13 | 10 mm | 1/4" | 17 mm | 22 mm | 58 mm | .082 Kg |
| 4891 17 17 | 15 mm | 3/8" | 22 mm | 30 mm | 75 mm | .191 Kg |
| 4891 21 21 | 15 mm | 1/2" | 24 mm | 30 mm | 79 mm | .210 Kg |
| 4891 27 27 | 20 mm | 3/4" | 32 mm | 42 mm | 84 mm | .300 Kg |
| 4891 34 34 | 25 mm | 1" | 38 mm | 42 mm | 102 mm | .519 Kg |
